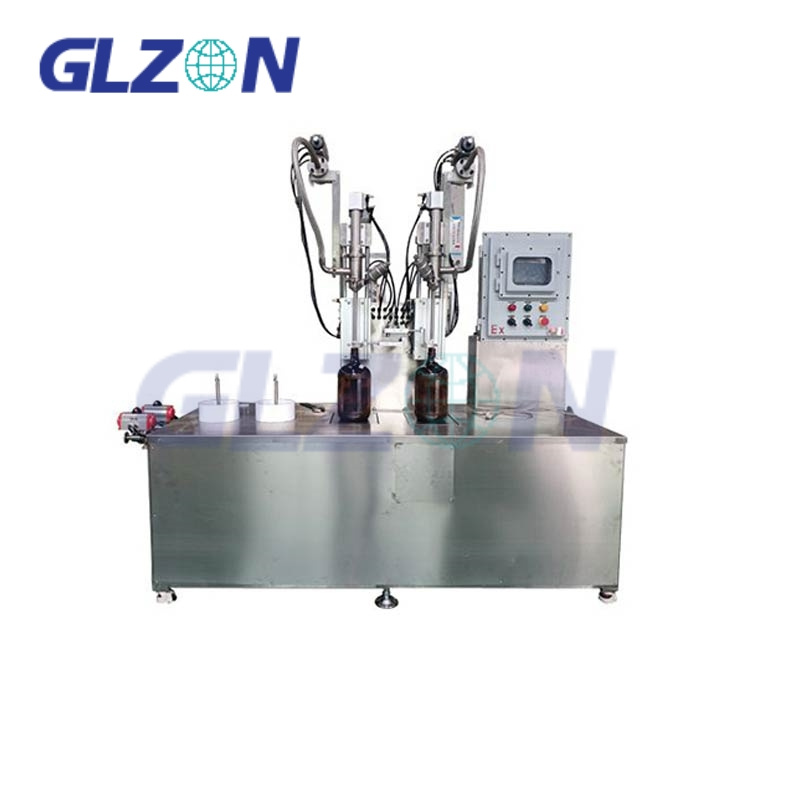

LubeFill Pro LF-1000 SeriesSemi-Automatic Tabletop Lubricating Oil Filling SystemPrecision Gravimetric Filling • 25 Bottles/Hr • ±0.1% Accuracy • ATEX/FDA Dual Compliance • Zero-Drip TechnologyCore Te
Semi-Automatic Tabletop Lubricating Oil Filling System
Precision Gravimetric Filling ? 25 Bottles/Hr ? ±0.1% Accuracy ? ATEX/FDA Dual Compliance ? Zero-Drip Technology
| Parameter | LF-1010 (Standard) | LF-1020X (ATEX) | LF-1030V (High-Viscosity) |
|---|---|---|---|
| Capacity Range | 1-10L (±0.1%) | 1-10L (±0.15%) | 1-10L (±0.2%) |
| Throughput | 25 Bottles/Hr | 22 Bottles/Hr | 20 Bottles/Hr |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.2% |
| Viscosity Range | 50-500,000 cP | 100-300,000 cP | 5,000-2,000,000 cP |
| Filling Technology | Gear Pump + Coriolis Meter | ATEX Diaphragm Pump | Heated Piston Pump |
| Material Contact | 316L SS (Ra<0.8μm) | Hastelloy C276 | Tungsten Carbide (2,200 Hv) |
| Drip Control | TripleSeal?:<br>1. Vacuum Suction (-0.8bar)<br>2. Laser-Cut Capillary Break<br>3. PTFE Nano-Coating | Spring-Loaded Nozzle | Ultrasonic Scraper |
| Static Dissipation | Ionized Air Curtain<br>? 10? ions/cm3 Output<br>? <0.5kV Surface Charge<br>? Spark Detection (0.1s Shutdown) | SIL-2 Certified | Conductive Path (<10? Ω) |
| Container Types | HDPE Bottles ? Jerrycans ? Metal Pails<br>Lid: Screw Cap ? DIN ? Tri-Clamp | UN-Certified Containers | Safety Cans |
| Footprint | 600×450×500mm | Same | Same |
| Power | 100-240V AC, 750W | 24VDC Ex ia | 100-240V AC, 900W |
| Certifications | CE, ISO 9001 | ATEX Zone 22 | FDA 21 CFR 178.3570 |
Performance Validation:
| Oil Type | Viscosity | Accuracy | Residual |
|---|---|---|---|
| Engine Oil SAE 5W-30 | 68 cP | ±0.07% | <0.05ml |
| Gear Oil 80W-90 | 150,000 cP | ±0.12% | <0.08ml |
| Hydraulic Fluid | 46 cSt | ±0.09% | <0.06ml |
| Technology | Function | Performance |
|---|---|---|
| Vacuum Suction | -0.8bar ±0.05bar | 100% Droplet Capture |
| Capillary Edge | Femtosecond Laser Cutting | 0 Drip Formation |
| Non-Stick Coating | PTFE Nano-Layer (Ra<0.1μm) | 0% Oil Retention |
Automotive & Machinery
| Challenge | Innovation | Performance |
|---|---|---|
| Foaming | Vacuum Submerged Filling | 0% Air Entrainment |
| Oxidation | Nitrogen Blanketing (O?<0.1%) | 0% Viscosity Change |
| Cross-Contamination | Quick-Change Cartridges | <0.01ppm Carryover |
Food & Pharma
Hygienic Design:
Compliance:
| Standard | Technical Solution |
|---|---|
| NSF H1 | Certified Lubricant Path |
| 3-A Sanitary | Tri-Clamp Connections |
Mining & Heavy Industry
| Feature | ATEX Solution |
|---|---|
| Explosion Safety | Nitrogen Inerting (O?<5%) |
| Dust Protection | IP65 Sealed Enclosure |
| Corrosion Resistance | Hastelloy C276 Flow Path |
1. Manual Container Placement → 2. Auto-Nozzle Alignment (±1mm) → 3. Nitrogen Purging (O?<0.3%) → 4. Precision Filling (±0.1%) → 5. Vacuum Retract → 6. Torque Capping (10-50 N·m) → 7. Weight Verification → 8. Labeling
Cycle Time: 144 seconds/bottle
Precision & Reliability
? Zero-Waste Architecture: | **Technology**| **Performance**| |-------------------------|------------------------| | Vacuum Suction | -0.8bar ±0.05bar | | Laser-Cut Edge | 0 Drip Guarantee| | PTFE Coating | 0% Residual Adhesion| ? Industrial Durability: - Tungsten Carbide Components (2,200 Hv) - IP66 Washdown Protection - 100,000-Hour MTBF ? Smart Control: 1. Siemens PLC with Adaptive PID 2. Recipe Storage: 500+ 3. Predictive Maintenance Alerts
? ATEX 2014/34/EU Zone 22 ? FDA 21 CFR 178.3570 ? ISO 9001:2015
ExxonMobil Lubricants Plant:
"After implementing LF-1020X:
Output: 15 → 25 Bottles/Hr (+67%)
Oil Waste: 2.8% → 0.1%
Drip Loss: 1.5L/day → 0.02L/day
ROI Period: 5 months"
APPLICABLE BARREL TYPE
