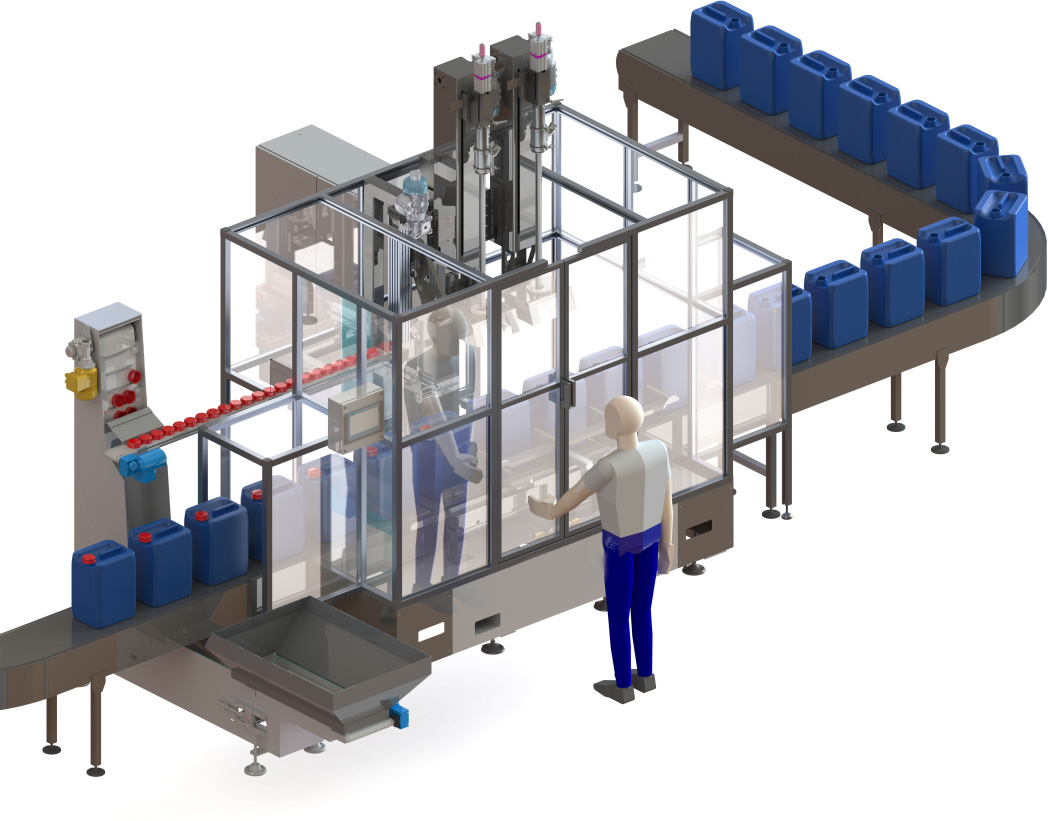

The automatic canisters filling machine GZM is one of our advanced filling solutions for liquid or viscous products. It is indicated for the filling of 1 to 30 liters round or rectangular based metall
Intelligent Precision for Industrial Liquid Packaging
Shanghai Guangzhi Automation’s GZM Series Automatic Canisters Filling Machine delivers high-speed, high-accuracy filling for containers ranging from 1L to 200L, with gravimetric accuracy up to ±0.1%. Engineered for chemicals, food, pharmaceuticals, and lubricants, this system integrates AI vision, robotic handling, and spill-containment technologies to achieve 360+ canisters/hour throughput while eliminating manual intervention. Compliant with ATEX, FDA, and GMP standards, it ensures zero contamination and 99.9% operational reliability in harsh environments.
AI Vision Positioning System
3D LiDAR + CCD cameras scan canister orientation/dimensions in real-time, enabling automatic nozzle alignment and mixed-SKU handling (e.g., round, square, or irregular containers).
Visual Addressing Robotics auto-switch filling nozzles for 1–4 material types without downtime.
Dual-Stage Gravimetric Filling
Two-speed flow control (fast → precision mode) with load-cell feedback (±0.1% accuracy).
Retractable lances with nitrogen purging prevent oxidation and dripping (residual loss <0.02%).
Corrosion-Resistant Hygienic Design
Material Contact Parts: 316L stainless steel / PTFE (FDA/EC1935 compliant).
IP66 washdown-ready for sterile zones (optional GMP/ATEX upgrades).
IoT-Enabled Control Hub
15" HMI touchscreen with 30+ recipe presets, OEE tracking, and remote diagnostics via Guangzhi SmartFill OS.
| Parameter | Specification | Customizable Options |
|---|---|---|
| Filling Range | 1–200 L/canister | 5 ml–1,000 L |
| Throughput | 360+ units/hour (200L) | 700 units/hour (5L) |
| Accuracy | ±0.1% (gravimetric) | ±0.5% (volumetric) |
| Material Compatibility | Liquids (1–500,000 cP), Pastes, HazChem | Granules, Foaming Liquids |
| Power Supply | 380V/50Hz, 3.5–6.5 kW + 0.7 MPa air | 220V/60Hz available |
| Canister Types | Plastic/Metal Jerrycans, IBCs, Drums | Custom clamping (?80–650 mm) |
| Safety Rating | Ex d e ib mbⅡBT4 Gb (standard) | ATEX Zone 1/21, ISO 13849-1 |
| Footprint (L×W×H) | 2,400 × 1,400 × 1,650 mm | Compact/Mobile configurations |
Chemicals/Lubricants:
Hazardous solvent filling with static control (<10? Ω resistance) and N? blanketing.
Food & Pharmaceuticals:
CIP/SIP-ready models for oils, syrups, vaccines (GMP Grade B/C).
Coatings & Adhesives:
High-viscosity resin filling (500,000 cP) with anti-crystallization lances.
E-commerce Logistics:
Automated 1–5L bottle filling + capping (25+ units/minute).
| Metric | GZM Series | Traditional Machines |
|---|---|---|
| Labor Cost | 80% reduction (1 operator) | 3–5 operators required |
| Spill/Contamination | Zero leakage (drip recovery) | 5–10% product loss |
| Changeover Time | <3 minutes (tool-free) | 15–45 minutes |
| ROI Period | 6–12 months | 18–36 months |
Upgrade Kits:
Explosion-Proof: ATEX Group IIC T6 for flammable vapors.
Cryogenic Filling: -50°C capability for pharmaceuticals.
Automated Capping: Integrated screw-capping/foil sealing.
Safety Ecosystem:
Laser intrusion scanners + emergency stops (ISO 13849-1 PLd).
Vapor sensors and spill containment basins.
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
