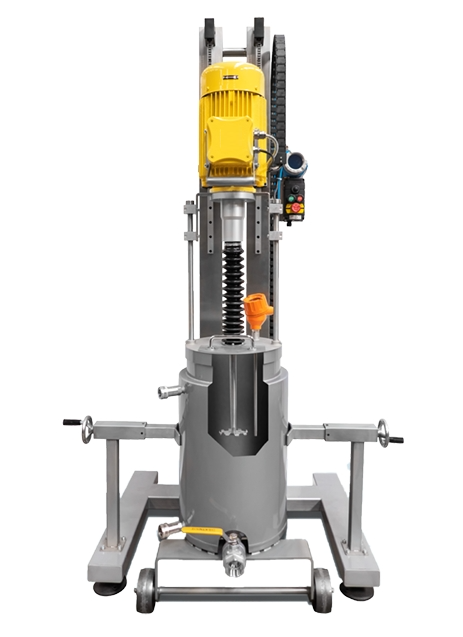

DISPERMIX
Industrial DISPERMIX™ achieves 0.1μm particle dispersion at 10,000L batch size. Multi-stage shear, vacuum deaeration & AI viscosity control. CE/ATEX/FDA compliant.
- Brand： glzon
- Model： GZM
Product Essence: Where Science Meets Industrial Scalability
Shanghai Guangzhi’s DISPERMIX? redefines precision dispersion – delivering <0.1μm particle size distribution for pigments, CNTs, ceramics, and pharmaceuticals in batches up to 10,000L. Featuring tri-axial shear technology, dynamic vacuum deaeration (≤-0.95 bar), and AI-driven rheology control, it achieves 50% faster dispersion cycles while eliminating agglomerates, foam, and temperature spikes in coatings, batteries, and advanced materials production.
Core Technology Innovations
1. Tri-Axial Shear Architecture
| Shear Mechanism | Function | Performance |
|---|---|---|
| Radial Rotor-Stator | Macro-agglomerate breakup | 25m/s tip speed (≥50,000 s?1) |
| Axial Ultrasonic | Nanoparticle de-agglomeration | 20kHz @ 200μm amplitude |
| Tangential Hydraulic | Laminar flow homogenization | Reynolds >10,000 (turbulent) |
| AI Shear Optimization | Real-time viscosity adaptation | ±5% torque control |
2. Intelligent Process Control
Temperature Management:
Cooling Method Precision Application Jacketed Vessel ±0.5°C Temperature-sensitive APIs Peltier Modules ±0.1°C Nano-emulsions Cryogenic Option -50°C to 200°C Battery slurries
3. Scalable Shear Consistency
Reynolds Similitude Scaling:
Lab to production: Ke >0.95 (power/volume ratio)
Particle size deviation <5% from 1L to 10,000L
Self-Cleaning Design:
CIP at 3m/s wall shear stress
Wipe-clean rotor geometry (Ra≤0.4μm)
Technical Specifications
| Model | Lab Series | Industrial Series | ATEX Series |
|---|---|---|---|
| Batch Size | 0.1-50L | 100-10,000L | 50-5,000L |
| Particle Size (D90) | 0.1-1μm | 0.2-5μm | 0.3-10μm |
| Power Density | 5-50 kW/m3 | 1-10 kW/m3 | 2-15 kW/m3 |
| Vacuum Level | ≤-0.99 bar | ≤-0.95 bar | ≤-0.92 bar |
| Viscosity Range | 1-500,000 cP | 10-200,000 cP | 50-100,000 cP |
| Material Contact | 316L SS + ZrO? | 316L SS + WC-Co | Hastelloy C22 |
| Temp Control | ±0.1°C | ±0.5°C | ±1.0°C |
| Power | 380V/5.5kW | 380V/15-250kW | 24VDC Ex ia |
| Footprint (L×W×H) | 1200×800×1800mm | Custom | Custom |
Industry-Specific Engineering
Lithium Battery Slurries
Anti-sedimentation pulsed mixing
In-line resistivity monitoring (ISO 15156)
Pharmaceutical Nano-Suspensions
GMP-compliant (EU Annex 1)
Single-use contact parts option
Automotive Coatings
Colorimetric dispersion control (ΔE<0.3)
VOC abatement during mixing
CNT Composites
Static dissipation (<10? Ω)
Low-shear nanotube preservation
Smart Process Ecosystem
10" HMI with PAT (Process Analytical Technology)
Real-Time Monitoring:
Particle size (laser diffraction)
Viscosity-shear rate curves
Zeta potential
AI Optimization:
Parameter AI Action Viscosity spike Auto-reduce rotor speed Agglomerate detect Increase ultrasonic amplitude Temp > threshold Activate cryogenic cooling Blockchain Batch Tracking:
Raw material → dispersion parameters → QC release
Operational Impact
Global Battery Anode Producer:
Reduced graphite particle size from 25μm to 3.2μm (D90)
Increased slurry stability from 8h to 72h
ROI in 11 months via reduced solvent use & energy
Certifications & Upgrades
Global Compliance:
ATEX 2014/34/EU (Zone 1/21)
FDA 21 CFR 210/211
CE EN 13849-1 (PL d)
ISO 19458 (Cleanliness)
Advanced Modules:
| Module | Function |
|---|---|
| Inline Particle Analyzer | Real-time D10/D50/D90 tracking |
| Robotic Sample Handler | Auto QC sampling every 5 min |
| AR Process Visualization | HoloLens dispersion mapping |
| Carbon Footprint Optimizer | kWh/kg dispersion analytics |
Support & Service
24/7 Materials Science Support:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
Rotor-stator assemblies
Ultrasonic transducers
Seals & bearings
Dispersion Process Audit:
Particle size reduction efficiency
Energy consumption optimization
APPLICABLE BARREL TYPE
