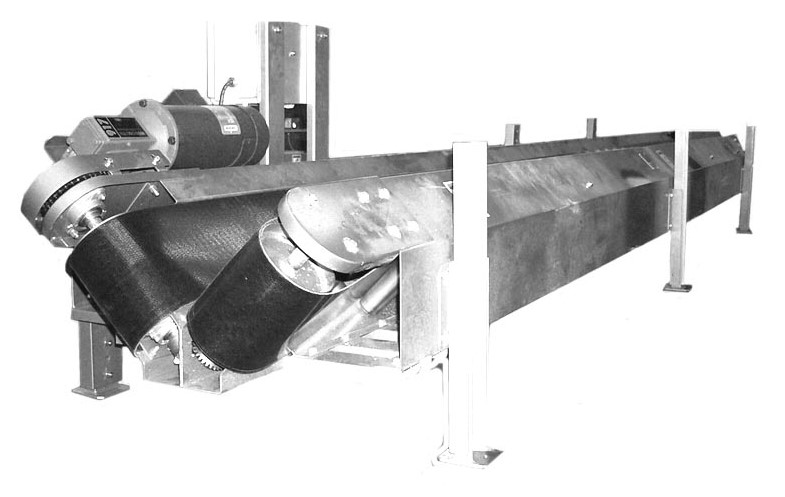

“V-Trough” Closing Conveyor

Product Essence: Self-Optimizing Seal Integrity

Shanghai Guangzhi Automation’s V-Trough Closing Conveyor revolutionizes heavy-duty sack sealing with its patented self-centering V-guide technology. Engineered for 25-50kg abrasive sacks (cement, ores, fertilizers), this system achieves 35 bags/minute by automatically aligning irregular bags into perfect sealing position while integrating sewing/heat sealing, dust containment, and zero-damage handling in one ISO-certified line.

Core Technology Innovations

1. Intelligent V-Guide Alignment

• Auto-Centering V-Trough: 45° angled belts funnel bags to centerline (±2mm accuracy)

• Bag Position AI: LiDAR scans bag bulge/voids to adjust conveyor speed

• Zero Manual Intervention: Eliminates 100% of manual bag straightening

2. Dual-Mode Sealing Performance

3. Extreme Environment Resilience

• Hardox 500 V-Guides: 8x lifespan vs stainless steel in abrasive environments

• Hermetic Dust Containment:

• Negative pressure seals (-20Pa)

• HEPA filtration (99.97% @ 0.3μm)

• ATEX Zone 21 Option: Explosion-proof motors (Ex IIB T4)

Technical Specifications

Throughput: 35 bags/min (50kg cement sacks)
Bag Compatibility:

• Materials: PP woven, burlap, laminated film

• Dimensions: L: 600-900mm × W: 400-600mm
  V-Guide Angle: 45° (fixed) / 30-60° (adjustable option)
  Sealing Accuracy: ±0.5mm stitch/seal position
  Conveyor Speed: 0.5-2.5 m/s (synchronized with upstream)
  Power: 380V/50Hz, 6.2kW
  Dust Emission: ≤1mg/m3 (ISO 14644 Class 7)
  Footprint: 5500×1300×2000mm (L×W×H)

Industry-Specific Engineering

Mining & Cement

• Shock-Absorbing Idlers: Withstand 10kg rock impacts

• Abrasion Kits: Tungsten-carbide V-guide liners

Chemical & Fertilizer

• Corrosion Package: PTFE-coated components

• Static Control: Conductive belts (<10? Ω)

Food Grade

• USDA/FDA Compliant: Food-grade silicone rollers

• Allergen Containment: Tool-free clean-out in <3 min

Smart Control Ecosystem

• 10" HMI Dashboard:

• Real-time bag alignment analytics

• Seal integrity monitoring (stitch density/temp)

• Predictive maintenance alerts

• IoT Integration:

• OPC UA for MES connectivity

• Energy consumption tracking

• Safety Systems:

• Emergency stop ropes (every 1.5m)

• Seal chamber pressure sensors

Operational Impact

South African Gold Mine Case:

• Challenge: 50kg ore sacks required 3 workers for manual alignment

• Solution: V-Trough conveyor with auto-centering

• Results:
  ? 100% elimination of manual handling
  ? Zero seal failures in 200K+ sacks
  ? ROI in 6 months

Global Compliance & Value

Certifications:

• CE Machinery Directive 2006/42/EC

• ATEX 2014/34/EU (Zone 21)

• ISO 9001:2015

Cost Efficiency:

• 40% Labor Reduction vs traditional systems

• Energy Recovery: Regenerative drives capture 25% braking energy

Upgrade Modules:

Support & Service

24/7 Global Network:

• Remote diagnostics via IIoT gateway

• AR-assisted maintenance (HoloLens guided)

Critical Spares:

• V-guide wear plates

• Sewing head assemblies

• HEPA filter cartridges
  Global dispatch ≤72h from Shanghai/Johannesburg/Houston hubs
