The Drum and IBC filling machine
Guangzhi’s Dual-Purpose Drum & IBC Filler: Automate 200L drum/1,000L IBC filling at 40 units/hour with ±0.1% accuracy. ATEX/FDA/UN certified.
- Brand： glzon
- Model： GZM_1000L
Product Introduction: Dual-Purpose Drum & IBC Filling System
Precision Filling for Industrial Containers with Zero Spillage

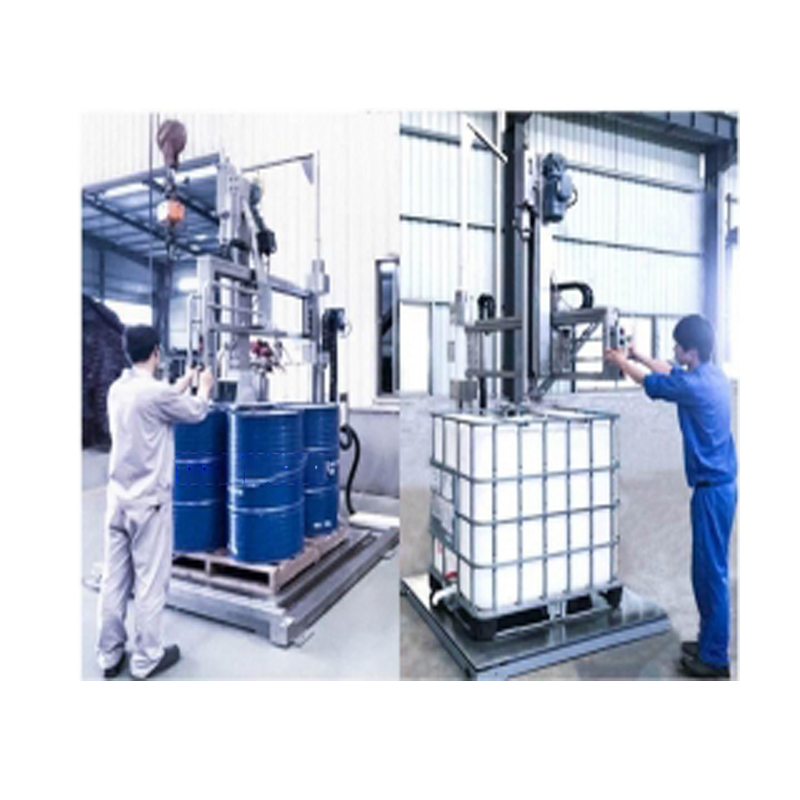

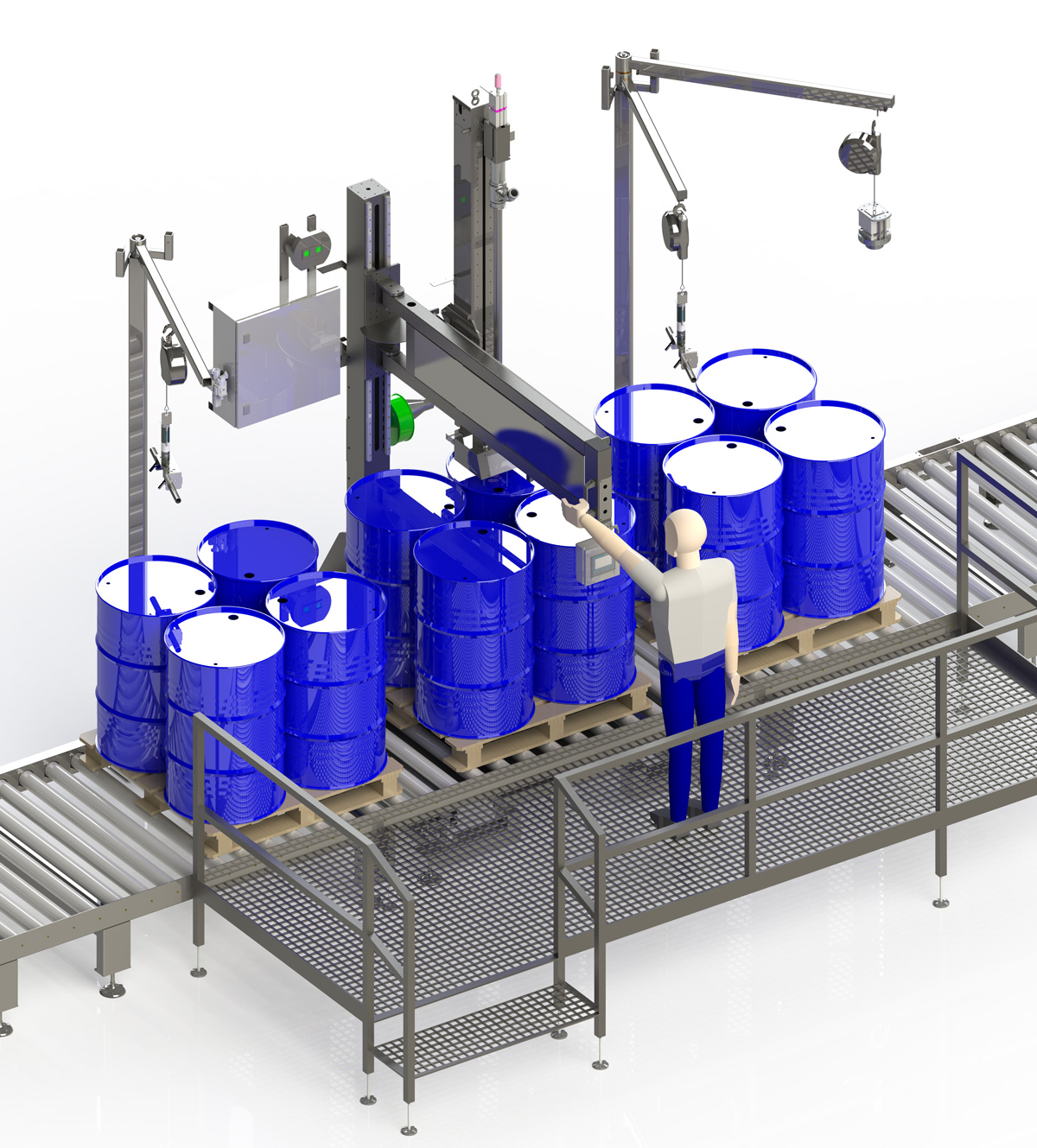

Shanghai Guangzhi Automation’s Drum & IBC Filling Machine delivers end-to-end automation for 55-gallon drums (200L) and 1,000L IBC totes with ±0.1% gravimetric accuracy. Integrating AI-controlled flow management and robotic container handling, it achieves 40 drums/hour or 15 IBCs/hour throughput while eliminating manual labor – engineered for chemicals, food-grade liquids, and hazardous materials requiring UN-certified containment.
Core Technologies
AI Gravimetric Filling
Radar level sensors + load cells (accuracy: ±0.1% of setpoint)
Auto-viscosity adjustment (1–500,000 cP) with turbulent/laminar flow modes
Robotic Container Handling
6-axis robot positions drums/IBCs (±0.5mm)
Quick-change tooling: drum clamps (?400–650mm) / IBC twist-lock heads
Spill-Containment System
Retractable filling lances with nitrogen purging
Drip trays + vacuum recovery (99.8% residual capture)
Corrosion-Resistant Build
316L stainless steel contact parts (FDA/EC1935 compliant)
IP66 washdown-ready for food/pharma (GMP option)
Smart Control Hub
15" IoT HMI with recipe management (500+ formulas)
OEE tracking and predictive maintenance alerts
Technical Specifications
| Parameter | Drums (200L) | IBC Totes (1,000L) |
|---|---|---|
| Filling Accuracy | ±0.1% (max 200kg) | ±0.15% (max 1,200kg) |
| Throughput | 40 units/hour | 15 units/hour |
| Filling Speed | 30–150 L/min | 80–400 L/min |
| Container Types | Steel/plastic/fiber drums | Stainless/poly IBCs |
| Viscosity Range | 1–500,000 cP | 1–200,000 cP |
| Sealing Options | Bung caps, N? blanketing | Twist locks, foil sealing |
| Power Supply | 380V/50Hz, 6.5 kW + 0.8 MPa air | |
| Footprint (L×W×H) | 7,200 × 4,800 × 3,500 mm |
Industry Applications
Chemical Processing:
Hazardous solvent filling (ATEX Zone 1 certification)
Drum grounding: 10? Ω resistance (static control)
Food & Edible Oils:
USDA-compliant filling of syrups/oils (CIP/SIP ready)
Pharmaceuticals:
GMP Grade B/C areas with sterile lance retraction
Paints & Coatings:
Pigment homogenization during filling
Operational Advantages
| Benefit | Impact |
|---|---|
| Labor Reduction | Replaces 8 workers; 24/7 operation |
| Spill Savings | Recovers $18,000+/year in product |
| Changeover Time | <5 mins (automatic tool switching) |
| Compliance | Meets UN 4G/M2, ADR/RID stack standards |
| Integration | Syncs with AGVs, labeling, palletizing |
Safety & Customization
Standard Protection:
Vapor detectors, emergency stops, spill containment basin
Laser guarding (ISO 13849-1 PLd)
Upgrade Modules:
ATEX explosion-proof package (Group IIC T6)
Cryogenic filling (-50°C)
Net weight filling for foaming liquids
