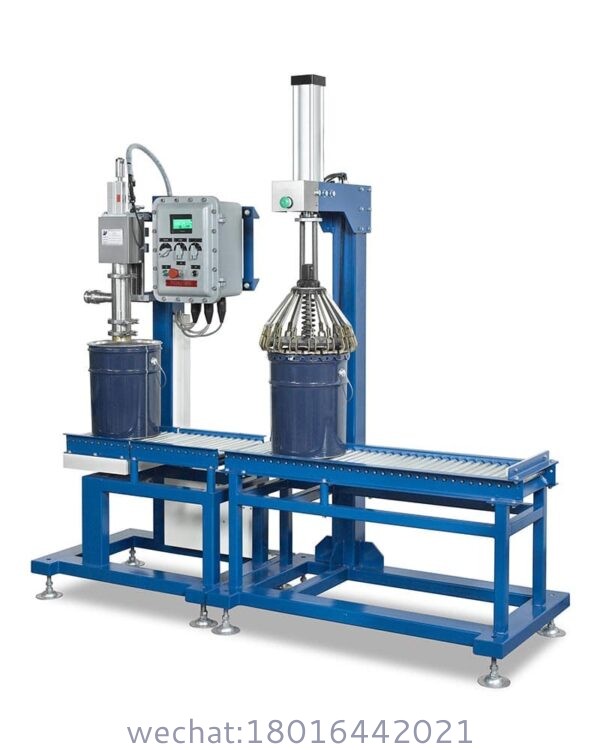

Semi Auto Metal Pail Filling Machine
Guangzhi’s semi-auto metal pail filler achieves ±0.25% accuracy for paints/chemicals. ATEX-certified, 70% labor reduction & <0.1% waste. Free demo!
- Brand： glzon
- Model： GZM_30L

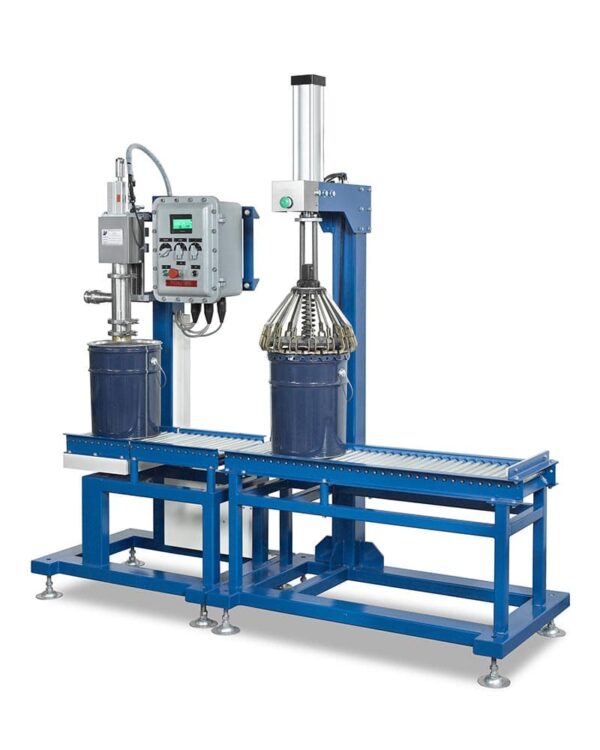

Semi-Automatic Metal Pail Filler GZ-SMP500 Series
*Heavy-Duty Gravimetric Filling for Steel Pails (10-50L)*
Shanghai Guangzhi Automation’s GZ-SMP500 delivers ±0.25% weight accuracy for filling paints, solvents, lubricants, and corrosive chemicals into 10–50L steel pails. Designed for harsh industrial environments, this ATEX/CE-certified system combines operator-guided loading with servo-controlled gravimetric technology – reducing spillage by >99%, cutting labor costs by 70%, and ensuring OSHA compliance for hazardous material handling.
Engineering Innovations
Static-Safe Precision Filling
Explosion-Proof Load Cells: ATEX Zone 1 certification for flammable solvents (flash point <23°C).
Conductive Nozzles & Grounding Clamps: <10? Ω resistance prevents static discharge.
Corrosion-Resistant Architecture
316L SS/Halar? Fluid Path: Resists acids (pH 0.5), alkalis (pH 14), and abrasive pigments.
Magnetic Quick-Seal Couplings: Tool-free nozzle swaps for pail necks (?50–120mm) in <45 seconds.
Operator-Safety Focus
Height-Adjustable Fill Head (600–1,200mm): Accommodates palletized pails.
Hands-Free Foot Pedal: Emergency stop (<0.3s response) + overfill auto-shutdown.
Zero-Waste Performance
Vacuum Suck-Back System: Residual loss <0.1% (patented anti-drip valve).
Viscosity Compensation: Handles 1–200,000 cP materials (e.g., epoxy putty to thin solvents).
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GZ-SMP500-Pro |
| Pail Capacity | 10–50L (steel) |
| Accuracy | ±0.25% (gravimetric) |
| Viscosity Range | 1–200,000 cP |
| Throughput | 12–18 pails/hour (operator-dependent) |
| Max. Filling Pressure | 30 bar (for greases/silicones) |
| Power | 380V/50Hz, 3.8 kW |
| Air Supply | 0.6 MPa, 0.25 m3/min |
| Material Contact | 316L SS, Halar?, EPDM |
| Footprint (L×W×H) | 1800 × 1000 × 2200 mm |
| Compliance | ATEX, CE, OSHA 1910.106, ISO 80079 |
Performance vs. Manual Filling
| Metric | GZ-SMP500 Semi-Auto | Manual Filling |
|---|---|---|
| Output (8h) | 144 pails | 32 pails |
| Labor | 1 operator | 3 operators |
| Material Waste | <0.1% | 5–15% |
| Spill Incidents | 0 | 4–8 daily |
| ROI Period | 6–9 months | N/A |
Industry-Specific Solutions
Paints/Coatings: Nitrogen purge prevents skinning; self-cleaning nozzles.
Acid/Lye Handling: Halar?-lined pumps resist sulfuric acid/NaOH.
Lubricant Transfer: High-flow mode (40 L/min) with anti-foam.
Solvent Packaging: Integrated vapor recovery hood (95% capture).
APPLICABLE BARREL TYPE
