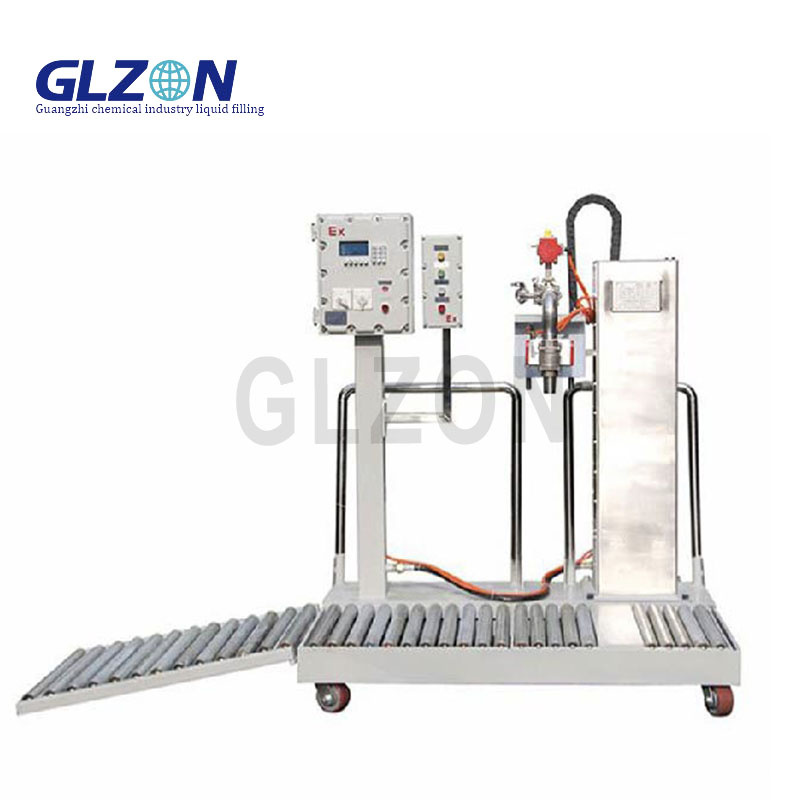

Explosion-proof drum filler for 200L acidic chemicals. ±0.2% gravimetric accuracy, Hastelloy C276 flow path & dual vapor control. ATEX Zone 1 certified.
Shanghai Guangzhi Automation’s ATEX-Certified Drum Filler masters 200L acidic chemical filling (HCl, H?SO?, HNO?) with ±0.2% gravimetric accuracy. Featuring Hastelloy C276 fluid path, dual-seal vapor recovery, and SIL3 safety controls, it enables one-operator safe handling in Zone 1 environments while achieving 12 drums/hour throughput.
1. Military-Grade Corrosion Defense
| Component | Material/Technology |
|---|---|
| Fluid Contact Path | Hastelloy C276 (HCl≤37%, H?SO?≤98%) |
| Seals & Gaskets | Kalrez? 6375 + PTFE Encapsulation |
| Frame | FRP-PVDF Composite (UV/acid splash proof) |
2. Explosion-Proof Safety Ecosystem
ATEX Zone 1 Certified:
Ex d IIC T4 pressurized control panel
Intrinsically safe sensors (Ex ia)
Triple Hazard Control:
Static Dissipation: Conductive hoses (<10? Ω) + auto-grounding verification
Vapor Containment: Dual-seal filling head + nitrogen purge (≥99.7% capture)
Emergency Response: 0.5s auto-shutdown on fault detection
3. Operator-Centric Safety
Ergonomic Design:
Height-adjustable nozzle (800-1200mm)
Counterbalanced arm (≤10N force)
Real-Time Monitoring:
Acid mist sensors (≥1ppm alarm)
Grounding continuity verification (<10Ω)
| Parameter | Specification |
|---|---|
| Filling Range | 50-200L (±0.2%) |
| Flow Rate | 40-150 L/min |
| Acid Compatibility | HCl≤37%, H?SO?≤98%, HNO?≤68% |
| Vapor Recovery | ≥99.7% (EPA Method 21) |
| Power | 24VDC intrinsic safety |
| Air Supply | 0.6MPa @ 80L/min |
| Safety Response Time | 0.5s (leak/shutdown) |
| Footprint (L×W×H) | 2200×1200×2500mm |
| Chemical | Specialized Feature |
|---|---|
| Hydrochloric Acid | Ceramic-lined hoses |
| Sulfuric Acid | Borosilicate sight glasses |
| Nitric Acid | Titanium load cells |
| Mixed Acids | PTFE diaphragm valves |
10" ATEX HMI (Ex de IIC T6)
Real-time dashboards:
Vapor concentration (ppm)
Fill accuracy analytics
Grounding status
Predictive alerts:
Seal degradation monitoring
Corrosion rate forecasting
Safety Interlocks (SIL3)
Auto-shutdown triggers:
Vapor >10% LEL
Grounding fault
Container misalignment
Emergency scrubber activation
German Chemical Plant Case:
Eliminated HCl filling spills & vapor exposure
Achieved VOC emissions <5ppm
ROI in 9 months via zero leaks
Certifications:
ATEX 2014/34/EU (Zone 1)
IECEx IEC 60079-0
OECD GLP Compliance
ISO 80079-36
Critical Upgrades:
| Module | Function |
|---|---|
| Acid Mist Scrubber | Neutralizes fugitive vapors |
| Robotic Lid Handler | Auto-sealing with torque control |
| AR Safety Glasses | Real-time hazard alerts in field of view |
| Blockchain Batch Log | Immutable compliance records |
24/7 Hazardous Response:
Remote diagnostics via VPN-secured IIoT
Critical Spares Dispatch ≤72h:
Hastelloy nozzles
Kalrez seal kits
Ex-proof sensors
Acid resistance validation testing
