ATEX Zone 1 certified semi-auto filler for 5-30L chemicals/alcohols. ±0.5% accuracy, vapor recovery & auto grounding. Ideal for labs/SMEs. CE/OSHA compliant.

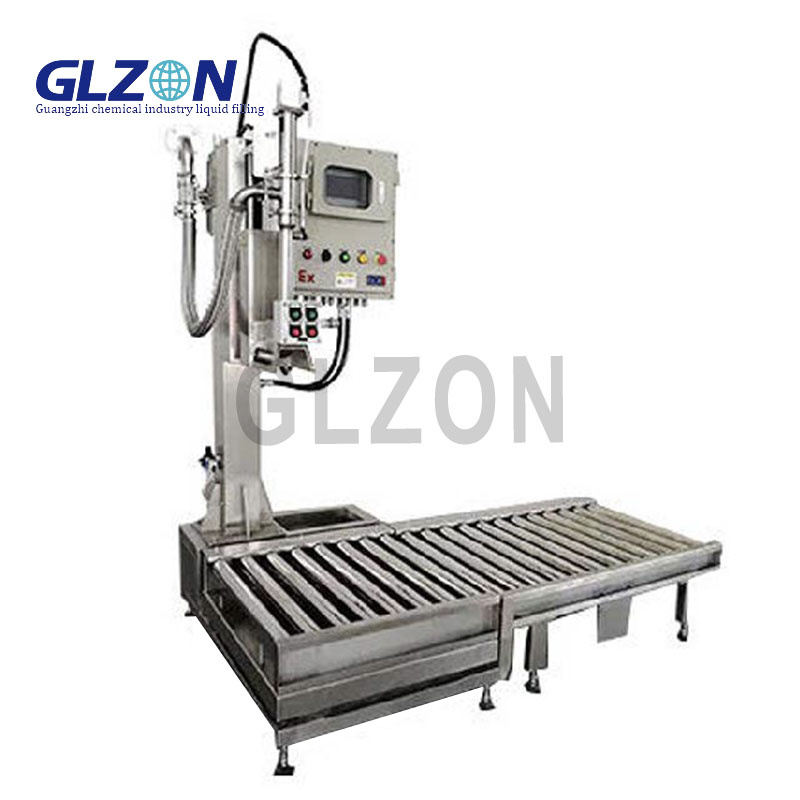

Shanghai Guangzhi Automation’s Semi-Automatic Filler delivers ±0.5% accuracy for filling flammable alcohols, acids, and solvents into 5-30L containers (jerrycans/drums). Engineered with ATEX Zone 1 certification, closed-loop vapor recovery, and SIL2 safety controls, it enables safe small-batch production while eliminating ignition risks.
1. Explosion-Proof Safety
ATEX Zone 1 Certified:
Ex d IIC T4 pressurized control cabinet
Intrinsically safe foot pedal (Ex ia)
Static Control:
Auto-ground verification (<10Ω resistance)
Conductive PTFE hoses (<10? Ω)
2. Zero-Emission Design
Dual-Stage Vapor Recovery:
Floating piston seal + nitrogen blanket (O?<0.5%)
≥99.5% capture efficiency (EPA Method 21)
SpillGuard? System:
Auto-shutoff on container misalignment
2L drip tray capacity
3. Precision Filling Modes
| Method | Accuracy | Application |
|---|---|---|
| Gravimetric | ±0.2% | High-value solvents |
| Volumetric Piston | ±0.5% | Viscous resins (≤50,000 cP) |
| Coriolis Flow Meter | ±0.3% | Fast alcohol filling |
| Parameter | Specification |
|---|---|
| Filling Range | 5–30L (±0.5%) |
| Container Height | 300–800mm |
| Viscosity Range | 1–50,000 cP |
| Materials | 316L SS / PTFE / Hastelloy C276 |
| Vapor Recovery | ≥99.5% |
| Power | 110V/230V, 1.5kW (24VDC ATEX) |
| Safety Certification | ATEX, IECEx, SIL2 |
| Footprint (L×W×H) | 1200×900×1800mm |
| Chemical | Specialized Feature |
|---|---|
| Ethanol/Methanol | Nitrogen inerting + conductivity monitoring |
| Acetone/Toluene | Explosion-proof peristaltic pumps |
| 30% HCl/H?SO? | Electro-polished 316L nozzles |
| Peroxide Solutions | Static-dissipative fill probes |
10" ATEX-Certified HMI
Recipe storage for 50+ chemicals
Real-time fill curve visualization
Predictive maintenance alerts
Triple Safety Interlocks
Container presence detection
Grounding fault lockout (<10Ω)
Vapor concentration alarm (≥25% LEL)
Swiss Pharma Lab Case:
Reduced IPA filling spills by 100%
Achieved ±0.3% fill accuracy
ROI in 6 months with vapor recovery savings
Global Certifications
ATEX 2014/34/EU (Zone 1)
IECEx IEC 60079-0
OSHA 1910.106
CE Machinery Directive
Critical Options
| Upgrade | Function |
|---|---|
| CIP Acid Wash | Automated cleaning cycle |
| Fire Suppression | Integrated FM-200 module |
| Blockchain Logging | REACH compliance traceability |
24/7 Global Response
Remote diagnostics via IIoT
Critical Spares Dispatch:
ATEX pumps
Vapor membranes
Grounding kits
Global delivery ≤72h
