Semi Auto Tin Filling Machine
Guangzhi’s semi-auto tin filler achieves ±0.25% accuracy for chemicals/paints. ATEX-certified, 75% labor reduction & <0.07% waste. Free demo!
- Brand： glzon
- Model： GZM_30L

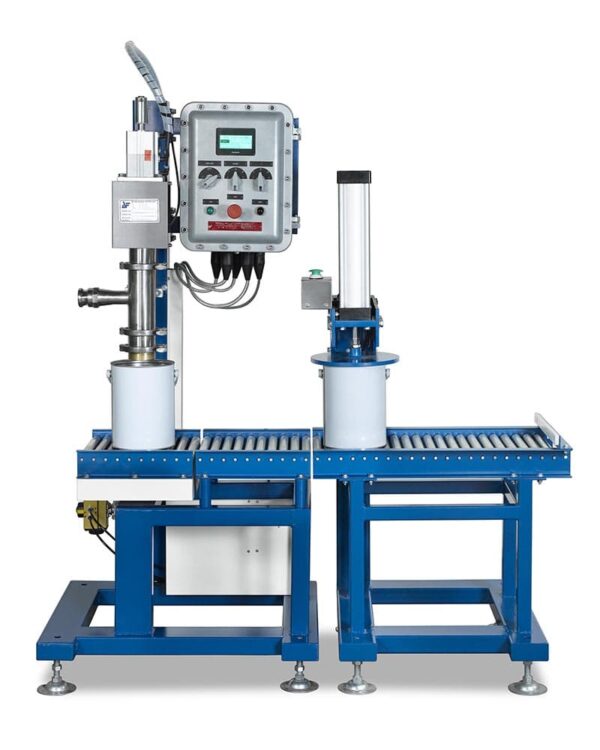

Semi-Automatic Tin Filler GZ-STF400 Series
Precision Gravimetric Filling for 5–30L Tin Containers
Shanghai Guangzhi Automation’s GZ-STF400 Series delivers ±0.25% weight accuracy for filling paints, solvents, adhesives, and specialty chemicals into 5–30L tin containers. Combining operator-assisted loading with servo-controlled gravimetric technology, this ATEX/CE-certified system reduces spills by >99%, cuts labor costs by 75%, and ensures OSHA-compliant handling of flammable or corrosive materials (1–300,000 cP).
Core Engineering Innovations
Static-Safe Precision
ATEX Zone 1 Certification: Explosion-proof load cells & grounding clamps (<10? Ω) for solvents (flash point <23°C).
Vacuum Suck-Back Nozzles: Residual loss <0.07% – industry’s lowest drip rate.
Corrosion-Resistant Architecture
316L SS/Halar? Fluid Path: Resists acids (pH 0.5), alkalis (pH 14), and abrasive pigments.
Magnetic Quick-Change Nozzles: Adapt to tin neck sizes (?40–150mm) in <30 seconds.
Operator-Centric Safety
Height-Adjustable Fill Arm (600–1,200mm): Accommodates palletized tins.
Auto-Shutdown: Triggers if weight deviation exceeds ±0.5%.
Viscosity Intelligence
Handles thin solvents (1 cP) to epoxy putties (300,000 cP) with servo-pump pressure up to 40 bar.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GZ-STF400-Pro |
| Capacity | 5–30L tin containers |
| Accuracy | ±0.25% (gravimetric) |
| Throughput | 15–20 tins/hour (operator-dependent) |
| Viscosity Range | 1–300,000 cP |
| Filling Pressure | 0–40 bar (programmable) |
| Power | 380V/50Hz, 3.2 kW |
| Air Consumption | 0.6 MPa, 0.25 m3/min |
| Material Contact | 316L SS, Halar?, EPDM |
| Footprint (L×W×H) | 1800 × 1000 × 2100 mm |
| Compliance | ATEX, CE, OSHA 1910.106, ISO 80079 |
Performance vs. Manual Filling
| Metric | GZ-STF400 Semi-Auto | Manual Process |
|---|---|---|
| Output (8h) | 160 tins | 32 tins |
| Labor | 1 operator | 3 operators |
| Material Waste | <0.07% | 4–12% |
| Spill Incidents | 0 | 3–8 daily |
| ROI Period | 5–8 months | N/A |
Industry-Specific Solutions
| Application | Guangzhi Technology |
|---|---|
| Paints/Solvents | Nitrogen purge + vapor recovery (95% efficiency) |
| Acid Transfer | Halar?-coated components (HF acid resistant) |
| Lubricants | High-flow mode (35 L/min) with anti-foam |
| Adhesives | Heated hopper (40–80°C) prevents curing |
