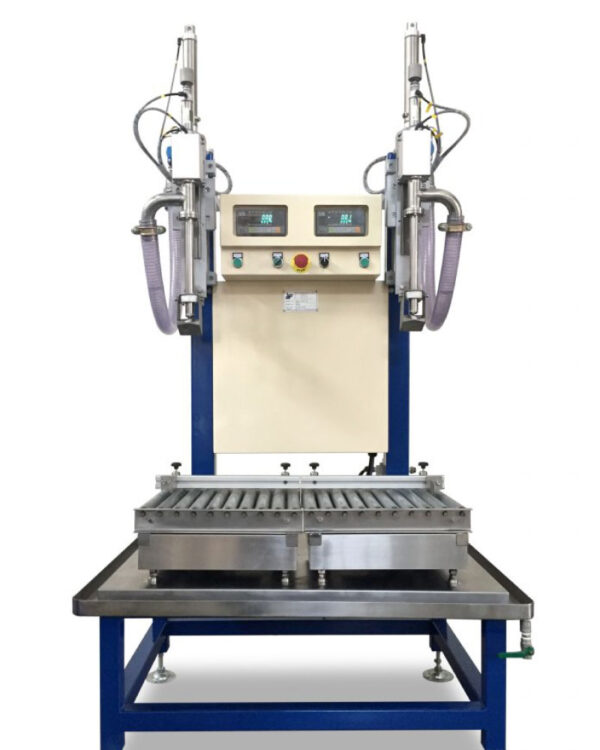

Semi Auto Tin Can Weight Filling Machine
Guangzhi’s semi-auto weight filler for tin cans achieves ±0.3% accuracy at 20 cans/min. FDA/ATEX-compliant. Reduces waste to 0.2% & labor by 66%. Request a test run!
- Brand： glzon
- Model： GZM_1000L
Semi-Automatic Tin Can Weight Filling Machine GZ-SFT450 Series
High-Accuracy Gravimetric Filling for Metal Containers
Shanghai Guangzhi Automation’s GZ-SFT450 revolutionizes the packaging of viscous to semi-solid products (lubricants, paints, pastes, food preserves) into tin cans (0.1–10 kg). Combining operator-guided loading with advanced gravimetric technology, it achieves ±0.3% filling accuracy, reduces product waste to <0.2%, and boosts output by 300% versus manual filling—all while ensuring OSHA and FDA compliance.
Engineering Breakthroughs
Precision Gravimetric Filling
Stainless Steel Load Cells (0.01g resolution): Real-time weight feedback adjusts servo-piston strokes mid-fill for thermal/viscosity changes.
Anti-Foam Pulsed Mode: For aerated products like sealants or whipped toppings.
Rugged Industrial Design
Heavy-Duty Clamping: Pneumatic can holders secure tin cans (?80–250mm) during high-pressure fills (up to 25 bar for greases).
Quick-Change Tooling: Swap nozzles/shakers for can sizes in <90 seconds (no tools).
Hygiene & Safety Compliance
316L SS & PTFE Contact Parts: Resistant to solvents, acids, and oils (IP66-rated electronics).
Explosion-Proof Option: ATEX-certified for flammable chemicals (e.g., paints, adhesives).
Operator-Centric Workflow
Rotary Turntable: Operator loads/unloads while machine fills 10–20 cans/minute.
7" HMI Touchscreen: Recipe memory (50+ presets), multilingual interface, and OEE tracking.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GZ-SFT450-Pro |
| Filling Range | 100g – 10,000g |
| Accuracy | ±0.3% (min), ±0.5% (standard) |
| Speed | 10–20 cans/minute (operator-dependent) |
| Can Compatibility | Round/rectangular tin cans: ?80–250mm, H≤300mm |
| Max. Filling Pressure | 25 bar (for high-viscosity greases) |
| Power | 220V/380V, 50/60Hz, 2.0 kW |
| Air Supply | 0.6 MPa, 0.2 m3/min |
| Hopper Capacity | 30 L (heated/cooled jacket optional) |
| Footprint | 1500 × 900 × 1700 mm |
| Weight | 420 kg |
Performance vs. Manual Filling
| Metric | GZ-SFT450 Semi-Auto | Manual Filling |
|---|---|---|
| Output (8h shift) | 9,600 cans | 2,400 cans |
| Labor Efficiency | 1 operator | 3 operators |
| Weight Deviation | ±0.3% | ±5–10% |
| Product Waste | 0.2% | 4–8% |
| ROI Period | 6–12 months | N/A |
Multi-Industry Applications
Food: Jams, honey, tomato paste (FDA-compliant version).
Chemicals: Paints, adhesives, solvents (ATEX option).
Lubricants: Greases, gear oils (high-pressure nozzle).
Cosmetics: Creams, waxes (GMP-grade with nitrogen purging).
