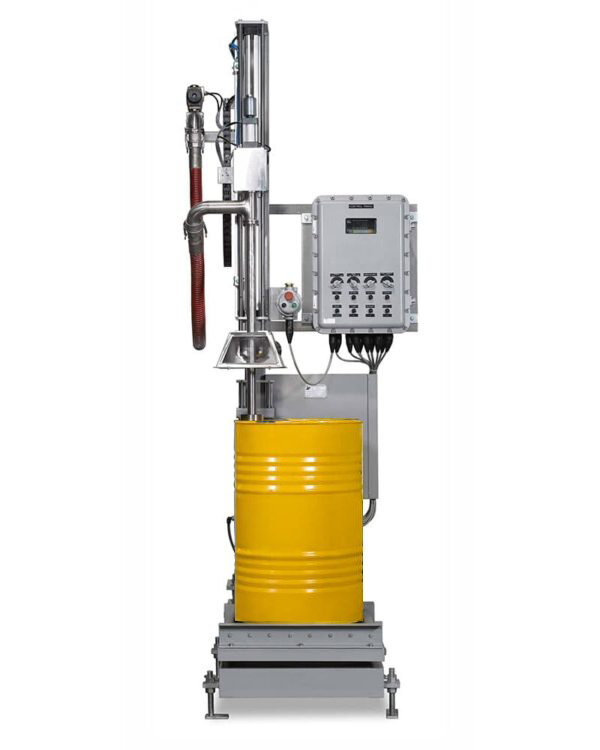

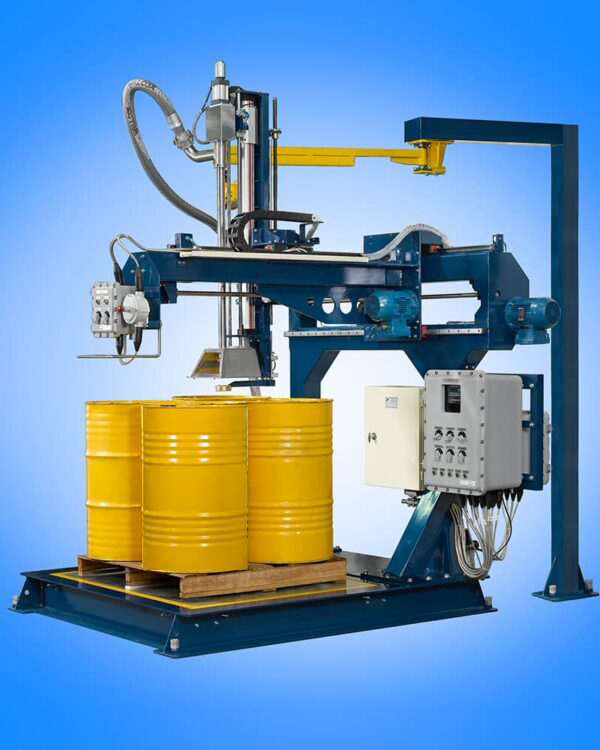

Drum on Pallet Explosion Proof Filling Machine is wisely used to fill flammability products. Whole filling machine provide explosion proof, can be used in hazardous environment. Automatic filling lanc
ATEX-Certified Precision for Hazardous Bulk Liquid Transfer
Shanghai Guangzhi Automation’s GZ-EX Series delivers safe, semi-automated filling of IBCs (1,000L) and drums (200L) in Zone 1/21 explosive environments. Combining ±0.25% gravimetric accuracy, nitrogen inerting, and vapor containment, this system achieves 15 IBCs/hour or 40 drums/hour while eliminating ignition risks – engineered for solvents, chemicals, and flammable liquids requiring ATEX compliance.
| Feature | Specification |
|---|---|
| ATEX/IECEx Certification | II 2G Ex db ib mb IIB T4 Gb |
| Vapor Containment | Sealed shroud with N? purging (O? <5%) |
| Static Control | Grounding clamps (<10? Ω resistance) |
| Drip-Free Filling | Retractable lance + vacuum suction (99.97% recovery) |
| Intrinsic Safety | Pressurized control panel (IP66 Ex d) |
| Parameter | IBC Totes (1,000L) | Drums (200L) |
|---|---|---|
| Accuracy | ±0.25% (gravimetric) | ±0.3% |
| Throughput | 15 units/hour | 40 units/hour |
| Filling Speed | 20–150 L/min | 10–80 L/min |
| Residual Loss | <0.03% | <0.05% |
| Nitrogen Consumption | 12 Nm3/hour (99.5% purity) | |
| Material Compatibility | Liquids: 1–100,000 cP | Flammables (FP <21°C) |
| Power Supply | 380V/50Hz, 4.0 kW + 0.7 MPa air (ATEX) | |
| Compliance | ATEX 2014/34/EU, IECEx, ISO 80079 |
Container Placement: Operator positions IBC/drum in vapor containment zone.
Purge & Seal: N? displaces oxygen → shroud seals.
Precision Filling: Load-cell controlled dosing (±0.25%).
Drip Recovery: Lance retracts with vacuum suction.
Vapor Evacuation: Residual vapors vented to scrubber.
| Component | Ex-Proof Standard | Function |
|---|---|---|
| Control Panel | EN 60079-0:2018 (Ex d) | Ignition-proof enclosure |
| Sensors | EN 60079-11:2012 (Ex ia) | Intrinsically safe circuits |
| Filling Valves | API 607 fire-safe | Prevents leakage |
| Emergency Stop | ISO 13849-1 PLd | SIL-2 certified |
| Industry | Materials Filled | Safety Features |
|---|---|---|
| Chemical | Acetone, toluene, monomers | Double N? blanket |
| Paints/Resins | Solvent-based coatings | Static-dissipative lances |
| Pharma | Ethanol-based intermediates | GMP-compliant materials |
| Biofuels | Ethanol, biodiesel | Flashpoint monitoring |
| Metric | GZ-EX System | Manual Process |
|---|---|---|
| Operator Safety | Zero vapor exposure | High risk |
| Product Loss | <0.03% residual | 3-5% spillage |
| Compliance | Full ATEX/IECEx | Frequent violations |
| ROI Period | 6-10 months | N/A |
