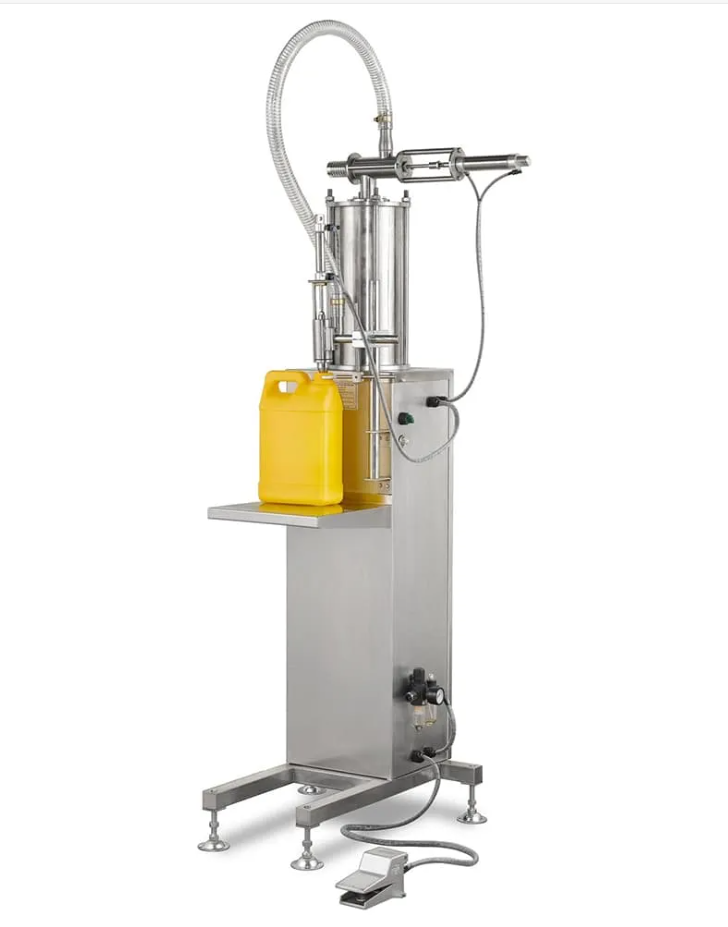

Single Head Volumetric Filler is single Nozzle Piston Volumetric Filler, suitable to fill 1 to 5 Liters Liquid into Container and Bottles. This filling machine designed focus on simplicity on set up.
Precision Filling for Versatile Formats & Viscosities
The Guangzhi VoluFill VSF-1000 delivers laboratory-grade accuracy (±0.5-1%) for liquids, pastes, and granules in bottles, jars, or pouches. Designed for R&D, cosmetics, and food SMEs, this operator-assisted machine fills 10-30 containers/minute with tool-free changeover between products.
| Parameter | Specification |
|---|---|
| Filling Range | 5ml–5L (interchangeable cylinders) |
| Accuracy | ±0.5% (low-visc) / ±1% (high-visc) |
| Viscosity Handling | 1–50,000 cP |
| Speed | 10–30 containers/min (manual placement) |
| Power | 110V/220V, 50/60Hz, 0.75 kW |
| Air Supply | 0.5 MPa (optional air-kit for pneumatics) |
| Material Contact | 316L SS, PTFE, Borosilicate glass |
| Footprint | 800 × 600 mm (bench-top) |
| Feature | VSF-1000 (Piston Volumetric) | Peristaltic Pump | Gravity Filler |
|---|---|---|---|
| Accuracy | ±0.5% | ±2% | ±5% |
| Viscosity Range | Up to 50,000 cP | Up to 3,000 cP | <500 cP |
| Shear Sensitivity | Low impact | Medium impact | None |
| Changeover Time | 2 min (cylinder swap) | 10 min (tube change) | N/A |
Stainless Steel Piston Cylinder: Hard-chrome plated (Ra ≤0.4μm)
Adjustable Filling Head: Drip-free nozzle with splash guard
Foot Pedal Control: Hands-free activation while positioning containers
Digital Control Panel: Preset volume (0.1ml increments), cycle counter
Tool-Free Disassembly: CIP-compliant for sanitary industries
| Metric | VSF-1000 | Manual Filling | Improvement |
|---|---|---|---|
| Consistency | ±0.5% RSD* | ±8% RSD | 16× more precise |
| Daily Output | 12,000 units | 2,500 units | 380% increase |
| Material Waste | <0.3% | 3–7% | 90% reduction |
| Operator Fatigue | Low (foot control) | High | 70% less strain |
| *Relative Standard Deviation |
Cosmetics: Serums, creams, nail polish (5–100ml)
Food & Beverage: Sauces, honey, edible oils (100ml–1L)
Chemicals: Lubricants, adhesives, solvents
Pharma: Ointments, sanitizers, bulk API transfers
? Ultra-Fast ROI: Pays for itself in <90 days (vs. manual filling)
? Formula Integrity: Zero shear damage for emulsions/gels
? Multi-Industry Ready: Food (FDA), Pharma (GMP), Chemicals (CE)
? Portable Design: Locking casters for flexible workshop layouts
Heated Hopper: For viscous materials (up to 80°C)
Ex-Proof Kit: ATEX Zone 2 for solvents (ethanol/IPA)
Auto Nozzle Rinsing: Solvent flush between batches
Data Export: USB batch reports (time, volume, operator ID)
