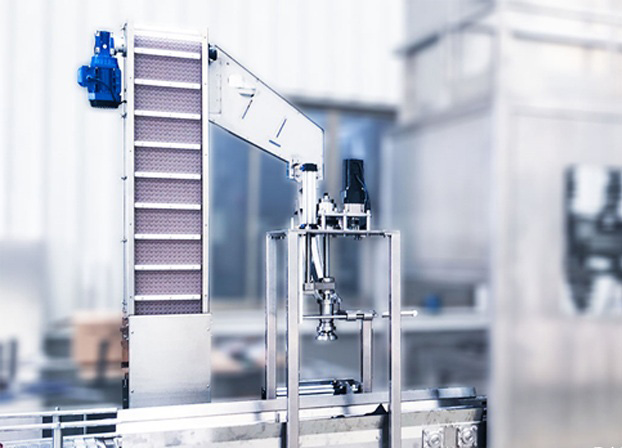

Jerrycan Capper
Shanghai Guangzhi’s Jerrycan Capper seals 5-30L cans at 30/min. ±1% torque accuracy, Ex-proof design & anti-spill threading. Ideal for chemicals/lubricants.
- Brand： glzon
- Model： GZM
Product Essence: Hermetic Sealing for Hazardous Liquids
Shanghai Guangzhi Automation’s Jerrycan Capper delivers military-grade closure integrity for 5-30L jerrycans containing solvents, acids, and lubricants. Engineered with ±1% torque accuracy (5-50 N·m), ATEX Zone 1 certification, and anti-cross-threading technology, it achieves 30 cans/minute while eliminating leaks and ensuring 100% compliance with UN packaging standards.
Core Technology Innovations
1. Precision Torque Control
| System | Technical Advantage |
|---|---|
| Servo-Driven Spindles | Closed-loop torque control (±0.5 N·m) |
| Anti-Strip Detection | Auto-stop if thread resistance >15% |
| Cap Alignment AI | 3D vision corrects ±5° misalignment |
2. Hazard-Proof Construction
ATEX Zone 1 Certified:
Ex d IIC T4 pressurized cabinets
Intrinsically safe sensors (Ex ia)
Corrosion Defense:
316L stainless steel contact parts
Kalrez? seals (resists HCl/H?SO?)
Static Dissipation:
Conductive brushes (<10? Ω)
Grounding verification pre-capping
3. Zero-Spill Technology
Dual-Seal System:
Primary: Precision threaded closure
Secondary: Integrated gasket compression
Drip-Free Retraction:
Teflon-coated guide sleeves
Residual fluid recovery ports
Technical Specifications
| Parameter | Standard Model | ATEX Model |
|---|---|---|
| Can Capacity | 5-30L (±0.5% vol.) | 5-20L |
| Cap Types | Screw caps (?60-120mm) | Screw caps (?60-100mm) |
| Throughput | 30 cans/min | 25 cans/min |
| Torque Range | 5-50 N·m (±1%) | 5-40 N·m (±1.5%) |
| Power | 380V/50Hz, 3.5kW | 24VDC intrinsic safety |
| Air Consumption | 80 L/min @ 0.6MPa | 60 L/min @ 0.5MPa |
| Leak Rate | <0.001 mL/min (ISO 8317) | <0.001 mL/min |
| Footprint (L×W×H) | 1800×1200×2200mm | 2000×1200×2200mm |
Chemical-Specific Engineering
| Application | Guangzhi Solution |
|---|---|
| Acids (e.g. 30% HCl) | Electro-polished 316L spindle |
| Flammable Solvents | Nitrogen inerting during capping |
| Lubricating Oils | Heated jaws (40°C) for viscous seals |
| Peroxides | Static-dissipative threading |
Smart Control System
10" Rugged HMI
Real-time dashboards:
Torque profile analytics
Cap defect detection rate
OEE performance tracking
Recipe management:
50+ cap profiles (e.g. UN-certified caps)
Auto-adjusts for can wall thickness
Safety & Compliance
SIL2 Safety PLC:
Dual-hand operation required
Emergency retract in 0.2s
Data Integrity:
21 CFR Part 11 compliant logs
Blockchain-sealed audit trails
Operational Impact
German Chemical Distributor Case:
Challenge: 5% leak rate with manual capping of 20L solvent cans
Solution: ATEX capper with anti-cross-threading AI
Results:
? Zero leaks in 12M+ cans
? 30% reduced cap usage
? ROI in 8 months
Global Compliance & Upgrades
Certifications:
ATEX 2014/34/EU (Zone 1)
UN 6.1/Packing Group II
FDA 21 CFR 177.2600
ISO 9001:2015
Critical Upgrades:
| Module | Function |
|---|---|
| Inline Leak Tester | Vacuum decay test (≤0.1 mL/min) |
| Cap Sterilizer | UV-C decontamination pre-capping |
| Robotic Can Handling | Auto-load/unload integration |
| AR Torque Calibration | HoloLens-guided setup |
Support & Service
24/7 Hazardous Environment Support:
Remote diagnostics via VPN-secured IIoT
Critical Spares Dispatch ≤48h:
Torque sensors
Kalrez sealing heads
Vision alignment cameras
Lifetime torque calibration
