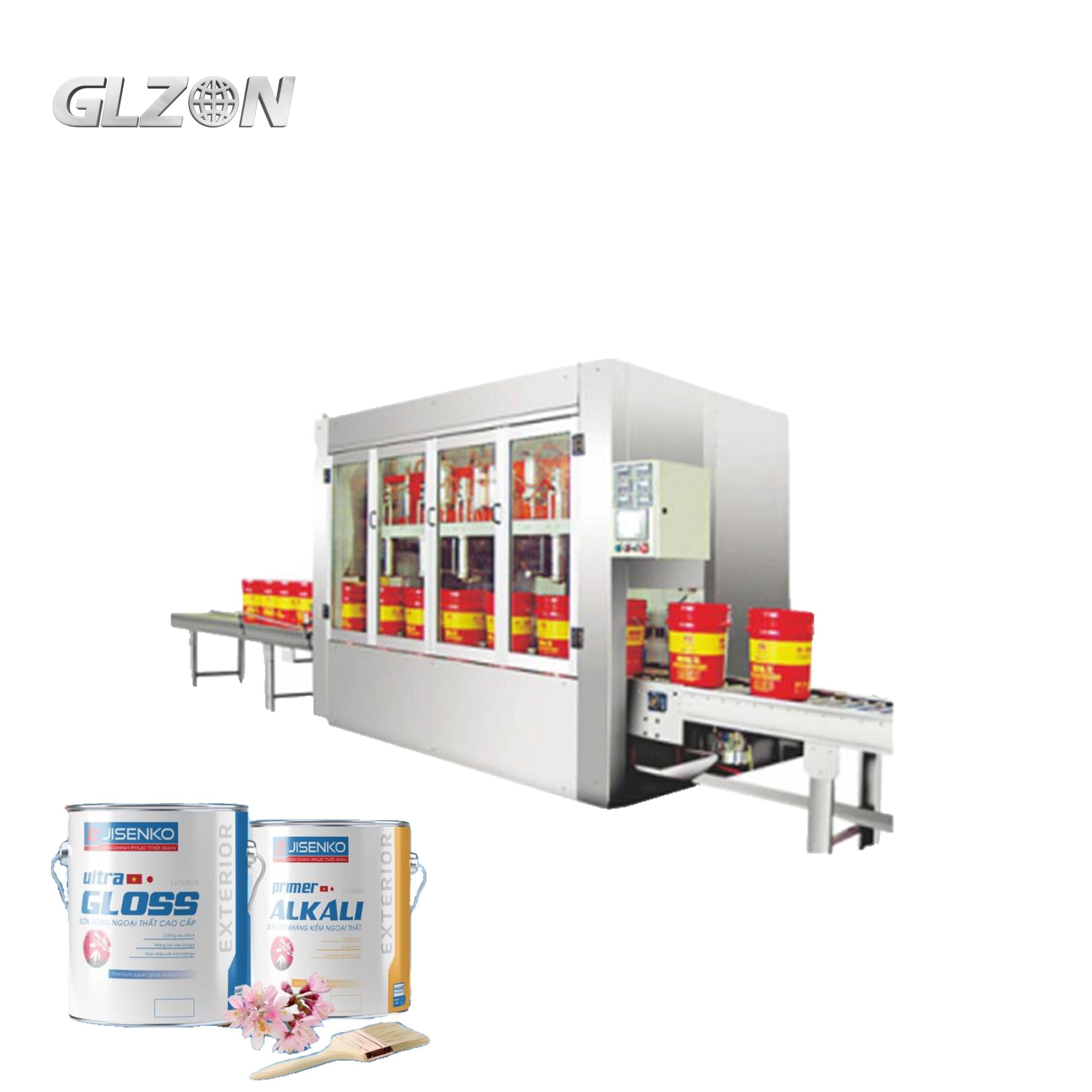

Inline Pail Packaging System Seamless 5 Gallon Pail Filling
Continuous 5-gallon pail system: 120 pails/hour, ±0.15% accuracy. ATEX/FDA certified. No-drip nozzles & tool-free changeover.
- Brand： glzon
- Model： GZM_30L
PailFlow Pro PF-5000 Series
Inline 5-Gallon Pail Packaging System
Continuous Filling. Zero Downtime.
Technical Specifications
Parameter | PF-5100 (Standard) | PF-5200X (ATEX) | PF-5300F (Food Grade) |
|---|---|---|---|
Capacity | 5 Gal (±0.15%) | 5 Gal (±0.2%) | 5 Gal (±0.1%) |
Throughput | 120 pails/hour | 100 pails/hour | 110 pails/hour |
Filling Accuracy | ±0.15% gravimetric | ±0.2% | ±0.1% (Mass Flow) |
Viscosity Range | 50-500,000 cP | 100-300,000 cP | 50-200,000 cP |
Material Contact | 316L SS + EPDM | Hastelloy C276 | 316L EP + FDA UHMW-PE |
Lid Types | Snap-on/Screw-top | Same | Tamper-evident seals |
Power | 480V/60Hz, 7.2kW | 24VDC Ex ia | 480V/60Hz, 6.5kW |
Air Consumption | 120 L/min @ 0.6MPa | 100 L/min | 90 L/min |
Changeover Time | <2 min (Tool-Free) | <3 min | <2 min |
Clean Time | CIP: 5 min | Solvent Wash: 8 min | SIP: 7 min @ 121°C |
Footprint (L×W) | 4.2m × 1.8m | 4.5m × 2.0m | 4.0m × 1.7m |
Core Innovations
1. Dual-Station Continuous Flow
Seamless Transition:
Zero Gap Transfer: Magnetic conveyor sync (±0.1s)
No-Drip Nozzles: Residual <0.05ml (Air Knife Cutoff)
Output: 120 pails/hour (2 sec/pail cycle)
2. Industry-Specific Engineering
Industry | Solution | Certification |
|---|---|---|
Chemicals | ATEX Zone 1 + VOC recovery hood | IECEx IEC 60079 |
Food Processing | EHEDG design + allergen purge | USDA 3-A 18-03 |
Paints | Anti-skinning N? blanket | ASTM D1644 Yellowing <Δ0.5 |
Lubricants | Heated path (5-80°C) | ISO 6743 Compliance |
Performance Comparison
Metric | Traditional System | PF-5100 | Improvement |
|---|---|---|---|
Output | 60 pails/hour | 120 pails/hour | ↑100% |
Product Loss | 1.2% | <0.1% | ↓92% |
Lid Seal Failure | 3% | <0.05% | ↓98% |
Energy Use/Pail | 0.18 kWh | 0.09 kWh | ↓50% |
Smart Control System
10" IP69K Touchscreen with PailOS?
AI-Driven Features:
Seal Integrity AI:
Defect Type
Detection Rate
Lid misalignment
99.9%
Insufficient torque
100%
Anomaly Response:
Issue
Action
Foaming overflow
Flow reduction + anti-foam injection
Weight deviation
Auto-reject + re-calibration
Certifications
? ATEX 2014/34/EU (PF-5200X) ? FDA 21 CFR 177.2600 ? EHEDG Type EL Class I ? ISO 9001:2015 ? CE EN 415-6
Workflow Integration
1. Auto de-palletizing → 2. Vision-guided orientation → 3. N? purging (O?<0.5%) → 4. Coriolis mass filling → 5. Steam sterilization (food grade) → 6. Laser lid inspection → 7. Robotic palletizing
Cycle Time: 6 seconds/pail (full process)
