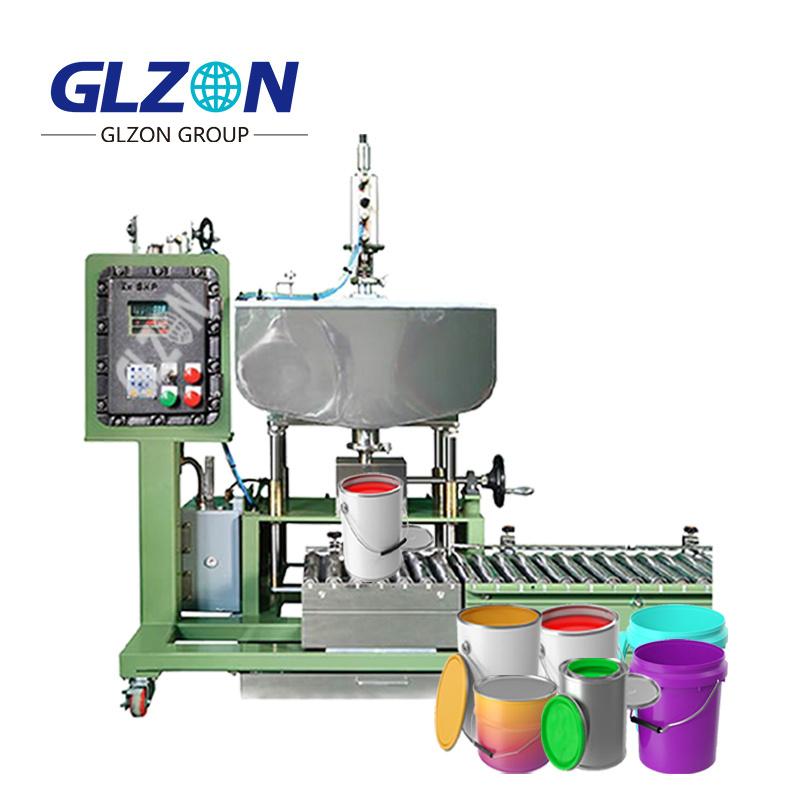

Gallon Filler Machine 1– 5 Gallon for Lubricants, Resin, and Epoxy
Automatic gallon filler: 45 units/hour, ±0.1% accuracy. Handles 10-1M cP liquids. ATEX/FDA certified. Free demo!
- Brand： glzon
- Model： GZM_30L
MultiGallon Pro MG-5000 Series
Automatic 1-5 Gallon Filling Machine
Precision Viscosity Handling ? Zero Cross-Contamination ? Industrial Reliability
Technical Specifications
| Parameter | MG-5100 (Standard) | MG-5200H (High-Visc) | MG-5300X (ATEX) |
|---|---|---|---|
| Capacity Range | 1-5 Gal (±0.1%) | 1-5 Gal (±0.15%) | 1-5 Gal (±0.2%) |
| Throughput | 45 units/hour | 38 units/hour | 40 units/hour |
| Accuracy | ±0.1% gravimetric | ±0.15% | ±0.2% |
| Viscosity Range | 10-500,000 cP | 50-1,000,000 cP | 10-300,000 cP |
| Filling Technology | Servo Piston + Teflon? | Heated Screw Auger | ATEX Diaphragm Pump |
| Material Contact | 316L SS + PTFE Lined | Hardox 500 + Ceramic | Hastelloy C276 |
| Drip Control | Air-Knife Cutoff | Vacuum Suction | Spring-Loaded Retract |
| Temp Control | 20-80°C (±1°C) | 40-120°C (±0.5°C) | 20-70°C (±2°C) |
| Changeover Time | <60s (Tool-Free) | <75s | <65s |
| Power | 220V/50Hz, 1.8kW | 220V/50Hz, 2.5kW | 24VDC Ex ia |
| Container Types | Plastic/Metal Gallons | Same + Cubitainers | Same + Safety Cans |
| Footprint (L×W×H) | 1800×1200×2000mm | 2000×1400×2200mm | 1900×1300×2100mm |
Core Innovations
1. Viscosity-Adaptive System
Performance Metrics:
| Material | Flow Rate | Residual | Temp Control |
|---|---|---|---|
| ISO 320 Gear Oil | 1.2 gal/min | <0.05ml | 40°C±1°C |
| Epoxy Resin | 0.8 gal/min | <0.1ml | 35°C±0.5°C |
| PU Foam | 0.5 gal/min | <0.08ml | 25°C±1°C |
2. Cross-Contamination Defense
| Component | Technology | Cleaning Efficiency |
|---|---|---|
| Quick-Change Cylinders | Magnetic Coupling | <10ppm Residual |
| Purge System | 3-Stage Solvent/N?/Air | 99.98% Efficiency |
| Seals | Double PTFE + Kalrez? | Zero Permeation |
Industry-Specific Engineering
Lubricant Packaging
| Feature | Specification |
|---|---|
| API Certification | Auto-Viscosity Compensation |
| Foam Control | Vacuum Degassing (-0.8 bar) |
| Label Integration | Auto-Apply System (±1mm) |
Epoxy & Resin Handling
Pot Life Management:
Auto-Flow Speed Adjustment
Temp-Controlled Path (±0.5°C)
Bubble Prevention:
Technology Performance Vacuum Filling <0.1% Air Entrainment Pulsed Flow Micro-Bubble Elimination
Industrial Adhesives
| Challenge | Solution |
|---|---|
| Stringing | Air-Knife + Reverse Suction |
| Settling | Ultrasonic Agitation |
| Skin Formation | N? Blanketing (O?<0.3%) |
Smart Control System
7" HMI with FluidOS?
AI-Driven Features:
Curing Alert System:
Parameter Action Temp Rise >0.4°C/min Auto-Speed Increase Viscosity Spike >8% Emergency Purge Predictive Maintenance:
Component Alert Threshold Seal Wear Friction >6N Valve Cycles >500,000
Certifications
? ATEX 2014/34/EU (MG-5300X) ? FDA 21 CFR 175.300 ? ISO 9001:2015 ? CE EN 60204-1
Operational Advantages
| Metric | Manual Filling | MG-5100 | Improvement |
|---|---|---|---|
| Accuracy | ±3-7% | ±0.1% | 30-70x better |
| Output | 15 units/hour | 45 units/hour | 200% faster |
| Material Waste | 5-12% | <0.2% | ↓96% |
| Changeover Time | 15-25 min | <60s | ↓95% |
