GZM PPF-3000S fully automatic servo-piston filler handles 10-30L paint pails at 25 units/hour with ±0.3% accuracy. Processes coatings up to 200,000 cP. Features vacuum degassing, CIP cleaning, and ATEX/NFPA compliance. Reduces waste to 0.2% and enables 5-min color changeovers. Ideal for industrial paint and adhesive manufacturers.
Precision Automation for High-Viscosity Paints & Coatings

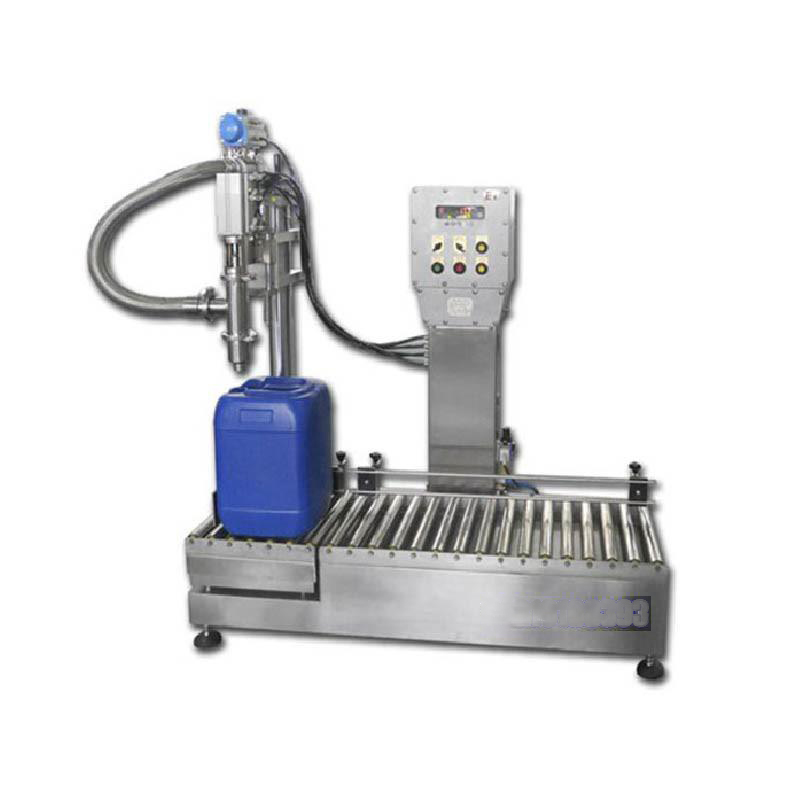

The GZM PPF-3000S is a fully automatic servo-piston filler designed for 10-30L pails and buckets of paints, stains, resins, and adhesives (up to 200,000 cP). Integrating robotic handling, vacuum degassing, and ±0.3% accuracy filling, it achieves 25 pails/hour with zero drips and ATEX/NFPA 70 compliance for solvent-based formulations.
| Parameter | Specification |
|---|---|
| Capacity | 10–30L (adjustable in 50ml increments) |
| Accuracy | ±0.3% (servo-piston) |
| Viscosity Range | 5,000–200,000 cP (heated hopper optional) |
| Speed | 20–25 pails/hour (20L standard) |
| Pail Types | Round/rectangular steel/plastic (?250–400mm) |
| Material Contact | 316L SS + PTFE/hardened steel pistons |
| Power | 380V/50Hz, 8.5 kW |
| Air Supply | 0.6 MPa @ 45 L/min (oil-free) |
| Challenge | PPF-3000S Solution |
|---|---|
| Paint Entrapment | Vacuum degassing (≤0.1% air bubbles) |
| Dripping/Stinging | Anti-drip nozzle + retractable spout |
| Color Changeover | CIP system (5-min purge, 99.98% purge efficiency) |
| High-Viscosity Handling | Dual-piston servo drive (150 bar force) |
| Metric | PPF-3000S | Manual Operation | Savings |
|---|---|---|---|
| Throughput | 25 pails/hour | 5 pails/hour | 5× faster |
| Material Waste | 0.2% | 4–7% | 97% reduction |
| Color Changeover | 5 min | 45 min | 89% less downtime |
| Labor | Unattended | 2 workers | 100% reduction |
Architectural Paints: Latex, acrylic emulsions
Industrial Coatings: Epoxy, polyurethane, alkyd resins
Adhesives: Silicone sealants, construction adhesives
Specialty Chemicals: Gel coats, bituminous coatings
10" HMI Touchscreen: Recipe storage (200+ formulas), batch reporting
IoT Connectivity: Real-time OEE tracking, predictive maintenance
Safety Interlocks: LEL monitoring, emergency purge, auto grounding
Vision Inspection: Fill level verification, lid placement check
? Drip-Free Guarantee: Patented nozzle design + drip tray
? Explosion Safety: ATEX Zone 1 (II 2G Ex db IIC T6) / NFPA 70
? Ultra-High Viscosity: Handles thickened fillers (NLGI Grade 2)
? Seamless Integration: Palletizer/Stretch wrapper interfaces (MODBUS TCP)
Nitrogen Blanketing: O? < 0.5% for moisture-sensitive paints
EX-Proof Robotic Loader: ATEX-certified 6-axis arm
Inline Viscosity Control: Real-time adjustment (±5% setpoint)
GHS Label Printer: Hazard symbol compliance
