Shanghai Guangzhi’s dual-head IBC filler achieves ±0.1% gravimetric accuracy for 1000L edible oils. Features N? blanketing, CIP & FDA-compliant design. 20 IBCs/hour throughput.

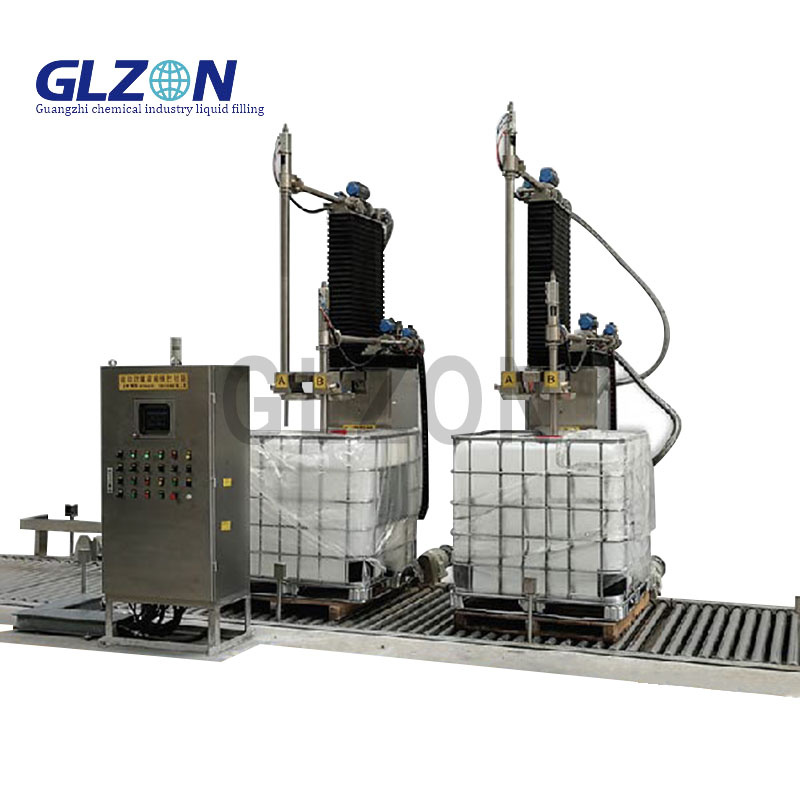

Shanghai Guangzhi Automation’s Dual-Head IBC Filler redefines bulk edible oil packaging – delivering ±0.1% gravimetric accuracy for 1000L IBC totes of olive, sunflower, and palm oils. Combining dual Coriolis mass flow meters, automated nitrogen blanketing, and EHEDG-certified hygienic design, it achieves 20 IBCs/hour while eliminating oxidation and ensuring FDA/ISO 22000 compliance.
1. Dual-Channel Precision Filling
Synchronized Coriolis Flow Meters:
Twin Emerson Micro Motion? sensors (±0.1% accuracy)
Auto-density compensation for temperature fluctuations
Zero Cross-Contamination:
Independent filling paths with dedicated CIP circuits
2. Oil Preservation System
Active Oxygen Control:
N? blanketing (O? <0.5% in headspace)
UV-light assisted deoxygenation option
Thermal Management:
Jacketed pipes maintain 15-40°C (±1°C)
Prevents crystallization in palm/coconut oils
3. Hygienic Excellence
EHEDG EL Class I Design:
316L stainless steel (Ra ≤0.8μm)
Self-draining surfaces (3° slope)
Automated CIP/SIP:
4D spray coverage (flow ≥1.5m/s)
<10 min cleaning validation
| Parameter | Standard Model | ATEX Option |
|---|---|---|
| Filling Range | 500–1000L (±0.1%) | 500–1000L (±0.15%) |
| Flow Rate | 200 L/min per head | 180 L/min per head |
| Viscosity Range | 20–500 cP | 20–400 cP |
| IBC Compatibility | Standard 1000L (1165×1165×1165mm) | Same |
| Power | 380V/50Hz, 12kW | 24VDC intrinsic safety |
| N? Consumption | 15 L/min @ 4bar | 12 L/min @ 3.5bar |
| CIP Cycle Time | 8 min | 10 min |
| Footprint (L×W×H) | 4800×3200×3500mm | 5000×3200×3500mm |
| Oil Type | Specialized Feature |
|---|---|
| Extra Virgin Olive Oil | Light-shielded filling (Lux <50) |
| Palm Oil | Temperature-controlled jackets (40°C) |
| Fish Oil | N? sparging + antioxidant injection |
| Sesame Oil | Anti-static filling (surface charge <5kV) |
15" FDA-Compliant HMI
Real-time dashboards:
Per-head OEE performance
Peroxide value (PV) trend monitoring
N? purity analytics
Blockchain batch tracing (farm-to-IBC)
Industry 4.0 Integration
OPC UA communication with ERP/MES
Predictive maintenance:
Seal wear detection
Flow meter drift alerts
Energy consumption optimization
Spanish Olive Oil Producer Case:
Challenge: 0.8% oil giveaway + oxidation in 1000L totes
Solution: Dual-head filler with real-time density compensation
Results:
? Zero giveaway (saved €280K/year)
? PV increase <0.5 meq/kg/month
? ROI in 9 months
Certifications:
FDA 21 CFR 110/117
EHEDG Certificate No. 47
ISO 22000:2018
CE PED 2014/68/EU
Critical Upgrades:
| Module | Function |
|---|---|
| Inline Quality Analyzer | FFA/PV/moisture (±0.05%) |
| Robotic Lid Handling | Auto-sealing with torque control |
| Aseptic Barrier | ISO Class 4 cleanroom compatibility |
| Carbon Footprint Tracker | ISO 14067 compliance reporting |
24/7 Global Response:
Remote diagnostics via encrypted VPN
Critical Spares Dispatch:
Coriolis sensors
N? membrane modules
Sanitary valves
Global delivery ≤48h from Shanghai/Rome/Chicago hubs
