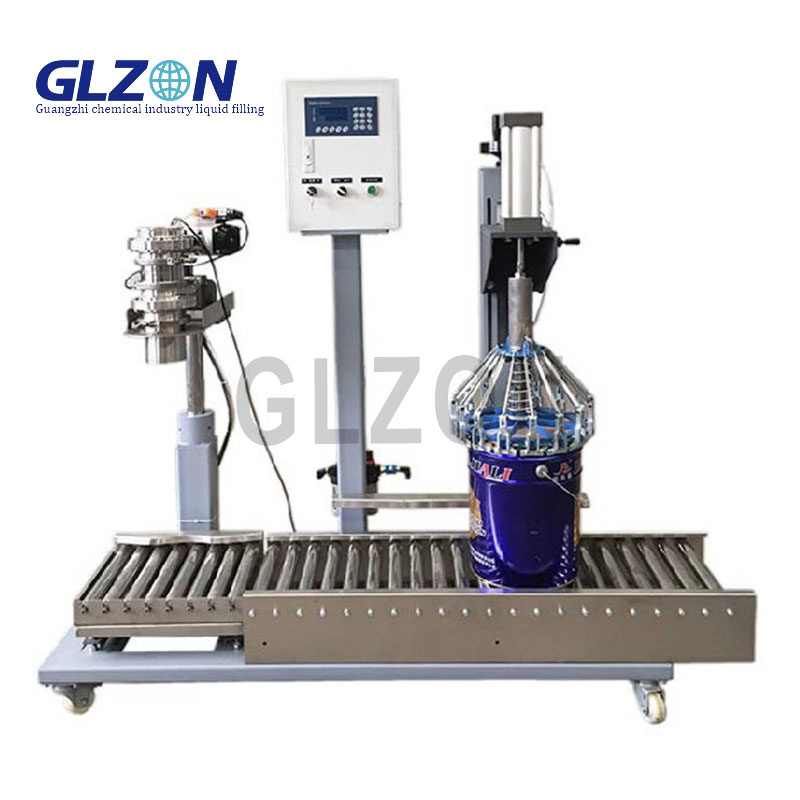

Fully Automatic 25L Paint Can Filling and Capping Machine
Fully auto machine fills & caps 25L paint cans at 30/min. ±0.15% accuracy, anti-skinning system & ATEX option. Water-based/solvent paints. CIP ready.
- Brand： glzon
- Model： GZM_30L
Product Essence: Precision Meets Paint Chemistry
Shanghai Guangzhi Automation’s 25L Paint Can Filler & Capper integrates high-precision filling (±0.15%) and torque-controlled sealing (5-50 N·m) in one system. Designed for water-based/solvent paints (500-30,000 cP), it achieves 30 cans/minute throughput with helical anti-settling agitation, nitrogen-blanket filling, and paint-skin prevention technology – reducing waste by 40% while ensuring color consistency.
Core Technology Innovations
1. Settlement-Free Filling
| System | Technical Advantage |
|---|---|
| Bottom-Up Fill Nozzle | Avoids pigment separation |
| Helical Ribbon Agitator | Wall scraping at 10-30 RPM (shear <1,000 s?1) |
| Pulsed Flow Control | Density uniformity (±0.8% SG) |
| Vacuum Degassing | Removes 95% entrained air |
2. Intelligent Sealing System
Vision-Guided Cap Alignment:
Corrects ±5° angular deviation
±0.5mm positional accuracy
Torque-Phase Control:
Phase Function Pre-Seal 25% torque for gasket compression Main Torque 70% torque for thread engagement Finishing 5% torque relief for stress relaxation
3. Paint-Skin Prevention
Oxygen Barrier Technology:
Nitrogen-purged headspace (O?<0.3%)
Floating lid applicator pre-sealing
Residual Paint Protection:
UV-blocking can material option
Infrared drying tunnel (60°C)
Technical Specifications
| Parameter | Water-Based Model | Solvent Model |
|---|---|---|
| Throughput | 30 cans/min | 25 cans/min |
| Filling Accuracy | ±0.15% (25L target) | ±0.2% |
| Viscosity Range | 500-20,000 cP | 500-30,000 cP |
| Cap Size | ?110-160mm | ?110-160mm |
| Torque Accuracy | ±2% (5-50 N·m) | ±2.5% |
| Power | 380V/50Hz, 8.5kW | 380V/50Hz, 9.2kW |
| N? Consumption | 15 L/min | 20 L/min |
| CIP Cycle | <8 min (water rinse) | <12 min (solvent flush) |
| Footprint (L×W×H) | 4500×1800×2200mm | 4800×1800×2400mm |
Paint-Chemistry Engineering
| Paint Type | Guangzhi Solution |
|---|---|
| Acrylic Emulsions | Low-foam nozzles + slow-fill finish |
| Epoxy Paints | Quick-flush dual-path system |
| Metallic Coatings | Anti-sedimentation pulsed agitation |
| Solvent-Borne | ATEX Zone 1 option + vapor recovery |
Smart Control Ecosystem
10" HMI with Paint Formulation Cloud
Auto Recipe Recall:
100+ preset profiles (e.g., latex, alkyd, epoxy)
Viscosity-temperature compensation (±1 cP)
Real-Time Analytics:
Fill accuracy SPC chart
Cap torque distribution
O? ppm in headspace
Predictive Alerts:
Agitator bearing wear
Seal degradation index
Industry 4.0 Connectivity
OPC UA/MQTT to MES/ERP
Blockchain Traceability:
Raw material batch → production timestamp
Remote firmware updates
Operational Impact
Global Coatings Manufacturer Case:
Reduced giveaway from 1.5% to 0.2%
Eliminated 100% skinning defects
ROI in 7 months via material savings
Global Compliance & Upgrades
Certifications:
CE EN 415-6
REACH SVHC Compliance
ATEX 2014/34/EU (Zone 1 Option)
ISO 9001:2015
Critical Upgrades:
| Module | Function |
|---|---|
| Inline Viscosimeter | Real-time viscosity control (±50 cP) |
| Robotic Can Handling | Auto de-palletizing & lid feeding |
| X-Ray Fill Check | Detects settled pigments (≥100μm) |
| AR Maintenance Guide | HoloLens-assisted calibration |
Support & Service
24/7 Paint Sector Support:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
Degassing modules
Torque spindles
Agitator blades
Color Consistency Protocol:
Shear rate optimization reports
Packaging integrity validation
