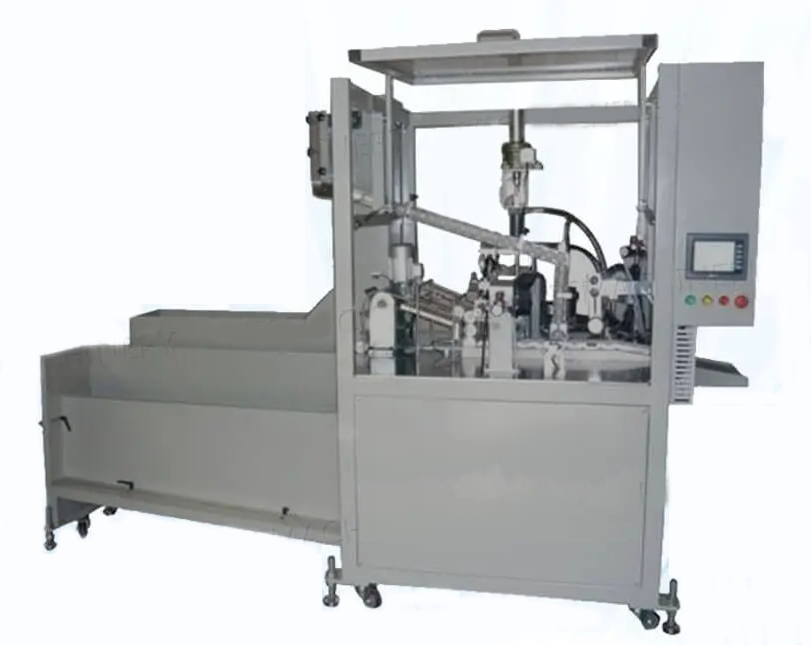

Integrated Cartridge Filling & Capping System
Precision Dual-Function Automation ? 120 Units/Min ? ±0.5% Accuracy ? cGMP/EHEDG/FDA Tri-Compliance
| Parameter | CF-5100 (Standard) | CF-5200X (ATEX) | CF-5300P (Pharma-Grade) |
|---|---|---|---|
| Cartridge Capacity | 5-500ml (±0.5%) | 5-500ml (±0.8%) | 5-500ml (±0.3%) |
| Throughput | 120 Units/Min | 110 Units/Min | 100 Units/Min |
| Accuracy | ±0.5% Volumetric | ±0.8% | ±0.3% |
| Viscosity Range | 50-500,000 cP | 100-300,000 cP | 10-1,000,000 cP |
| Filling Technology | Servo Piston + Mass Flow Meter ? 0.1ml Resolution ? Real-Time Density Compensation ? Flow Rate: 80ml/sec | ATEX Gear Pump | Peristaltic Pump (FDA) |
| Capping Technology | TorqueMaster?: ? 0.5-10 N·m Range ? ±0.5% Accuracy ? Cap Types: Screw ? Snap ? Crimp ? Vision-Guided Alignment | Magnetic Clutch | Servo Stepper Motor |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | Glass-Lined Path |
| Changeover Time | <30s (Tool-Free) | <45s | <20s |
| Contamination Control | ZeroCross?: ? Isolated Fluid Paths ? Air-Knife Purge (40bar) ? <0.1ppm Carryover ? Color-Coded Quick-Change | VHP Sterilization | SIP/CIP Validation |
| Oxygen Barrier | N? Blanketing (O?<0.1%) ? Inert Gas Flushing ? Real-Time Oxygen Monitoring ? Double Laminar Seal | Same | VHP-Compatible |
| Certifications | CE, ISO 9001 | ATEX Zone 22 | FDA 21 CFR 211 |
Performance Validation:
| Product | Viscosity | Fill Accuracy | Cap Torque Accuracy |
|---|---|---|---|
| Silicone Sealant | 150,000 cP | ±0.42% | ±0.48% |
| Epoxy Resin | 20,000 cP | ±0.38% | ±0.52% |
| Pharmaceutical Gel | 80,000 cP | ±0.28% | ±0.35% |
| Component | Technology | Precision |
|---|---|---|
| Vision System | 5MP Camera + AI Thread Detection | ±0.1° Alignment |
| Torque Sensor | Nanoscale Strain Gauge | ±0.3% Accuracy |
| Defect Rejection | Spectral Analysis | 99.99% Accuracy |
1. Cartridge Infeed → 2. Nitrogen Purging (O?<0.3%) → 3. Precision Filling (±0.5%) → 4. Air-Knife Nozzle Clean → 5. Cap Orientation → 6. Torque Capping (±0.5%) → 7. Helium Leak Test → 8. Laser Coding
Cycle Time: 0.5 seconds/unit
Dual-Process Precision
? Micro-Dosing Excellence: | **Component** | **Performance**| |----------------------|------------------------| | Servo Piston| 0.05μL Resolution | | Flow Meter| ±0.1% Density Accuracy | | Temp Control| ±0.2°C Peltier System | ? Zero-Leak Guarantee: 1. Triple-Lip Seal Design 2. 100% Helium Mass Spec Test 3. <10?? mbar·L/s Standard ? Pharma-Grade Architecture: - USP <1207> Package Integrity Validation - Ra<0.4μm Electropolished Surfaces - ATP<3 RLU Cleanability
? FDA 21 CFR Part 211 ? EU GMP Annex 1 ? ISO 13485:2016
"After implementing CF-5100:
Output: 65 → 120 Units/Min (+85%)
Material Waste: 3.2% → 0.08%
Leakage Failures: 1.5% → 0.01%
ROI Period: 4 months"
