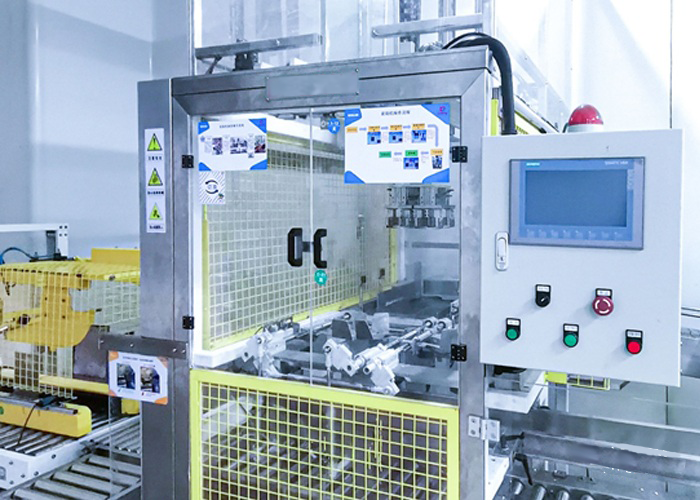

Carton Box Packer
It can automatically complete carton box unpacking, packing and sealing, and is usually used in the back-end packaging of 0.5-4L keg filling lines. The parameters can be set according to the carton sp
- Brand： glzon
- Model： GZM_50v
Product Introduction: Carton Box Packer
AI-Driven Automation for High-Speed Carton Packaging
Shanghai Guangzhi Automation’s Carton Box Packer delivers end-to-end carton forming, filling, and sealing at industrial scale. Combining robotic precision with AI vision, it achieves ±0.5mm positioning accuracy and processes 200,000 boxes/hour – slashing labor costs by 30% while eliminating packaging errors. Ideal for e-commerce, pharmaceuticals, food, and logistics sectors requiring flexible, zero-defect packaging.
Core Technologies
AI Vision Guidance System
3D laser scanners + CCD cameras detect product dimensions/orientation.
Self-optimizing robotic paths for mixed-size cartons (RSC, display boxes, trays).
High-Speed Robotic Handling
6-axis servo robots (0.05mm repeat accuracy; 1,800kg payload).
12+ pre-programmed stacking patterns (brick, pyramid, pinwheel).
Modular Smart Design
Tool-free changeover in ≤5 minutes for carton sizes (L: 150–600mm × W: 240–600mm × H: 30–200mm).
IoT-enabled HMI with OEE tracking and remote diagnostics.
Sustainable Operation
On-demand box forming reduces cardboard waste by 20%.
Energy recovery system cuts power consumption by 35% (noise: ≤68 dB(A)).
Technical Specifications
| Parameter | Specification |
|---|---|
| Throughput | 200,000 boxes/hour (standard cartons) |
| Carton Size Range | 150–600mm (L) × 240–600mm (W) × 30–200mm (H) |
| Positioning Accuracy | ±0.5mm (AI-calibrated) |
| Power Requirements | 380V/50Hz, 4.5–6.0 kW + 0.7 MPa air |
| Changeover Time | ≤5 minutes (electric adjustment) |
| Integrated Strapping | Optional 4-channel station (80,000 boxes/h) |
| Compliance | CE, ISO 13849-1, FDA 21 CFR Part 11 |
Industry Applications
E-commerce Fulfillment: Variable-size parcel packaging (e.g., Amazon-style on-demand box forming).
Pharmaceuticals: Sterile carton sealing with in-line QC sampling (GMP-compatible).
Food & Beverage: High-speed case packing of bottles/cans (up to 12 cartons/minute).
Chemical Packaging: ATEX-certified version for hazardous materials.
Operational Advantages
Labor Reduction: Replaces 8+ workers; ROI in 6–12 months.
Zero Product Damage: Vacuum grippers + adaptive force control.
Eco-Efficiency: Hot-melt sealing replaces plastic tape; cardboard usage minimized.
Scalability: Add-on modules for palletizing or 3D label printing.
Safety & Customization
360° Safety Guarding: Laser scanners + interlocked access gates (ISO 13849-1 PLd).
Upgrade Options:
Washdown-ready IP66 version (food/pharma).
Explosion-proof design (ATEX Zone 1).
-30°C to 50°C operation.
