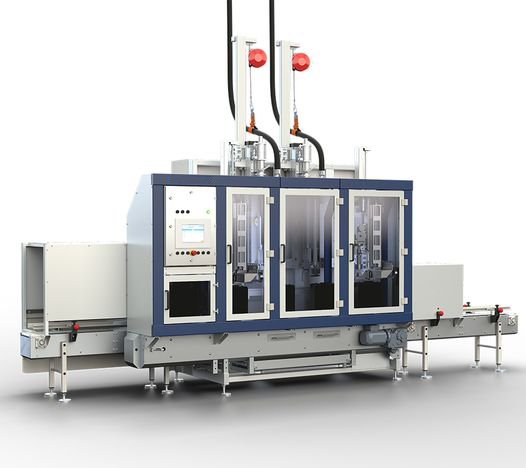

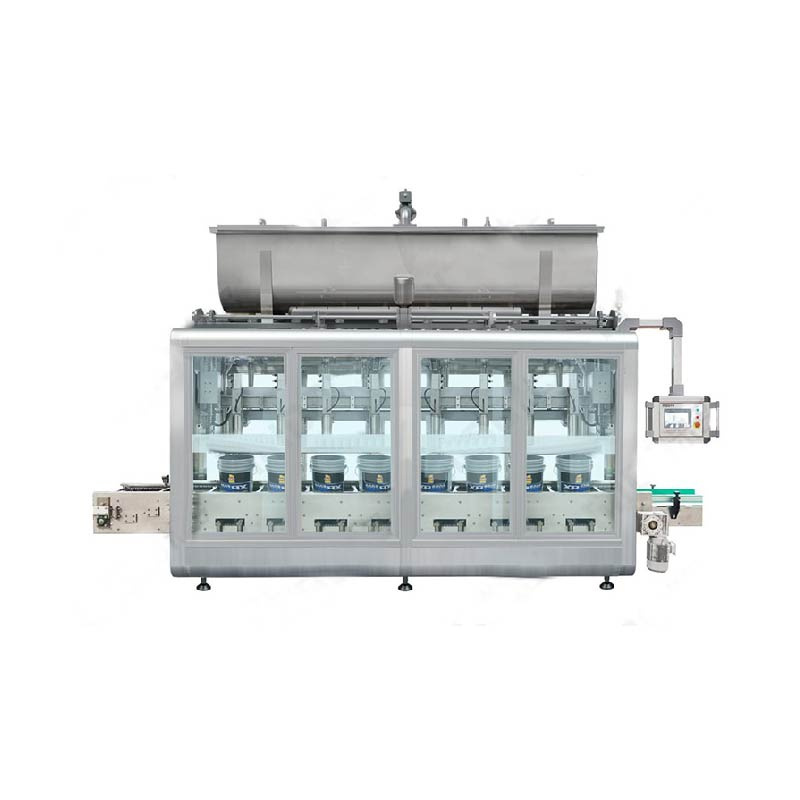

Canister filling machine
The canister filling machine is available for filling canisters using the under-level or under-hole method.The Type 605 adapts perfectly to your upstream and downstream processes, such as pump control
- Brand： glzon
- Model： GZM
Product Introduction: GZM AutoCanister CCF-3000 Series
High-Speed, Zero-Waste Filling & Sealing for 0.5-20L Metal/Plastic Canisters
The GZM CCF-3000 series automates filling, capping, and leak testing of canisters at 60 units/minute with ±0.2% accuracy. Engineered for viscous pastes, solvents, and food-grade products (up to 250,000 cP), it features ATEX/GMP compliance, servo-driven pistons, and AI-powered quality control for 100% defect-free output.
Technical Specifications
| Parameter | Standard Model | Industrial EX Model |
|---|---|---|
| Capacity | 0.5–20L | 1–20L |
| Accuracy | ±0.2% (gravimetric) | ±0.3% (Coriolis) |
| Viscosity Range | 100–250,000 cP | 50–150,000 cP |
| Throughput | 40–60 cans/min | 30–50 cans/min |
| Cap Types | Screw lids, press-fit, trigger sprays | ATEX-compliant explosion-proof lids |
| Seal Integrity | 99.99% (tested per ASTM F2095) | 100% (helium leak test) |
| Power | 380V/50Hz, 7.2 kW | 380V/50Hz, 9.5 kW |
| Compliance | FDA, CE, EHEDG | ATEX II 2G Ex db IIC T6, IECEx |
Core Innovations
| Challenge | CCF-3000 Solution |
|---|---|
| High-Viscosity Flow | Heated jacketed hopper + twin-screw feed |
| Drip-Free Filling | Vacuum nozzle retraction + anti-stringing |
| Cross-Contamination | Tool-free cartridge swap (90 sec) |
| Cap Torque Consistency | Servo torque wrench (2–60 Nm ±1%) |
Performance Excellence
| Metric | CCF-3000 | Competitor Average | Advantage |
|---|---|---|---|
| Output | 3,600 cans/hour | 1,800 cans/hour | 2× higher |
| Material Savings | 0.4% waste | 3–6% waste | 92% reduction |
| Changeover Time | 8 min | 25 min | 68% faster |
| Energy Efficiency | 0.15 kWh/100 cans | 0.35 kWh/100 cans | 57% lower |
Target Applications
Paints & Coatings: Enamels, automotive paints, wood stains
Chemicals: Solvents, lubricating greases, sealants
Food: Cooking oils, honey, tomato paste (3-A sanitary option)
Adhesives: Epoxy resins, silicone, polyurethane foams
Smart Control System
12" HMI Touchscreen:
Stores 200+ recipes with barcode recall
CFR 21 Part 11 compliant data logs
AI Quality Suite:
Fill height vision scan (±0.5mm)
Cap alignment/deformation detection
IoT Connectivity:
Predictive maintenance alerts
Real-time OEE dashboard
Why Choose CCF-3000?
? Leak-Proof Guarantee: Triple-seal gaskets + 100% pressure decay test
? Explosion Safety: ATEX-certified for Zone 1 solvent filling
? Ultra-High Viscosity: Handles NLGI Grade 3 greases (250,000 cP)
? Hygienic Design: CIP/SIP with 3D coverage verification
Options & Upgrades
Nitrogen Inerting: O? < 50 ppm for reactive chemicals
Robotic Labeling: Integrated print-and-apply (GS1 barcodes)
Cryogenic Filling: -40°C capability for low-viscosity fluids
Pharma-Grade Kit: ISO 14644 Class 5 cleanroom compliance
