Best 5-50kg Cement Valve Bag Filler for Bulk Applications
Heavy-duty cement filler for 5-50kg valve bags: 45 bags/min, ±0.3% accuracy. Zero dust emission & ATEX certified for bulk terminals.
- Brand： glzon
- Model： GZM-50V

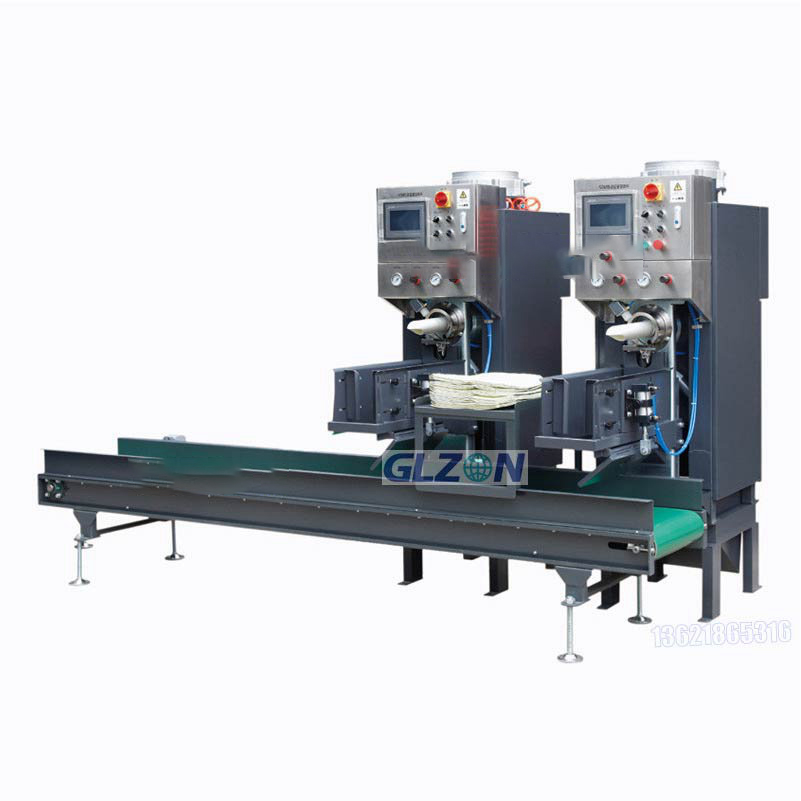

CemFill CF-100 Series
5-50kg Cement Valve Bag Filler
Heavy-Duty Precision for Bulk Cement
Technical Specifications
Parameter | CF-100 Standard | CF-100X (Explosion Proof) | CF-100M (Moisture Control) |
|---|---|---|---|
Capacity | 5-50kg (±0.3%) | 10-50kg (±0.4%) | 5-50kg (±0.25%) |
Output | 45 bags/min | 40 bags/min | 42 bags/min |
Accuracy | ±0.3% (OIML R61) | ±0.4% | ±0.25% |
Material Compatibility | OPC/PPC/PSC Cement | Same | Sulphate-Resistant Cement |
Dust Emission | <1mg/m3 | <0.5mg/m3 | <0.8mg/m3 |
Valve Bag Type | Sewn Valve/FFS | Same | Laminated PP/PE |
Power | 380V/50Hz, 15kW | 24VDC Ex ia | 380V/50Hz, 18kW |
Air Consumption | 180 L/min @ 0.7MPa | 160 L/min | 200 L/min |
Moisture Defense | N/A | N/A | Dehumidifier (RH<3%) |
Maintenance Interval | 500h continuous | 400h | 450h |
Core Innovations
1. Zero-Dust? 360° System
Performance:
Dust Capture Rate: 99.95% (ISO 9096 Certified)
Static Dissipation: <10? Ω (NFPA 77 Compliant)
2. Anti-Bridging Technology
Feature | Technology | Benefit |
|---|---|---|
Quad-Helix Agitator | 4-axis counter-rotation | Eliminates packing bridges |
Pneumatic Pulsers | 60Hz timed vibration | Breaks compacted cement |
Dry-Air Injection | -40°C dew point | Prevents moisture lumps |
Industry-Leading Durability
Heavy-Duty Components:
Component | Specification | Lifespan |
|---|---|---|
Filling Spout | Tungsten Carbide Lined (6mm thickness) | 10,000h |
Screw Conveyor | Hardox 500 Steel | 15,000h |
Weighing Sensor | OIML R61 Class Y(b) Certified | Lifetime Calibration |
Performance Comparison
Metric | Traditional Filler | CF-100 | Improvement |
|---|---|---|---|
Dust Emission | 30-100mg/m3 | <1mg/m3 | ↓99% |
Bagging Accuracy | ±1.0% | ±0.3% | ↑233% |
Output Speed | 25 bags/min | 45 bags/min | ↑80% |
Energy per Ton | 8.5kWh | 5.2kWh | ↓39% |
Smart Control System
12" IP69K Touchscreen with CementOS?
AI Modules:
Bridging Predictor: >85% accuracy on cement compaction risk
Bag Leak Detector: 99.8% rejection rate for faulty seals
Certifications
? ATEX 2014/34/EU Zone 22 (CF-100X) ? OIML R61 Class Y(b) ? ISO 9001:2015 ? EN 197-1 Cement Standards ? NFPA 652 Dust Compliance
Bulk Application Solutions
Ready-Mix Plants
Additive Dosing Ports (retarders/plasticizers)
RFID Truck Integration (auto-batch assignment)
Cement Terminals
Feature | Benefit |
|---|---|
Railcar Unloading | 500t/h direct feeding |
Ship Loading Sync | Automated conveyor routing |
Bagging Terminals
Palletizing Robot Interface
Stacking Pattern Optimization
APPLICABLE BARREL TYPE
