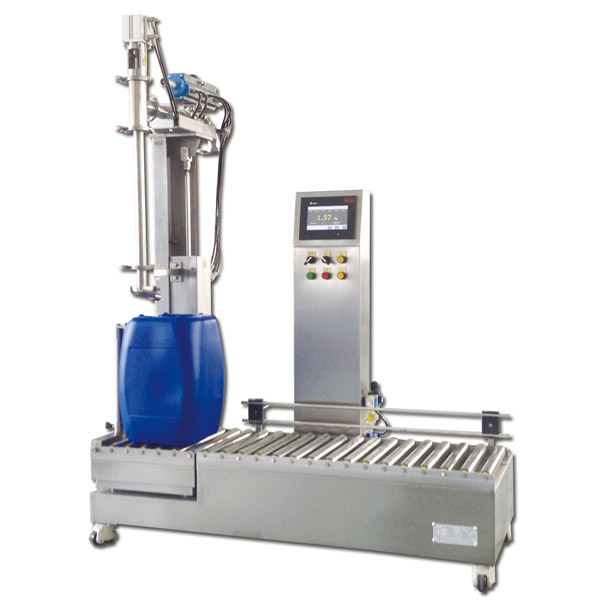

High-precision 25L jerrycan filling machine with anti-foam diving nozzle. Eliminate bubbles and overflow with bottom-up filling technology. Perfect for detergents, chemicals, and foamy liquids. Request a quote!
Chemical Industry: Quantitative filling of non-foaming, flammable explosive materials (resins, additives, industrial oils, paints, chemical solvents);
Coating Industry: Filling flammable paints and additives, with anti-splash design to keep barrels clean and operation safe;
Resin Processing Industry: Quantitative filling of non-foaming resins, ensuring accuracy and reducing material waste;
Other Fields: Filling non-foaming, easily explosive liquids requiring explosion-proof protection, adapting to dangerous chemical production standards.
Parameter Name | Specific Specifications |
|---|---|
Maximum Weighing Capacity | 30kg |
Minimum Sensitivity | 10g |
Filling Error | ±10-20g (depending on filling speed) |
Filling Speed | 100-150 barrels/hour (depending on feed flow rate) |
Applicable Containers | ≤Ф350×h500mm small-mouth barrels, open-mouth barrels |
Explosion-Proof Rating | EXdiaIIBT4 |
Power Supply | AC220/50Hz |
Air Supply | 0.4-0.8Mpa |
Operating Temperature | -10℃-40℃ |
Control Method | 2-speed pneumatic control |
Filling Method | Insertion type, on liquid surface |
Weighing Platform Dimensions | 400×400mm |
Temporary Storage Platform | 400×1000mm |
Structural Material | SUS304 stainless steel |
Gun Head Piping | SUS304 stainless steel and PTFE (316L optional) |
Material Interface | DN40 quick-connect pagoda connector, flange connector optional |
Air Source Interface | 8mm air hose connection |
Full Explosion-Proof Design: EXdiaIIBT4 rating, preventing fires and explosions in flammable and explosive environments;
Stable PLC Control: PLC programmable controller, ensuring stable operation, long service life and low failure rate;
Easy-Maintain Filling Gun: Proprietary design, quick manual disassembly for convenient maintenance and cleaning;
Corrosion-Resistant Sealing: PTFE sealing system, solvent/acid/alkali resistant with long service life;
Anti-Splash Insertion Filling: Insertion-type gun prevents material splashing and reduces waste;
Dual-Stage Automatic Filling: Improves filling accuracy for different liquid sizes;
Intelligent Protection: No filling if the gun is not inserted into the barrel, avoiding misoperation;
Automatic Gun Lifting: Lifts automatically after filling, waiting for the next cycle;
Adjustable Gun Height: Manual adjustment for different barrel heights, strong versatility;
Empty Barrel Detection: Avoids invalid filling and material waste;
Emergency Manual Operation: Manual buttons for emergencies to ensure production continuity;
Dual-Window Display: Shows target quantity, filling volume, container count, date and time clearly;
Parameter Storage: Stores 30 sets of filling parameters for quick recall;
Anti-Interference Calibration: Digital calibration resists vibration, ensuring accuracy in complex environments;
Self-Diagnosis: Timely fault detection and solution;
Emergency Stop: Cancels filling immediately in emergencies, protecting personnel and equipment;
One-Click Operation: Start—Drumhead Descends—Automatic Tare—Filling—Drum Lifting, simple and efficient;
Defoaming Function & Long Filling Valve: Equipped with defoaming function and long filling valve for better performance.
Manual container alignment with the filling gun;
Press [Start] to activate the machine;
Filling gun automatically inserts into the container;
Automatic tare calculation for empty barrels;
Automatic dual-speed filling (fast for efficiency, slow for precision);
Gun lifts automatically after reaching target filling volume;
Error detection and display for abnormalities;
Manual unloading and capping to complete the process.
