Guangzhi's GXP-4500 fills hazardous liquids into drums with ±0.1% weighing accuracy while capturing 99.7% VOCs. Integrates thermal/carbon purification, ATEX safety, and closed-loop filling. Processes acids/solvents at 40 drums/hour. Complies with EPA, ISO 16000. Reduces emission costs by 65% vs. standalone systems. Ideal for pharma waste and chemical recovery.

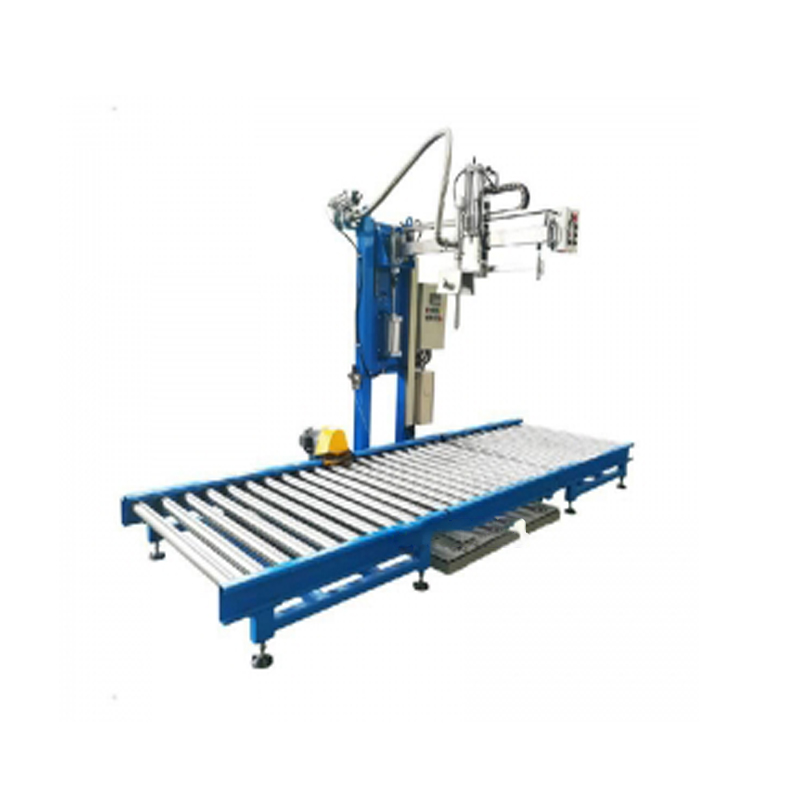

Zero-Emission Precision Filling for Hazardous Liquids
The Guangzhi EcoFill GXP-4500 integrates gravimetric weighing (±0.1% accuracy), closed-loop filling, and integrated exhaust gas purification for solvents, acids, and VOCs. Engineered for chemical waste treatment and pharma, it captures 99.7% fumes while filling 200L drums at 40 drums/hour, complying with EPA, ATEX, and ISO 16000 air quality standards.
| Subsystem | Function | Certification |
|---|---|---|
| Weighing & Filling | Coriolis mass flow + load cell cross-verification | OIML R60 Class 0.5 |
| Gas Purification | Activated carbon + thermal oxidizer (99.7% DRE*) | EPA Method 25A |
| Containment | Double diaphragm sealing + nitrogen inerting | EN 13341-1 pressure vessels |
| Safety Control | LEL monitoring + auto shutdown | ATEX II 2G Ex db IIC T6 |
| *Destruction & Removal Efficiency |
| Parameter | Specification |
|---|---|
| Filling Range | 50–220 L (200L standard) |
| Accuracy | ±0.1% (mass flow) / ±0.05% (load cell) |
| Fume Capture Rate | >99.7% (at 50 m3/h extraction) |
| VOC Abatement | 99.5% (via RTO/adsorption) |
| Materials Handled | Acids, solvents, VOCs (pH 0-14) |
| Drum Types | Steel/plastic/IBCs (UN-certified) |
| Power | 480V/60Hz, 32 kW (RTO: 55 kW optional) |
| Footprint | 6.5 × 3.2 × 3.8 m (modular) |
| Contaminant | Inlet (ppm) | Outlet (ppm) | Reduction | Standard |
|---|---|---|---|---|
| Benzene | 1,200 | <0.5 | 99.96% | EPA NAAQS |
| Acetone | 8,500 | 2.1 | 99.98% | EU Solvent Directive |
| HCl Vapors | 450 | 0.3 | 99.93% | OSHA PEL |
Triple-Containment Filling:
Primary: Sealed drum adapter
Secondary: Negative pressure hood
Tertiary: Building ventilation interface
Emergency Protocols:
Auto nitrogen purge on LEL >25%
Spill tray with chemical neutralization
Purification Flexibility:
Configurable: Carbon adsorption (low VOC) or RTO (high VOC)
Hazardous Waste: Spent solvents, acid regeneration
Pharma Synthesis: API intermediates, reaction quenching
Chemical Manufacturing: Monomer extraction, catalyst recovery
Lab Chemical Recycling: HPLC waste, halogenated solvents
? Regulatory Assurance: Pre-configured for EPA, REACH, and COSHH
? Cost Recovery: Purified solvent reuse (85% recovery rate)
? Zero Downtime: Hot-swappable carbon cartridges
? Data Integrity: CFR 21 Part 11 compliant logs
APPLICABLE BARREL TYPE
