Shanghai Guangzhi’s Filler achieves ±0.5% accuracy for 200ml-5L detergents at 150 bpm. Features foam suppression, ATEX option & CIP cleaning. FDA/CE compliant.

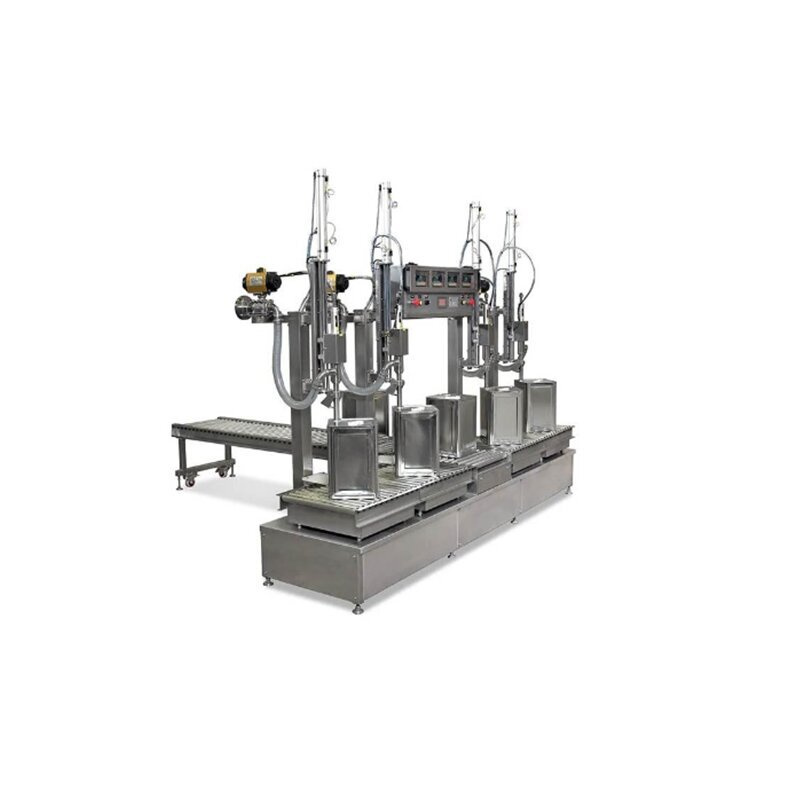

Shanghai Guangzhi Automation's advanced filling solution masters high-viscosity (up to 2,500 cP) and high-foam liquids like laundry detergents, hand soaps, and disinfectants. Engineered with patented foam suppression technology and servo volumetric control (±0.5% accuracy), it achieves 150 bottles/minute for 200ml-5L HDPE/PET bottles while eliminating spillage and cross-contamination.
1. Intelligent Foam & Viscosity Control
Vacuum-Assisted Filling?: Draws vacuum (≤-0.8 bar) during fill cycles to collapse foam 80% faster.
Viscosity-Adaptive Pistons: Servo-driven cylinders dynamically adjust flow rates for 50-2,500 cP fluids.
2. Zero-Spills Guarantee
Triple-Seal Nozzles: Teflon-coated filling heads + compressed air barrier + drip trays (residual ≤0.05ml).
SplashGuard? Encapsulation: Clear polycarbonate barrier retains splashes during E-stop events.
3. High-Speed Flexibility
Quick-Change Tooling: <3 min format switch between bottle types (sizes: ?40-120mm).
Robot-Assisted Infeed/Outfeed: 6-axis Delta robots handle 5kg bottles at 0.3s/carton.
| Parameter | Specification |
|---|---|
| Filling Range | 200ml–5L (±0.5%) |
| Max Viscosity | 2,500 cP |
| Speed | 80–150 bpm (size-dependent) |
| Foam Suppression | ≤2% headspace foam (vs. industry avg. 8%) |
| Bottle Material | HDPE/PET/LDPE |
| Power | 380V/50Hz, 9kW |
| Air Consumption | 100 L/min @ 0.7MPa |
| CIP Cleaning | ≤7 min full sanitization |
| Footprint (L×W×H) | 3200×1800×2200mm |
| Product Challenge | Solution | Validation Standard |
|---|---|---|
| High-Foam Detergent | Vacuum fill + flow stabilizer | ASTM D4356-84 (foam collapse) |
| Thick Hand Soap | Heated hopper (45°C) | Brookfield RV torque curve |
| Bleach Solutions | Corrosion-resistant CeramPlast? | ISO 9227 salt spray test |
Case Study: Unilever Tier 1 Supplier
Challenge: 14% spillage filling 1L detergent bottles + foam-induced downtime
Solution: Vacuum-assisted filling + robot palletizing
Results:
0.2% spill rate
142 bottles/min sustained output
ROI in 6 months
| Certification | Coverage |
|---|---|
| FDA 21 CFR 210 | Food-contact surface compliance |
| ATEX II 2G | Zone 22 combustible dust |
| ISO 15378 | Pharmaceutical packaging traceability |
| Critical Options | Technical Value |
|---|---|
| Integrated Checkweigher | ±0.1g fill weight monitoring |
| RFID Serialization | Track-and-trace for Walmart/Amazon |
| Allergen Cleaning Kit | <10 ppm cross-contact assurance |
Support:
24/7 remote diagnostics with live OEE dashboard
Global critical parts dispatch < 48h (nozzles/seals/pistons)
