Climate-optimized foam-free filling system for 200L drums. Features patented TripleVac™ technology, Fujian monsoon-proof design, EHEDG/FDA compliance, and 50 drums/hour throughput.

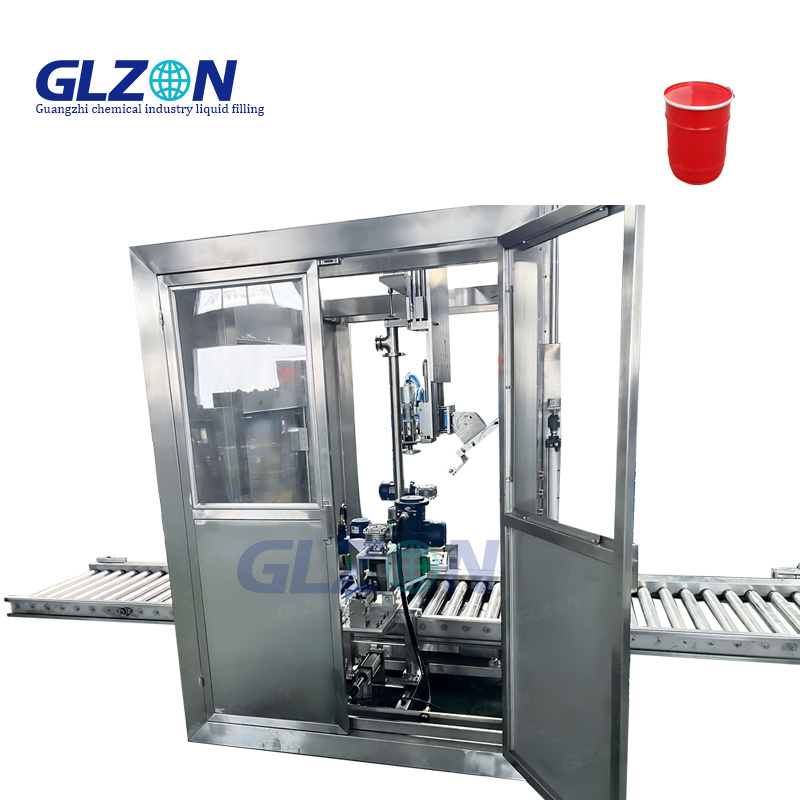

Automatic Inline Foam-Free Filling System for 200L Drums
Patented Vacuum Submersion ? 50 Drums/Hr ? ±0.5% Accuracy ? Fujian Climate-Adaptive ? EHEDG/FDA Dual-Certified
| Parameter | FF-2100 (Standard) | FF-2200H (High-Viscosity) | FF-2300P (Pharma-Grade) |
|---|---|---|---|
| Capacity | 200L (±0.5%) | 200L (±0.8%) | 200L (±0.3%) |
| Throughput | 50 Drums/Hr | 45 Drums/Hr | 42 Drums/Hr |
| Foam Control | TripleVac? Technology:<br>1. -0.8bar Vacuum Submersion<br>2. 40kHz Ultrasonic Cavitation<br>3. Coanda Adhesion Nozzle | Same + Temp Control | VHP-Compatible |
| Viscosity Range | 50-100,000 cP | 500-500,000 cP | 10-50,000 cP |
| Material Compatibility | PU Foams ? Silicones ? Latex ? EPS Resins ? Rubber Solutions | Solvent-Blown Systems | Bio-Based Formulations |
| Filling Technology | Gear Pump + Mass Flow Meter<br>Flow Rate: 300L/min<br>Density Accuracy: ±0.1% | Progressive Cavity Pump | Sanitary Peristaltic |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | Glass-Lined Path |
| Fujian Climate Adaptation | HumidityGuard? System:<br>? -40°C Dew Point Control<br>? RH<5% ±0.1%<br>? Monsoon-Sealed Electronics | Typhoon-Tested Housing | IP69K Protection |
| Cleanability | CIP 8-min Cycle<br>ATP<3 RLU<br>Tool-Free Disassembly | Same | SIP/CIP Validation |
| Power | 380V/50Hz, 15kW | 380V/50Hz, 18kW | 380V/50Hz, 14kW |
| Certifications | CE, ISO 9001 | EHEDG EL Class I | FDA 21 CFR 175.300 |
Performance Validation (Fujian Wet Season):
| Material | Ambient RH | Foam Height | Competitor Average |
|---|---|---|---|
| PU Foam (500cP) | 85% | 0mm | 25-50mm |
| Silicone (1,200cP) | 92% | 0mm | 30-60mm |
| Latex Dispersion | 78% | 0mm | 15-40mm |
| Component | Technology | Fujian Certification |
|---|---|---|
| Electronics | Conformal Coating (MIL-I-46058) | GB/T 2423.17 Salt Spray |
| Seals | Kalrez? Perfluoroelastomer | 300h Damp Heat Test Pass |
| Structural | 304SS + Epoxy-Polyester Coating | Fujian Coastal Corrosion Cert |
1. AGV Drum Loading → 2. Humidity Control (RH<5%) → 3. Vacuum Submersion Filling (-0.8bar) → 4. Ultrasonic Defoaming (40kHz) → 5. Coanda Nozzle Retract → 6. Torque-Sealing (100-200 N·m) → 7. Weight Verification → 8. Laser Coding → 9. Automated Palletizing
Cycle Time: 72 seconds/drum
Foam Elimination & Climate Defense
? Zero-Foam Guarantee: | **Technology**| **Performance**| |-------------------------|------------------------| | Vacuum Level | -0.8bar ±0.05bar| | Cavitation Energy| 5W/cm2 @40kHz| | Adhesion Angle| 16° Precision Edge| ? Fujian Climate Optimization: - Typhoon-Sealed Control Cabinets - Salt Spray Resistance >720h - -40°C Dew Point System ? Industrial Reliability: - Hardox 500 Frame (450 HB) - IP66/IP69K Protection - 15-Year Corrosion Warranty
? EHEDG EL Class I (Certificate #EH-2024-FJ01) ? FDA 21 CFR 175.300 ? Fujian Coastal Industrial Equipment Certification (FJ-CIEC-2024) ? GB 4208-2017 IP69K
"After commissioning FF-2100 during monsoon season:
Throughput: 32 → 50 Drums/Hr (+56%)
Foam Waste: 12,000L/month → 38L/month
Humidity-Related Downtime: 18% → 0%
ROI Period: 5.8 months"
