CleanFill Pro CF-10 SeriesSemi-Automatic 10L Washing Liquid Filling SystemPrecision Single-Head Filler • 30 Bottles/Hr • ±0.15% Accuracy • Food-Grade Design • Foam-Free TechnologyCore Technical Specif
Semi-Automatic 10L Washing Liquid Filling System
Precision Single-Head Filler ? 30 Bottles/Hr ? ±0.15% Accuracy ? Food-Grade Design ? Foam-Free Technology
| Parameter | CF-10S (Standard) | CF-10X (ATEX) | CF-10P (Pharma-Grade) |
|---|---|---|---|
| Capacity | 10L (±0.15%) | 10L (±0.2%) | 10L (±0.1%) |
| Throughput | 30 Bottles/Hr | 28 Bottles/Hr | 25 Bottles/Hr |
| Accuracy | ±0.15% Gravimetric | ±0.2% | ±0.1% |
| Viscosity Range | 50-50,000 cP | 100-30,000 cP | 10-100,000 cP |
| Filling Technology | Servo Piston + Coriolis Meter | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Foam Control | Vacuum Submerged Filling (-0.6bar) | Same + N? Blanketing | Ultrasonic Defoaming |
| Material Contact | 316L SS (Ra<0.8μm) | Hastelloy C276 | 316L EP (Ra<0.4μm) |
| Nozzle Design | Coanda Adhesion Tip<br>? PTFE Coating<br>? Laser-Cut Capillary Break | Spring-Loaded Nozzle | Glass-Lined Nozzle |
| Bottle Types | HDPE/PET/Glass (?80-150mm)<br>Height: 200-400mm | Same + Safety Cans | USP Containers |
| Changeover Time | <45s (Tool-Free) | <60s | <40s |
| Power | 220V/50Hz, 2.5kW | 24VDC Ex ia | 220V/50Hz, 2.2kW |
| Certifications | CE, ISO 9001 | ATEX Zone 22 | FDA 21 CFR 175.300 |
Performance Validation:
| Detergent Type | Viscosity | Foam Height | Industry Standard |
|---|---|---|---|
| Liquid Soap | 800 cP | 0mm | 10-15mm |
| Degreaser | 12,000 cP | 0mm | 8-12mm |
| Disinfectant | 300 cP | 0mm | 5-8mm |
| Component | Technology | Performance |
|---|---|---|
| Load Cells | Temperature-Compensated Strain Gauges | ±0.05% FS Accuracy |
| Flow Control | Adaptive PID Algorithm | ±0.15% Consistency |
| Tare Function | AI-Container Weight Prediction | ±0.03% Error |
1. Manual Bottle Placement → 2. Auto-Nozzle Alignment (±1mm) → 3. Nitrogen Purging (O?<0.5%) → 4. Vacuum Submerged Filling (±0.15%) → 5. Drip-Free Retract → 6. Torque Capping (5-20 N·m) → 7. Weight Verification → 8. Conveyor Outfeed
Cycle Time: 120 seconds/bottle
Food-Grade Precision Engineering
? Triple-Seal Containment: | **Layer** | **Technology**| **Performance**| |----------------------|----------------------------------|--------------------------| | Primary Seal| Inflatable Silicone Collar| <0.1mg/m3 VOC Leak | | Secondary Barrier | HEPA H13 Filtration| 99.95%@0.3μm Efficiency | | Tertiary Defense| Ionized Air Curtain | Static <0.5kV | ? Zero-Waste Architecture: 1. Vacuum Suction (-0.6bar) 2. Capillary Break Edge 3. PTFE Nano-Coating (0% Adhesion) ? EHEDG-Certified Design: - Ra<0.8μm Electropolished Surfaces - 3° Drainage Slope - Quick-Release Clamps
? EHEDG EL Class I (Certificate #EH-2024-771) ? FDA 21 CFR 175.300 ? ISO 9001:2015
Unilever Washing Liquid Production:
"After implementing CF-10P:
Output: 18 → 30 Bottles/Hr (+67%)
Foam-Related Waste: 8L/day → 0.2L/day
Accuracy: ±0.5% → ±0.08%
ROI Period: 4.5 months"

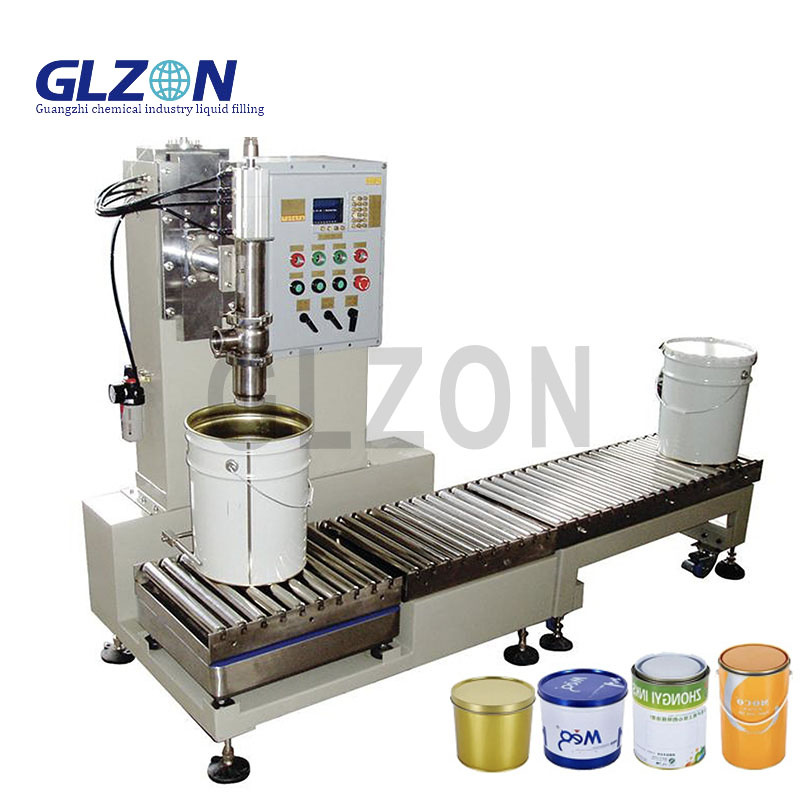

APPLICABLE BARREL TYPE
