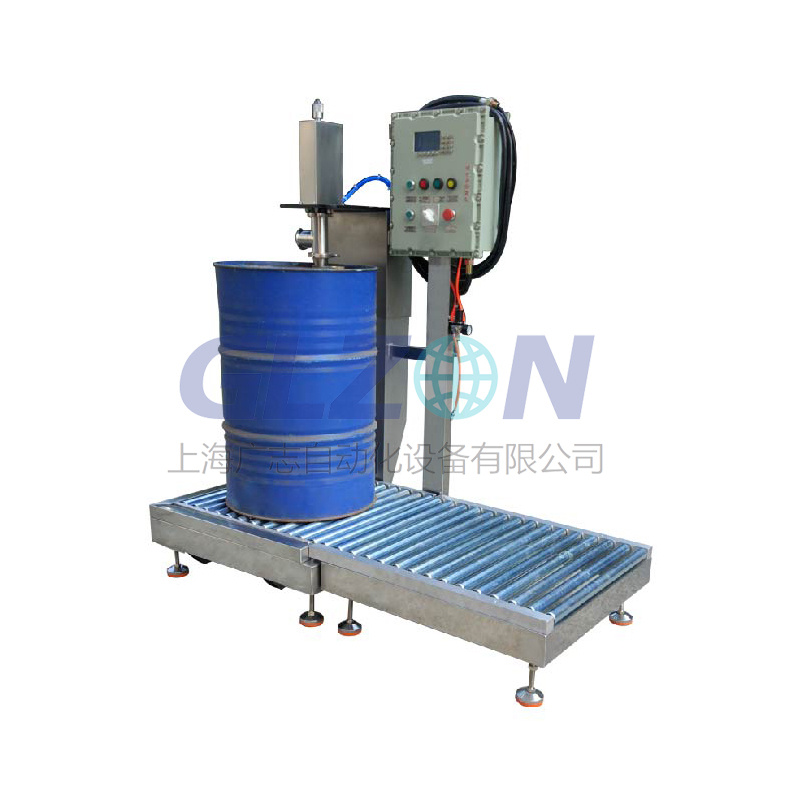

OilMaster OM-2000 SeriesSemi-Automatic 200L Drum/Pail Filling System for Industrial OilsPrecision Gravimetric Filling • 25 Drums/Hr • ±0.1% Accuracy • ATEX/FDA Dual Compliance • Zero-Spill TechnologyC
Semi-Automatic 200L Drum/Pail Filling System for Industrial Oils
Precision Gravimetric Filling ? 25 Drums/Hr ? ±0.1% Accuracy ? ATEX/FDA Dual Compliance ? Zero-Spill Technology
| Parameter | OM-2100 (Standard) | OM-2200X (ATEX) | OM-2300F (Food-Grade) |
|---|---|---|---|
| Capacity | 200L (±0.1%) | 200L (±0.15%) | 200L (±0.08%) |
| Throughput | 25 Drums/Hour | 22 Drums/Hour | 20 Drums/Hour |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.08% |
| Viscosity Range | 10-500,000 cP | 50-300,000 cP | 100-1,000,000 cP |
| Container Compatibility | Steel Drums ? Plastic Pails ? Composite IBCs<br>Lid Types: Bung ? DIN ? Tri-Clamp | Same + Safety Cans | USDA Containers |
| Filling Technology | Coriolis Mass Flow Meter + Gear Pump | ATEX Diaphragm Pump | Sanitary Peristaltic Pump |
| Spill Control | TripleShield? System:<br>1. Vacuum-Assisted Nozzle (-0.6bar)<br>2. Coanda Adhesion Surface<br>3. Ionized Air Curtain | + Nitrogen Blanketing | + VHP Sterilization |
| Material Contact | 316L SS (Ra<0.8μm) | Hastelloy C276 | 316L EP (Ra<0.4μm) |
| Changeover Time | <90s (Tool-Free) | <110s | <75s |
| Power | 380V/50Hz, 7.5kW | 24VDC Ex ia | 380V/50Hz, 6.8kW |
| Certifications | CE, ISO 9001 | ATEX Zone 2 | FDA 21 CFR 177.2600 |
Performance Validation:
| Oil Type | Viscosity | Accuracy | Residual |
|---|---|---|---|
| Hydraulic Oil | 46 cSt | ±0.07% | <0.05L |
| Gear Grease | 320 cSt | ±0.12% | <0.08L |
| Edible Oil | 70 cSt | ±0.05% | <0.03L |
| Technology | Function | Efficiency |
|---|---|---|
| Vacuum Nozzle | -0.6bar Suction | 0 Droplet Formation |
| Coanda Surface | Adhesion Flow Path | 0 Splatter |
| Ionized Air Curtain | Static Dissipation (10? ions/cm3) | <0.5kV Surface Charge |
Industrial Lubricants
| Feature | Technical Solution | Certification |
|---|---|---|
| Foam Control | Deaerator + Vacuum Filling | ISO 12156-1 |
| Water Contamination | Karl Fischer Sensor | ASTM D6304 |
| Oxidation Prevention | N? Blanketing (O?<0.1%) | ASTM D2272 |
Food-Grade Oils
Sanitary Design:
Quality Preservation:
| Technology | Effect |
|---|---|
| UV-C Light Tunnel | 99.99% Microbial Reduction |
| Oxygen Scavenger | O?<0.01ppm |
Chemicals & Solvents
| Safety System | ATEX Compliance | Performance |
|---|---|---|
| Static Control | Conductive Path (<10? Ω) | Spark-Free Operation |
| Vapor Recovery | Activated Carbon Adsorption | 99.95% VOC Capture |
| Corrosion Resistance | Zirconium Alloy Path | HCl/HF Compatibility |
1. Operator Positions Container → 2. Auto-Nozzle Alignment (±1mm) → 3. Nitrogen Purging (O?<0.3%) → 4. Precision Filling (±0.1%) → 5. Vacuum Nozzle Retraction → 6. Torque-Controlled Sealing → 7. Weight Verification → 8. Palletizing
Cycle Time: 144 seconds/drum
Precision & Reliability
? Gravimetric Mastery: | **Component** | **Performance**| |----------------------|------------------------| | Coriolis Meter| ±0.05% Density Accuracy | | Load Cells| Temperature-Compensated ±0.03% | | PID Control | ±0.1% Fill Consistency | ? Zero-Spill Guarantee: 1. Vacuum-Assisted Nozzle (-0.6bar) 2. Coanda Adhesion Technology 3. Ionized Air Curtain (10? ions/cm3) ? Industrial Durability: - Tungsten Carbide Wear Parts (2,200 Hv) - IP66 Washdown Protection - 100,000-Hour MTBF
? ATEX 2014/34/EU Zone 2 ? FDA 21 CFR 177.2600 ? ISO 9001:2015
ExxonMobil Lubricants Plant:
"After implementing OM-2200X:
Output: 15 → 25 Drums/Hour (+67%)
Spill Reduction: 1.8L/shift → 0.05L/shift
Accuracy: ±0.5% → ±0.08%
ROI Period: 6.5 months"
APPLICABLE BARREL TYPE
