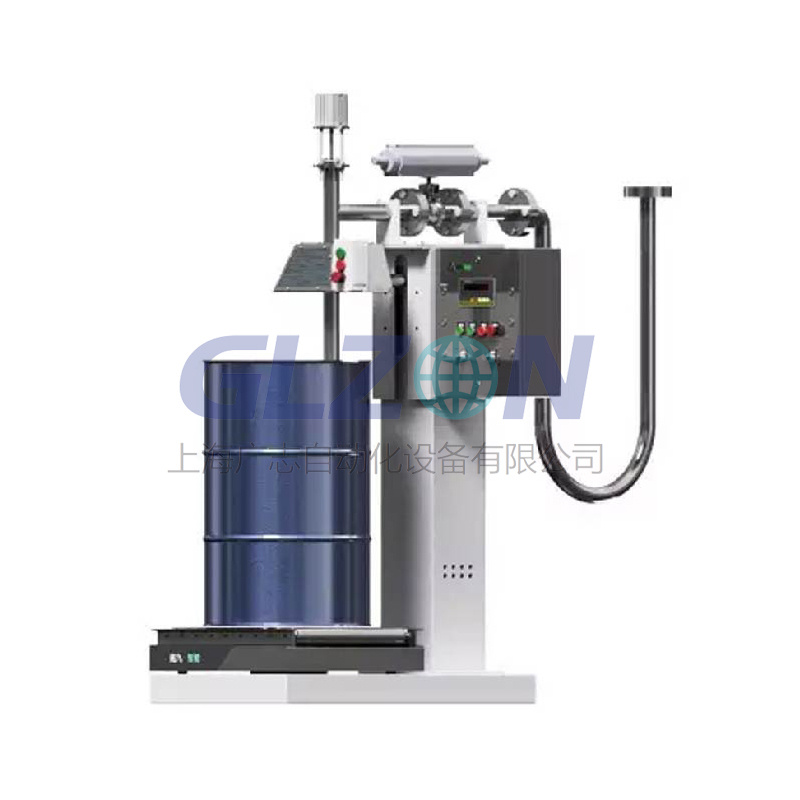

CorroShield CS-9000 SeriesIndustrial 200L Caustic Liquid Filling SystemATEX/FDA Dual Compliance • ±0.1% Accuracy • Zero-Leak Technology • Extreme Corrosion ResistanceCore Technical SpecificationsParam
Industrial 200L Caustic Liquid Filling System
ATEX/FDA Dual Compliance ? ±0.1% Accuracy ? Zero-Leak Technology ? Extreme Corrosion Resistance
| Parameter | CS-9100 (Standard) | CS-9200X (ATEX) | CS-9300P (Pharma-Grade) |
|---|---|---|---|
| Capacity | 200L (±0.1%) | 200L (±0.15%) | 200L (±0.08%) |
| Throughput | 25 Drums/Hr | 22 Drums/Hr | 20 Drums/Hr |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.08% |
| Material Compatibility | NaOH ? HCl ? H?SO? ? HF ? HNO? ? Peroxides | Explosive Combos | USP Chemicals |
| Filling Technology | Air-Operated Double Diaphragm Pump | ATEX Gear Pump | Peristaltic Pump (FDA) |
| Corrosion Resistance | Zirconium Alloy Flow Path<br>? Corrosion Rate: <0.001mm/yr<br>? Temp Range: -20°C to 200°C | Hastelloy C276 | Glass-Lined Steel |
| Containment System | Triple-Seal Defense:<br>1. PTFE Bellows Seal<br>2. Secondary Containment Drip Tray<br>3. Vapor Recovery Unit | + Nitrogen Inerting | + VHP Sterilization |
| Leak Detection | Helium Mass Spectrometry<br>Sensitivity: 10?? mbar·L/s | pH/Conductivity Sensors | TOC Monitoring |
| Safety Systems | Emergency Drench Showers ? Spill Containment Sump ? HF Antidote Port | Same | CIP/SIP Integration |
| Material Contact | Zirconium 702 (R60702) | Hastelloy C276 | 316L EP (Ra<0.4μm) |
| Power | 480V/60Hz, 9.5kW | 24VDC Ex ia | 480V/60Hz, 8.2kW |
| Certifications | CE PED 2014/68/EU | ATEX Zone 1 | FDA 21 CFR 177.2600 |
Corrosion Test Data (ASTM G31):
| Chemical | Concentration | Zirconium Corrosion Rate | 316L SS Rate |
|---|---|---|---|
| HCl | 37% | 0.0005 mm/yr | 25 mm/yr |
| NaOH | 50% | 0.0003 mm/yr | 0.1 mm/yr |
| HF | 10% | 0.0012 mm/yr | Dissolves |
| Layer | Technology | Performance |
|---|---|---|
| Primary Barrier | Double Mechanical Seal | <0.1ml/Year Leakage |
| Secondary Defense | -0.8bar Vacuum Hood | 99.97% Vapor Capture |
| Tertiary Safety | Neutralization Sump (pH 7±0.5) | 100% Spill Containment |
Chemical Processing
| Feature | ATEX Solution | Certification |
|---|---|---|
| HF Handling | Zirconium Alloy Path | NIOSH 7906 |
| Static Control | Ionized Air Curtain (10? ions/cm3) | NFPA 77 |
| Explosion Safety | Nitrogen Inerting (O?<5%) | ATEX Cat. 1G |
Pharmaceuticals
cGMP Compliance:
Data Integrity:
| System | 21 CFR Part 11 Compliance |
|---|---|
| Electronic Batch Record | Audit Trail with Digital Signatures |
| Calibration Logs | Blockchain Timestamping |
Metal Treatment
| Challenge | Innovation |
|---|---|
| Fume Control | Scrubber Integration (99.95% HF Capture) |
| High-Temp Filling | 200°C Capable Path |
| Sludge Handling | Self-Cleaning Ultrasonic Agitator |
**10" HMI with ChemiOS?**
AI-Driven Safety Features:
Hazard Prevention:
| Parameter | Action |
|---|---|
| pH <2 or >12 | Immediate Shutdown |
| HF Vapor >1ppm | VRU Activation + Alarm |
Predictive Maintenance:
| Component | Alert Threshold |
|---|---|
| Seal Wear | Friction >10N |
| Pump Cavitation | Vibration >5mm/s RMS |
| Subsystem | CS-9100 (Zirconium Path) | Industry Standard | Advantage |
|---|---|---|---|
| Flow Meter | Coriolis (Zr Flow Tube) | 316L SS | 100x Corrosion Resistance |
| Valves | PFA-Lined Zirconium | Hastelloy C276 | Zero Galling/Seizing |
| Seals | Kalrez?6375 + PTFE Encapsulated | Viton? | 327°C Temp Resistance |
| Sensors | ZrO? pH Electrodes | Glass Electrodes | HF Compatibility |
Material Science:
Zirconium Superiority:
| Property | Zirconium R60702 | Hastelloy C276 |
|---|---|---|
| HCl Resistance | 0.001 mm/yr | 0.5 mm/yr |
| HF Resistance | 0.003 mm/yr | Dissolves (>5%) |
| Temp Limit | 200°C | 190°C |
1. Drum Loading → 2. Nitrogen Purging (O?<0.5%) → 3. Submerged Filling (±0.1%) → 4. Helium Leak Test → 5. Lid Torque-Sealing (50-150 N·m) → 6. Neutralization Rinse → 7. Palletizing
Cycle Time: 4.8 minutes/drum
? ATEX 2014/34/EU Zone 1 (Category 1G) ? ASME BPE-2022 (Bio-Processing Equipment) ? FDA 21 CFR 177.2600 ? PED 2014/68/EU Category IV
Dow Chemical HCl Packaging Line:
"After 12 months using CS-9100:
Leak Incidents: 8 → 0
Maintenance Cost: 18,000/year**
Accuracy: ±0.8% → ±0.07%
ROI Period: 8 months"
