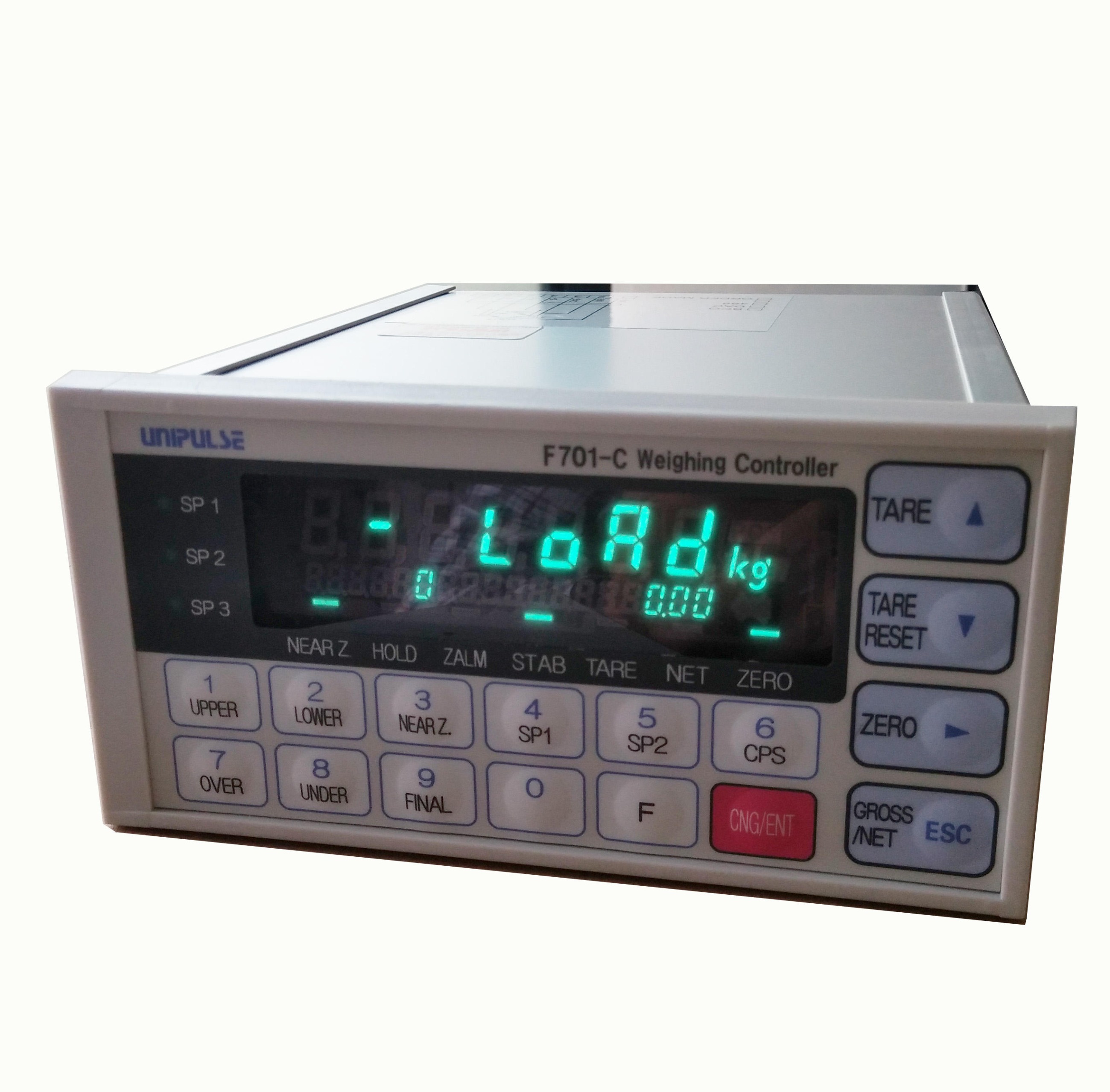

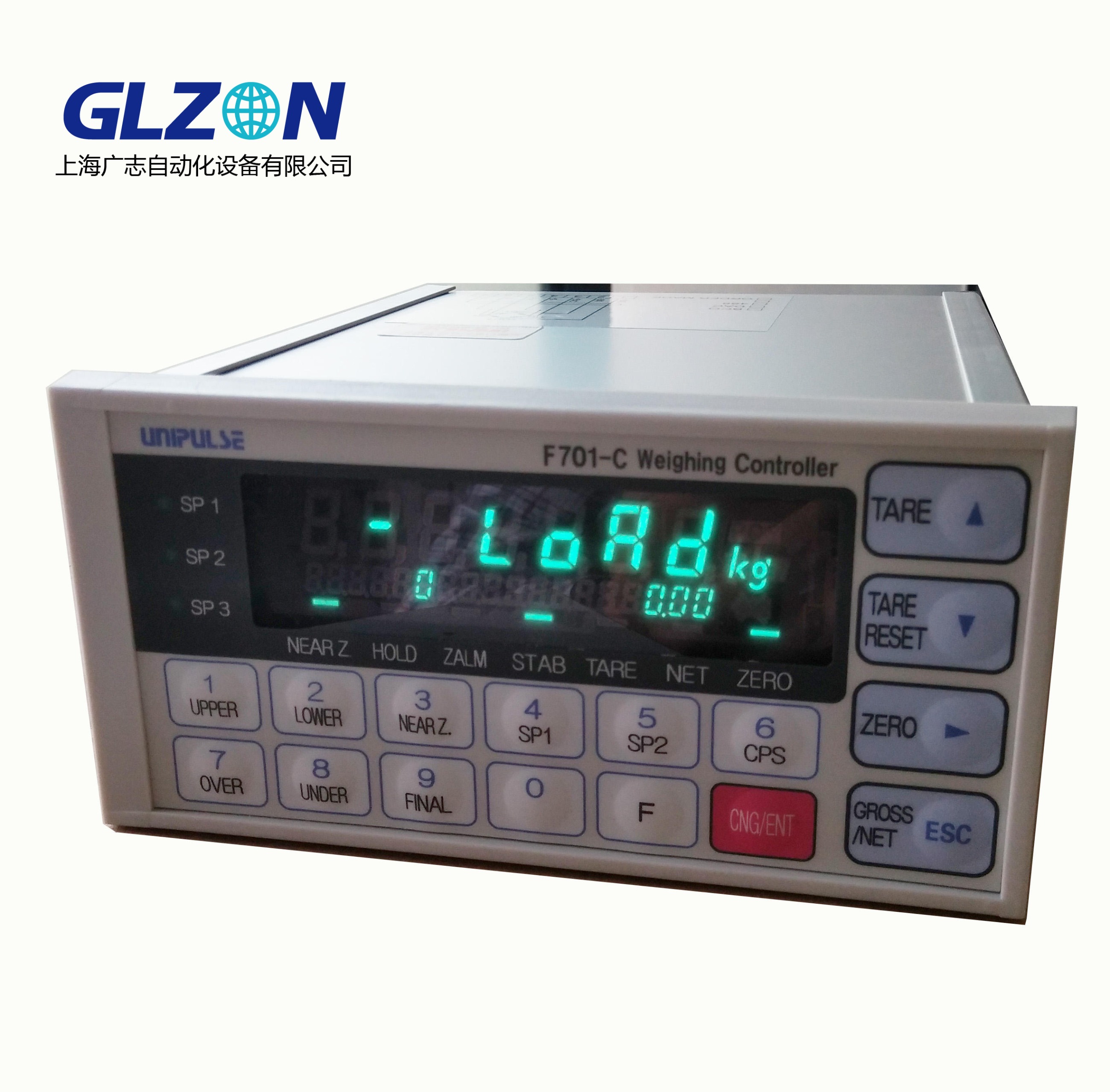

Unipulse F701-C Precision Weighing ControllerIndustrial-Grade Measurement Intelligence for Critical Applications24-bit Resolution • 0.01% Linearity • Multi-Protocol Connectivity • Japanese Engineering
Industrial-Grade Measurement Intelligence for Critical Applications
24-bit Resolution ? 0.01% Linearity ? Multi-Protocol Connectivity ? Japanese Engineering Excellence
| Parameter | Specification | Industry Advantage |
|---|---|---|
| A/D Resolution | 24-bit | 16.7 Million Counts |
| Sampling Rate | 200 Hz | Real-Time Process Control |
| Linearity | ≤0.01% FS | Pharmaceutical-Grade Accuracy |
| Zero Drift | 0.2 μV/°C RTI | Unmatched Thermal Stability |
| Gain Drift | ≤15 ppm/°C | Laboratory-Grade Consistency |
| Excitation Voltage | 10V DC ±5% (120mA max) | Supports 4x 350Ω Load Cells |
| Min. Sensitivity | 0.3 μV/digit | Micro-Gram Resolution |
Performance Comparison:
| Calibration Type | Range | Precision | Conventional Controllers |
|---|---|---|---|
| Zero Adjust | 0-2mV/V | ±0.5μV | ±5μV |
| Gain Adjust | 0.3-3.2mV/V | ±0.1% | ±0.5% |
| Feature | Technology | Performance Impact |
|---|---|---|
| Analog Filters | Bassel LPF (-12dB/oct) | Selectable 2/4/6/8Hz Cutoff |
| Noise Rejection | 80dB CMRR @ 50/60Hz | Critical for EMI Environments |
| Stability | Auto-Tracking Reference | 0.005% FS/Day Drift |
| Component | Specification | User Advantage |
|---|---|---|
| Main Display | 7-Segment VFD (10.4mm Height) | High-Visibility Industrial Use |
| Sub-Display | 4.0mm Character Height | Multi-Parameter Monitoring |
| Units | t/kg/g/N/lb/None | Global Standard Compliance |
| Status LEDs | 12+ Indicators including STAB/PAR/NET | Instant System Diagnostics |
| Parameter | Specification | Industrial Reliability |
|---|---|---|
| Operating Temp | -10°C to +40°C | Uninterrupted Process Control |
| Storage Temp | -20°C to +85°C | Warehouse Durability |
| Humidity | ≤85% RH Non-Condensing | Chemical Plant Resistance |
| Power Input | 100-240V AC ±15% (50/60Hz) | Global Voltage Compatibility |
| Dimensions | 144(W)×72(H)×160(D) mm | DIN-Rail Mountable |
| Interface | Protocol | Industrial Application |
|---|---|---|
| BCO | Parallel Data Output | PLC Direct Integration |
| 485 | RS-485 Modbus RTU | SCADA System Integration |
| DAC | 4-20mA / 0-10V Analog Output | Process Control Loops |
| CC-Link | Industrial Fieldbus | Japanese Manufacturing Systems |
Measurement Integrity
? Laboratory-Grade Accuracy: | **Parameter** | **Performance**| |----------------------|------------------------| | Nonlinearity| ≤0.01% FS | | Noise Floor | 0.3μV/digit | | Long-Term Drift | <0.005% FS/month | ? Intelligent Signal Conditioning: 1. Auto-Zero Tracking 2. Digital Filter Selection 3. Real-Time Noise Analysis ? Industrial Connectivity Suite: - Modbus RTU over RS-485 - CC-Link Fieldbus Integration - Isolated Analog Outputs
Pharmaceutical Manufacturing
| Requirement | F701-C Solution | Validation |
|---|---|---|
| 21 CFR Part 11 | Audit Trail Capability | Electronic Signature Support |
| Micro-Dosing | 0.3μV Resolution | ±0.1mg Accuracy |
| Cleaning Validation | IP64 Equivalent Construction | Dust/Ingress Protection |
Chemical Processing
Hazardous Environment:
Corrosion Resistance:
| Component | Protection |
|---|---|
| Terminals | Gold-Plated Contacts |
| Housing | Chemical-Resistant Coating |
Food Production
| Certification | Feature |
|---|---|
| EHEDG | Cleanable Surface Design |
| HACCP | Material Traceability |
| IP66 | Washdown Protection (Optional) |
National Metrology Institute Japan (NMIJ) Test Report:
"Key Metrics Achieved:
Linearity Error: 0.008% FS
Zero Stability: ±0.15 μV/°C
Gain Drift: 12 ppm/°C
Sampling Accuracy: ±0.002% @ 200Hz"
