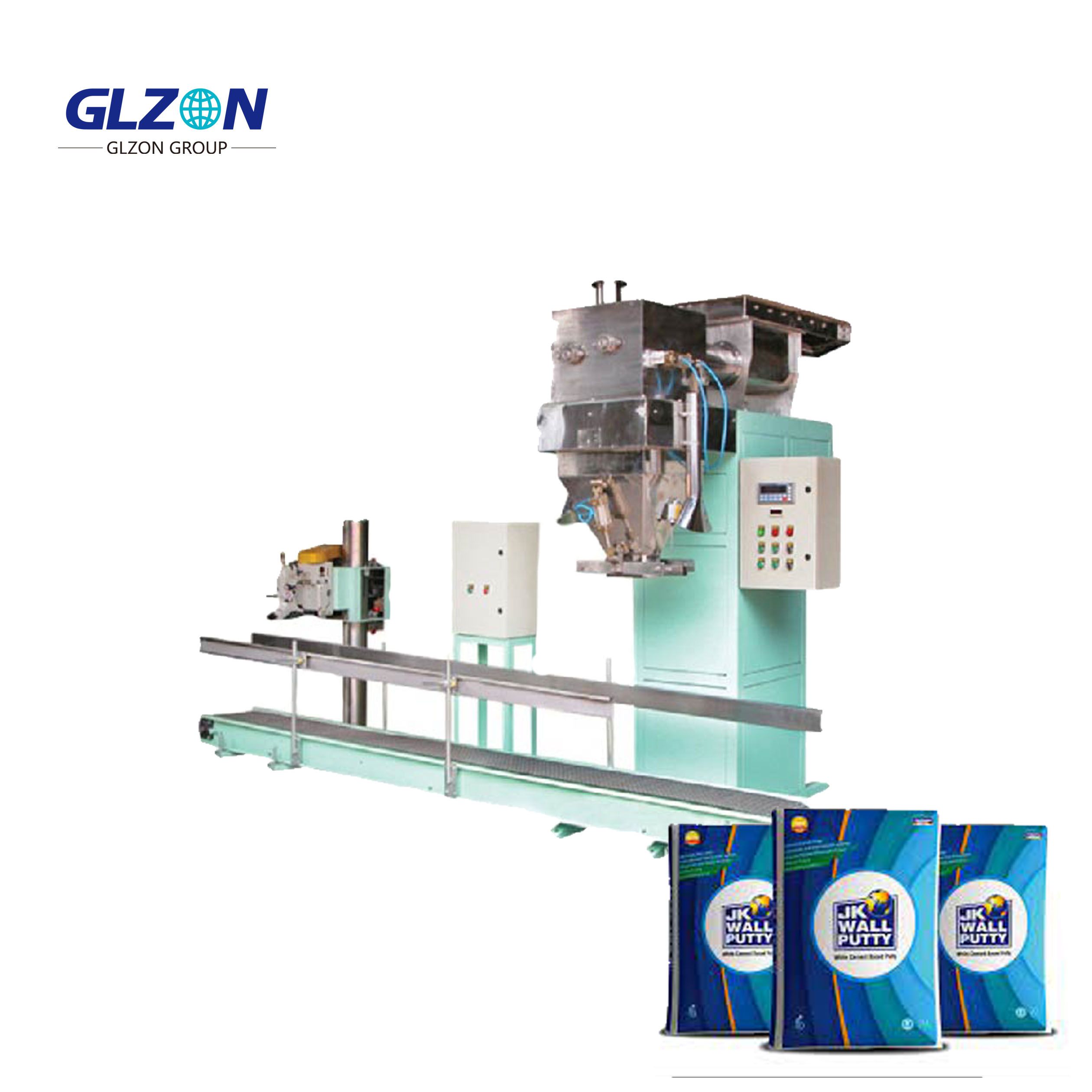

PrecisionFill PF-8000 SeriesPLC-Controlled Open-Mouth Bag Packing SystemIndustrial-Grade Gravimetric Filling • 60 Bags/Hr • ±0.1% Accuracy • Multi-Industry ComplianceCore Technology Innovations1. Grav
PLC-Controlled Open-Mouth Bag Packing System
Industrial-Grade Gravimetric Filling ? 60 Bags/Hr ? ±0.1% Accuracy ? Multi-Industry Compliance
Performance Validation:
| Material | Bulk Density | Accuracy | Industry Standard |
|---|---|---|---|
| Wheat Flour | 0.65g/cm3 | ±0.08% | ±0.5% |
| Granulated Sugar | 0.85g/cm3 | ±0.05% | ±0.3% |
| Polymer Pellets | 0.55g/cm3 | ±0.12% | ±0.8% |
| Layer | Technology | Efficiency |
|---|---|---|
| Primary Barrier | -50Pa Vacuum Hood | 98% Fugitive Dust Capture |
| Secondary Filter | H14 HEPA (99.97%@0.3μm) | <1mg/m3 Emission |
| Tertiary Seal | Inflatable Silicone Collar | Zero Spill Containment |
| Parameter | PF-8100 (Standard) | PF-8200X (ATEX) | PF-8300P (Pharma) |
|---|---|---|---|
| Bag Capacity | 25-50kg (±0.1%) | 25-50kg (±0.15%) | 25-50kg (±0.08%) |
| Throughput | 60 Bags/Hour | 55 Bags/Hour | 50 Bags/Hour |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.08% |
| PLC System | Siemens S7-1500<br>? 0.1ms Scan Time<br>? OPC UA Integration<br>? 10,000 Recipe Storage | Same + SIL-3 Certification | 21 CFR Part 11 Compliance |
| Filling Technology | Servo-Auger with Mass Flow Feedback | ATEX Gear Pump | Peristaltic Pump (FDA) |
| Material Contact | 316L SS (Ra<0.4μm) | Hastelloy C276 | 316L EP (Ra<0.2μm) |
| Dust Control | TripleShield? System<br>1. Negative Pressure Hood<br>2. Pulse-Jet HEPA Filter<br>3. Collar Seal Inflation | + Nitrogen Inerting | + UV-C Sterilization |
| Sealing Methods | Stitch/Heat/Ultrasonic/Tape<br>Seal Strength: >50N/15mm | Same | cGMP-Validated Seals |
| Changeover Time | <90s (Tool-Free) | <100s | <80s |
| Power | 480V/60Hz, 15kW | 24VDC Ex ia | 480V/60Hz, 12kW |
| Certifications | CE, ISO 9001 | ATEX Zone 22 | FDA 21 CFR 210/211 |
Siemens TIA Portal Integration
Advanced Control Capabilities:
Adaptive Filling Algorithms:
| Condition | PLC Response |
|---|---|
| Density Shift >1% | Auto-Flow Compensation |
| Material Bridging | Pulsed Vibration Activation |
Data Integrity:
| Feature | Compliance |
|---|---|
| Electronic Batch Record | 21 CFR Part 11 |
| Blockchain Traceability | Serialized Data Logs |
Food & Agriculture
| Component | Food-Safe Design | Certification |
|---|---|---|
| Auger System | EHEDG EL Class I Geometry | USDA Organic |
| Sealing Tape | FDA-Compliant Adhesive | Halal/Kosher Certified |
| Cleaning System | CIP/SIP Validation | SQF Level 3 |
Chemicals & Minerals
Explosion Safety:
Corrosion Resistance:
| Material | Chemical Compatibility |
|---|---|
| Hastelloy C276 | Acids ? Solvents ? Chlorides |
| PTFE Coating | Caustics ? Oxidizers |
Pharmaceuticals
| cGMP Feature | Technical Specification |
|---|---|
| Cleanability | Ra<0.2μm Electropolished Surfaces |
| Data Integrity | Audit Trail with Electronic Signatures |
| Material Traceability | RFID/NFC Tracking |
1. Bag Auto-Positioning → 2. Collar Seal Engagement → 3. PLC-Controlled Filling (±0.1%) → 4. Dust Extraction → 5. Multi-Mode Sealing → 6. Weight Verification → 7. Palletizing (60 Bags/Hr)
Cycle Time: 60 seconds/bag
Precision Engineering Excellence
? Unmatched Accuracy: | **Technology**| **Performance**| |-------------------------|------------------------| | Temperature-Compensated Load Cells | ±0.05% Resolution | | Air Buoyancy Algorithm | ±0.1% Environmental Compensation | | Real-Time PID Control| ±0.1% Fill Consistency | ? Zero-Dust Architecture: 1. -50Pa Vacuum Hood 2. H14 HEPA Filtration (EN 1822) 3. Inflatable Silicone Collar ? Industrial Durability: - Tungsten Carbide Auger (2,200 Hv) - IP69K Washdown Protection - 100,000-Hour MTBF
? ATEX 2014/34/EU Zone 22 ? FDA 21 CFR 210/211 ? EHEDG EL Class I ? ISO 9001:2015
Archer Daniels Midland Facility:
"After implementing PF-8100 for flour packing:
Output: 38 → 60 Bags/Hour (+58%)
Material Savings: 2.5% → 0.12%
Dust Emissions: 18mg/m3 → 0.7mg/m3
ROI Period: 5.2 months"
