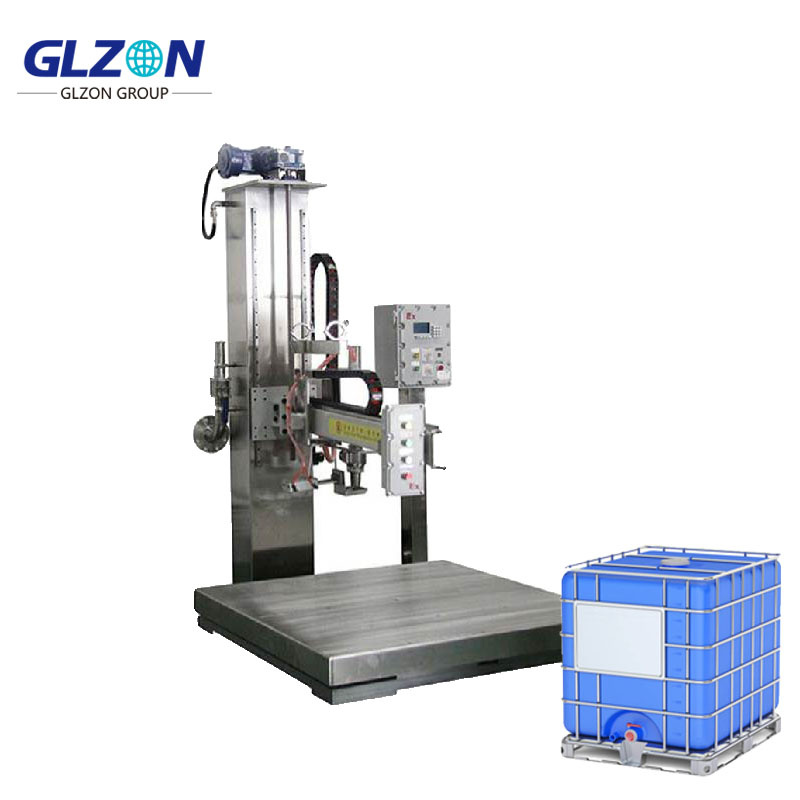

TitanFill IBC-10000 SeriesPrecision IBC & Tote Filling SystemIndustrial-Grade Versatility for 100-1000L Containers • ±0.1% Accuracy • ATEX/FDA/CE Tri-Compliance • Industry 4.0 IntegrationEngineeri
Precision IBC & Tote Filling System
Industrial-Grade Versatility for 100-1000L Containers ? ±0.1% Accuracy ? ATEX/FDA/CE Tri-Compliance ? Industry 4.0 Integration
Performance Metrics:
| Container | Capacity | Fill Time | Residual |
|---|---|---|---|
| IBC Tote | 1000L | 4.5min | <0.2L |
| 200L Drum | 200L | 55s | <0.05L |
| 300L Tote | 300L | 1.8min | <0.08L |
| Layer | Technology | Performance |
|---|---|---|
| Primary Seal | Inflatable Silicone Collar | <0.1mg/m3 VOC Emission |
| Secondary Barrier | Activated Carbon Adsorption | 99.95% VOC Capture |
| Tertiary Defense | -50Pa Vacuum Hood | 100% Splash Containment |
| Parameter | IBC-1010 (Standard) | IBC-1020X (ATEX) | IBC-1030P (Pharma) |
|---|---|---|---|
| Capacity Range | 100-1000L (±0.1%) | 100-1000L (±0.15%) | 100-1000L (±0.08%) |
| Flow Rate | 200L/min | 180L/min | 150L/min |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.08% |
| Viscosity Range | 1-500,000 cP | 5-300,000 cP | 50-1,000,000 cP |
| Container Compatibility | IBCs ? Drums ? Totes ? Jerrycans<br>Material: SS/Plastic/Composite | Same + Safety Cans | Same + USP Containers |
| Filling Technology | Tri-Mode System:<br>? Servo Piston<br>? Gear Pump<br>? Mass Flow Meter | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | Glass-Lined Path |
| Sealing Integrity | **>150kPa Burst Pressure** | Same + Helium Leak Test | >200kPa |
| Positioning Accuracy | ±0.5mm (LiDAR Guided) | ±1.0mm | ±0.3mm |
| Changeover Time | <120s (Tool-Free) | <150s | <90s |
| Power | 480V/60Hz, 22kW | 24VDC Ex ia | 480V/60Hz, 18kW |
| Certifications | CE, ISO 9001 | ATEX Zone 1/21 | FDA 21 CFR 210/211 |
Chemical Processing
| Feature | ATEX Solution |
|---|---|
| Vapor Control | Nitrogen Blanketing (O?<0.3%) |
| Static Dissipation | Ionized Air Curtain (10? ions/cm3) |
| Corrosion Resistance | Zirconium Alloy Path |
Food & Beverage
Aseptic Design:
Oxygen Barrier:
| Technology | Performance |
|---|---|
| N? Flushing | O?<0.1% Headspace |
| Vacuum Filling | -0.8bar Residual Pressure |
Pharmaceuticals
| Component | cGMP Compliance |
|---|---|
| Cleanability | 3D Spray Ball Coverage |
| Data Integrity | 21 CFR Part 11 + Blockchain |
| Material Traceability | RFID/NFC Tracking |
**15" AI HMI with TitanOS?**
Industry 4.0 Features:
Anomaly Detection:
| Parameter | Action |
|---|---|
| Density Shift >0.5% | Auto-Flow Recalibration |
| Temp Drift >1°C | Thermal Compensation |
OEE Optimization:
| Metric | AI Control |
|---|---|
| Energy Consumption | Adaptive Speed Control |
| Seal Wear | >5,000 Cycles Alert |
Gravimetric Superiority:
? Military-Grade Sensors: | **Component** | **Precision** | |------------------------|--------------------------| | Load Cells| ±0.05% (OIML R76) | | Coriolis Meter| ±0.1% (ISO 10790)| | Temp Probe | ±0.1°C | ? Zero-Waste Architecture: 1. Capillary Break Valve (<0.1ml) 2. Coanda Adhesion Nozzle 3. Vacuum Suction (-0.9bar) ? Extreme Durability: - Tungsten Carbide Contact Points (2,200 Hv) - Kalrez?6375 Seals (-20°C to 327°C) - 100,000-Hour MTBF
? ATEX 2014/34/EU Zone 1/21 ? FDA 21 CFR 210/211 ? EHEDG EL Class I ? CE EN 13445 ? ASME BPE-2022
BASF Ludwigshafen Facility:
"After deploying IBC-1020X for solvent filling:
Output: 18 → 32 Totes/Hour (+78%)
VOC Emissions: ↓99% (Carbon Adsorption)
Accuracy: ±0.8% → ±0.12%
ROI Period: 7 months"
APPLICABLE BARREL TYPE
