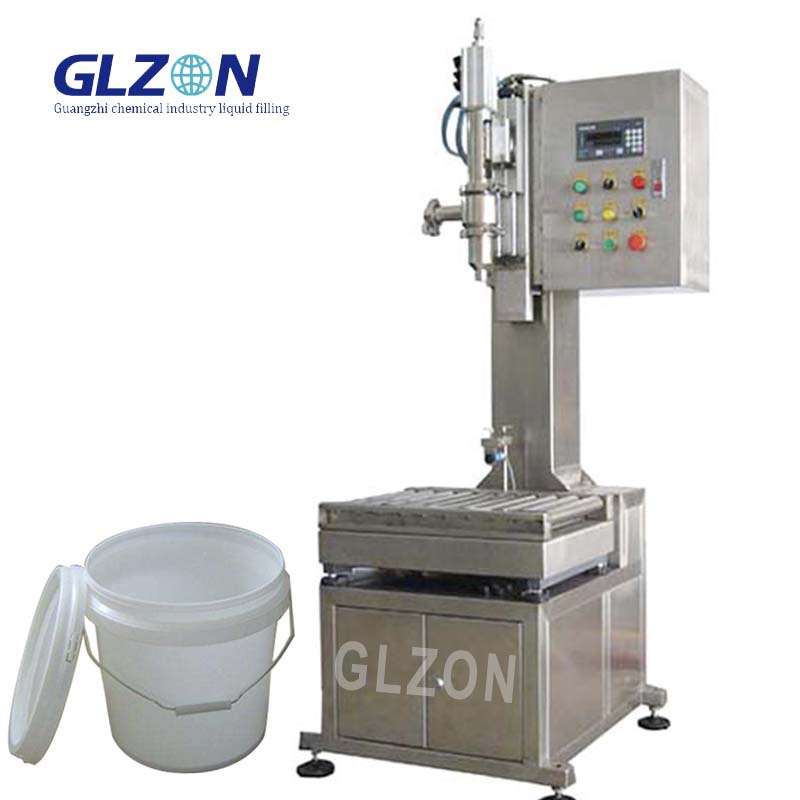

StoneCoat SC-5000 SeriesSemi-Automatic Weighing & Filling System for 5-30L Ink and Stone Paint Cans±0.5% Accuracy • 40 Cans/Hr • Splatter-Free • Viscosity-Adaptive • Industrial-Grade PrecisionCore
Semi-Automatic Weighing & Filling System for 5-30L Ink and Stone Paint Cans
±0.5% Accuracy ? 40 Cans/Hr ? Splatter-Free ? Viscosity-Adaptive ? Industrial-Grade Precision
Performance Validation:
| Material | Viscosity | Splatter Loss | Industry Standard |
|---|---|---|---|
| Stone Texture Paint | 80,000 cP | <0.5ml | 15-30ml |
| UV Ink | 120,000 cP | <0.3ml | 10-25ml |
| Epoxy Coating | 50,000 cP | <0.2ml | 8-20ml |
| Component | Innovation | Accuracy |
|---|---|---|
| Load Cells | Temperature-Compensated Strain Gauges | ±0.1% Full Scale |
| Auto-Tare | AI-Container Weight Prediction | ±0.05% Tare Error |
| Flow Control | Viscosity-Adaptive PID Algorithm | ±0.5% Fill Consistency |
| Parameter | SC-5100 (Standard) | SC-5200X (ATEX) | SC-5300H (High-Visc) |
|---|---|---|---|
| Capacity | 5-30L (±0.5%) | 5-30L (±0.6%) | 5-30L (±0.4%) |
| Throughput | 40 Cans/Hour | 36 Cans/Hour | 35 Cans/Hour |
| Viscosity Range | 1-200,000 cP | 5-150,000 cP | 50-500,000 cP |
| Accuracy | ±0.5% Gravimetric | ±0.6% | ±0.4% |
| Material Compatibility | Stone Paints ? Inks ? Epoxies ? Metallic Coatings | Same + Solvent-Based | Same + High-Filler Suspensions |
| Filling Technology | Servo Piston + Mass Flow Meter | ATEX Gear Pump | Heated Screw Auger |
| Splatter Control | Retractable Submerged Lance | Same + Nitrogen Blanketing | Teflon Scraper System |
| Can Handling | Adjustable Gripper Jaws<br>Can Size: ?200-400mm<br>Height: 250-500mm | Same + Explosion-Proof Actuators | Heavy-Duty Roller Bed |
| Material Contact | 316L SS (Ra<0.8μm) | Hastelloy C276 | PTFE-Lined Path |
| Sealing System | Torque-Control Lid Applicator<br>10-60 N·m Range | Same | Vapor-Barrier Sealing |
| Changeover Time | <120s (Tool-Free) | <150s | <100s |
| Power | 220V/50Hz, 3.5kW | 24VDC Ex ia | 220V/50Hz, 4.2kW |
| Certifications | CE, ISO 9001 | ATEX Zone 2 | FDA 21 CFR 175.300 |
Architectural Coatings
| Challenge | Solution | Performance |
|---|---|---|
| Settling | Pulsed Agitation System | 99.8% Uniformity |
| Skin Formation | Nitrogen Blanketing (O?<0.3%) | 0% Surface Skinning |
| Color Shift | UV-Stable Flow Path | ΔE<0.5 (ASTM D2244) |
Industrial Inks & Coatings
Static Control:
Precision Color Matching:
| System | Accuracy |
|---|---|
| In-line Viscosity Probe | ±1% (ASTM D2196) |
| Density Compensation | ±0.1 g/cm3 |
Decorative Stone Finishes
| Feature | Technology |
|---|---|
| Aggregate Protection | Low-Shear Flow Path |
| Nozzle Clog Prevention | Self-Cleaning Scraper |
| Batch Consistency | Real-Time Density Feedback |
**10" Touchscreen HMI with CoatOS?**
AI-Driven Features:
Quality Assurance:
| Parameter | Action |
|---|---|
| Viscosity Shift >10% | Flow Rate Adjustment |
| Density Variance >0.5% | Formula Correction |
Preventive Maintenance:
| Component | Alert Threshold |
|---|---|
| Seal Wear | Friction >8N |
| Pump Efficiency | Flow <95% Baseline |
1. Manual Can Loading → 2. Auto-Centering Gripper → 3. Net Weight Taring (±0.05%) → 4. Submerged Filling (±0.5%) → 5. Vacuum Nozzle Retract → 6. Torque-Controlled Lid Sealing → 7. Weight Verification → 8. Conveyor Outfeed
Cycle Time: 90 seconds/can
Precision Engineering:
? Zero-Waste Architecture: | **Technology**| **Performance**| |-------------------------|------------------------| | Submerged Lance| <0.5ml Residual| | Coanda Adhesion| 0 Droplet Formation | | Vacuum Assist| -0.5bar ±0.05bar| ? Viscosity Intelligence: 1. Real-Time Viscosity Monitoring 2. Auto-Temperature Compensation (5-50°C) 3. Shear-Rate Optimization ? Industrial Durability: - Tungsten Carbide Scrapers - IP66 Washdown Protection - 100,000-Hour MTBF
? ATEX 2014/34/EU Zone 2 (SC-5200X) ? FDA 21 CFR 175.300 ? CE EN 60204-1 ? ISO 9001:2015
Sherwin-Williams Industrial Coatings:
"After implementing SC-5300H for stone effect paint:
Output: 22 → 40 Cans/Hour (+82%)
Material Savings: 3.8% → 0.4%
Splatter Waste: 1.2L/day → 0.05L/day
ROI Period: 5.1 months"
