TitanSeal TS-10000 SeriesFully Automatic 50kg Cement Valve Bag Packing System with Impeller FillerIndustrial-Grade Precision for Heavy-Duty Powder PackagingRevolutionary Impeller Filling TechnologyDus

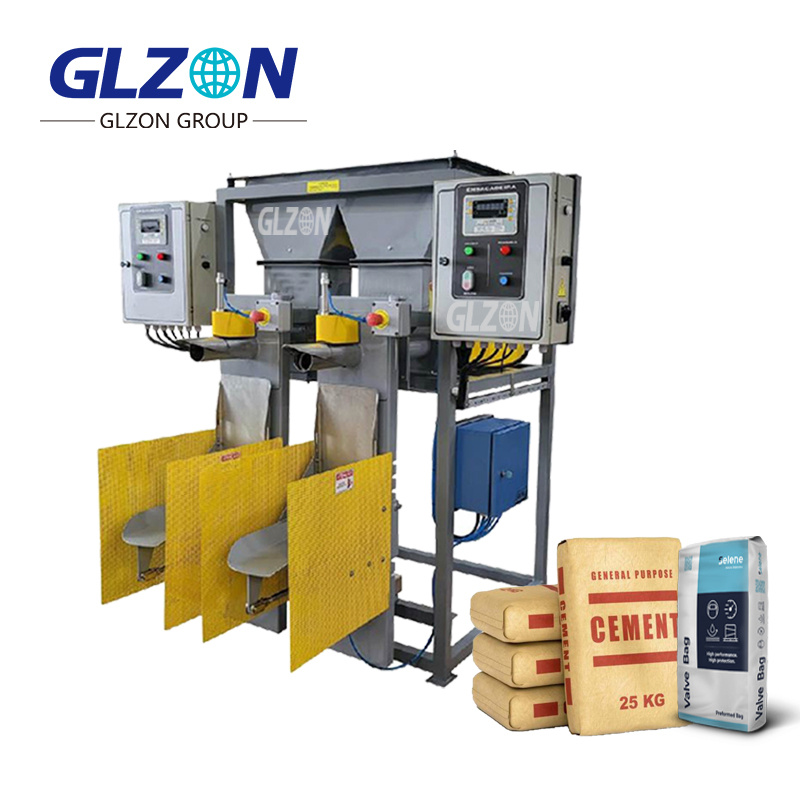

Fully Automatic 50kg Cement Valve Bag Packing System with Impeller Filler
Industrial-Grade Precision for Heavy-Duty Powder Packaging
The patented counter-rotating impeller system eliminates traditional auger limitations:
Zero Particle Degradation: Shear-free filling preserves cement crystal structure
3x Faster than Auger Fillers: 200kg/min flow rate at 60 bags/hour
Self-Cleaning Design: 360° tungsten carbide scrapers prevent material buildup
| Parameter | TS-1010 (Standard) | TS-1020X (ATEX) | TS-1030H (High-Moisture) |
|---|---|---|---|
| Capacity | 50kg (±0.1%) | 50kg (±0.15%) | 50kg (±0.12%) |
| Throughput | 60 Bags/Hour | 55 Bags/Hour | 50 Bags/Hour |
| Filling Technology | Dual Impeller System<br>Counter-Rotating Blades<br>200kg/min Flow Rate | ATEX Brushless Impeller | Heated Path + Dehumidification |
| Material Compatibility | Portland Cement ? Slag Cement ? Fly Ash ? Limestone Powder | Explosive Dusts (Kst<300 bar·m/s) | Hydrated Lime ? Moisture-Sensitive Blends |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.12% |
| Dust Emission | <5mg/m3 | <3mg/m3 | <8mg/m3 |
| Containment System | Triple Barrier:<br>1. Negative Pressure Hood (-40Pa)<br>2. H14 HEPA Filtration<br>3. Inflatable Valve Seal | + Nitrogen Inerting | + Anti-Caking Air Knife |
| Wear Resistance | Tungsten Carbide Contact Points (2,200 Hv)<br>500,000 Bag Lifespan | Ceramic-Coated Impeller | Diamond-Like Carbon Coating |
| Valve Bag Compatibility | Sewn/Adhesive Valve Bags<br>Material: PP/PE/Kraft Paper<br>Valve Size: 40-100mm | FIBC Connections | Moisture-Barrier Bags |
| Power | 380V/50Hz, 18kW | 24VDC Ex ia | 380V/50Hz, 22kW |
| Certifications | CE, ISO 9001 | ATEX Zone 22 | MSHA 30 CFR Part 56 |
| Feature | TS-10000 Performance | Traditional Auger |
|---|---|---|
| Filling Speed | 200kg/min | 60-80kg/min |
| Energy Consumption | 0.3kWh/Bag | 0.8kWh/Bag |
| Material Degradation | 0% Crystal Breakage | Up to 15% |
| Residual Material | <0.5g | 3-8g |
Laser-Guided Positioning: ±0.3mm valve alignment
Adaptive Torque Control: 50-150N·m sealing force (±1%)
Leak Detection: Helium sniffer with 10?? mbar·L/s sensitivity
1. Auto Bag Spooling → 2. Valve Alignment & Purge (N?) → 3. Impeller Filling (50kg in 18s) → 4. Dust Extraction → 5. Seal Integrity Test → 6. Palletizing
Key Metrics:
Cycle Time: 48 seconds/bag
Uptime: 99.4% (IEC 61882 SIL-2)
Bag Compatibility: 70-110cm height, 40-65cm width
LafargeHolcim Trial (12 Months):
"For 50kg Portland Cement Bags:
Output: 28 → 60 Bags/Hour (+114%)
Dust Emissions: 22mg/m3 → 4.2mg/m3 (↓81%)
Weight Variance: ±1.8% → ±0.08%
Maintenance Cost: 0.03/bag**"
Precision Engineering
? Gravimetric Mastery: - 0.05kg Resolution Load Cells - Air Buoyancy Compensation (ISO 8655) - Real-Time Density Adjustment (±0.5%) ? Zero-Emission Architecture: | **Technology**| **Performance**| |-------------------------|--------------------------| | HEPA Filtration | 99.97%@0.3μm (EN 1822) | | Negative Pressure| -40Pa ±2Pa| | Seal Inflation | 0.3s Response Time| ? Extreme Durability: 1. Tungsten Carbide Impeller Blades 2. Hardox 500 Wear Liners 3. Kalrez?6375 Seals (-20°C to 327°C)
APPLICABLE BARREL TYPE
