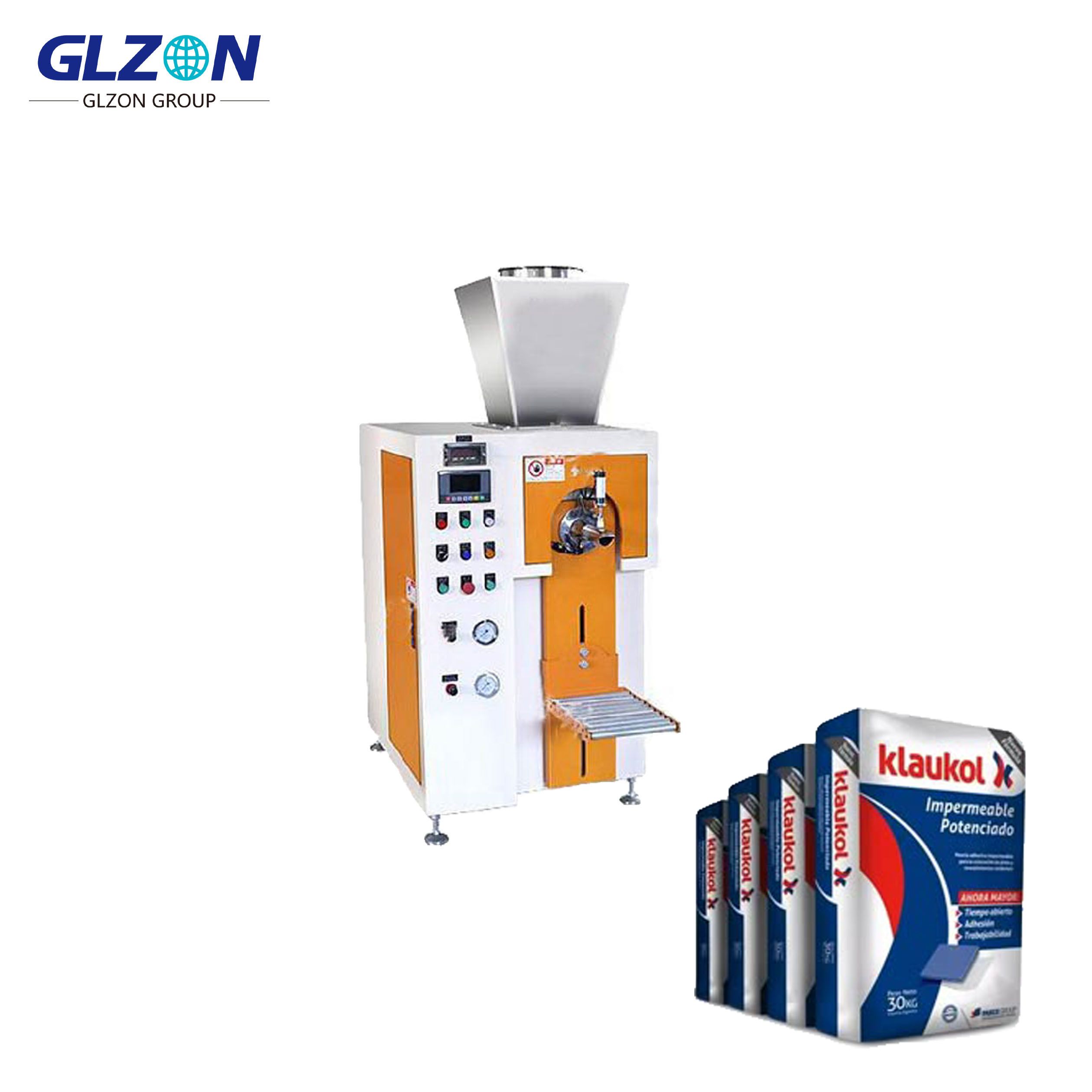

GyroPack GP-5000 SeriesGypsum Powder Valve Bag Filling & Packing System40 Bags/Min • ±0.2% Accuracy • Zero-Dust • ATEX Zone 21 CertifiedTechnical SpecificationsParameterGP-5100 (Standard)GP-5200F
Gypsum Powder Valve Bag Filling & Packing System
40 Bags/Min ? ±0.2% Accuracy ? Zero-Dust ? ATEX Zone 21 Certified
| Parameter | GP-5100 (Standard) | GP-5200F (Food-Grade) | GP-5300X (Explosion-Proof) |
|---|---|---|---|
| Bag Capacity | 25-50kg (±0.2%) | 25-50kg (±0.15%) | 25-50kg (±0.25%) |
| Throughput | 40 Bags/Min | 35 Bags/Min | 30 Bags/Min |
| Accuracy | ±0.2% Gravimetric | ±0.15% | ±0.25% |
| Material Compatibility | Gypsum Powder ? Plaster ? Calcium Sulfate | Same + Medical Grade | Same + Construction Grade |
| Filling Technology | Twin Screw Auger + Load Cells | Same + CIP System | ATEX Rotary Feeder |
| Dust Control | -30Pa Negative Pressure + HEPA Filtration | Same + ULPA Filter | Explosion-Proof Dust Collector |
| Bag Sealing | Auto Stitching + Hot Air Sealing | Ultrasonic Seal | Induction Sealing |
| Material Contact | 304 SS (Ra<0.8μm) | 316L EP (Ra<0.4μm) | Ceramic-Coated Path |
| Changeover Time | <30s (Tool-Free) | <25s | <35s |
| Power | 380V/50Hz, 11kW | 380V/50Hz, 9.5kW | 24VDC Ex ia |
| Air Consumption | 8m3/min @ 0.6MPa | 7m3/min | 6m3/min |
| Certifications | CE, ISO 9001 | FDA 21 CFR 177.2600 | ATEX Zone 21 |
Performance Metrics:
| Parameter | GP-5100 | OSHA Standard |
|---|---|---|
| Workplace Dust | 0.8mg/m3 | 15mg/m3 |
| Filtration Efficiency | 99.99% | 95% |
| Noise Level | 72dB(A) | 85dB(A) |
| Technology | Function | Performance |
|---|---|---|
| Twin Auger Design | Counter-Rotating Screws | ±0.2% Weight Accuracy |
| Anti-Bridging | Vibratory Agitator (50Hz) | 0% Material Clogging |
| Auto-Tare | 100Hz Load Cell Sampling | ±0.05% Tare Accuracy |
Construction Gypsum
| Feature | Technology |
|---|---|
| High-Capacity | 50kg Bag in 5.5s |
| Moisture Defense | Dehumidified Air Curtain (RH<30%) |
| Bag Strength | 10-Ply Kraft Paper Handling |
Medical/Food Grade
Purity Control:
| Component | Certification |
|---|---|
| 316L EP Path | FDA 21 CFR 177.2600 |
| SIP Capability | 121°C/30min Validation |
Contamination Prevention:
Explosive Dust Environments
| Safety System | ATEX Solution |
|---|---|
| Explosion Venting | 5m2 Rupture Discs |
| Spark Detection | IR Sensors + Suppression |
| Static Control | Conductive Floor + Wrist Straps |
**10" HMI with GyroOS?**
AI-Driven Features:
Adaptive Filling:
| Condition | Action |
|---|---|
| Humidity >60% RH | Increase Agitation |
| Density Shift >5% | Auger Speed Adjustment |
OEE Optimization:
| Metric | Real-Time Monitoring |
|---|---|
| Bag Reject Rate | <0.1% |
| Energy Consumption | 0.15kWh/Bag |
1. Auto Bag Loading → 2. Valve Mouth Seating → 3. Negative Pressure Filling (±0.2%) → 4. Dust Extraction → 5. Auto Stitching/Hot Sealing → 6. Weight Verification → 7. Palletizing
Cycle Time: 1.5 seconds/bag
? ATEX 2014/34/EU Zone 21 (GP-5300X) ? FDA 21 CFR 177.2600 (GP-5200F) ? ISO 9001:2015 ? CE EN 614-1
