TwinFlow TF-8000 SeriesFull Automatic Dual-Nozzle Drum Filling MachineDouble Speed. Dual Precision. Industry 4.0 Ready.Breakthrough Dual-Nozzle TechnologySynchronized Filling SystemSpeed Advantage:Met

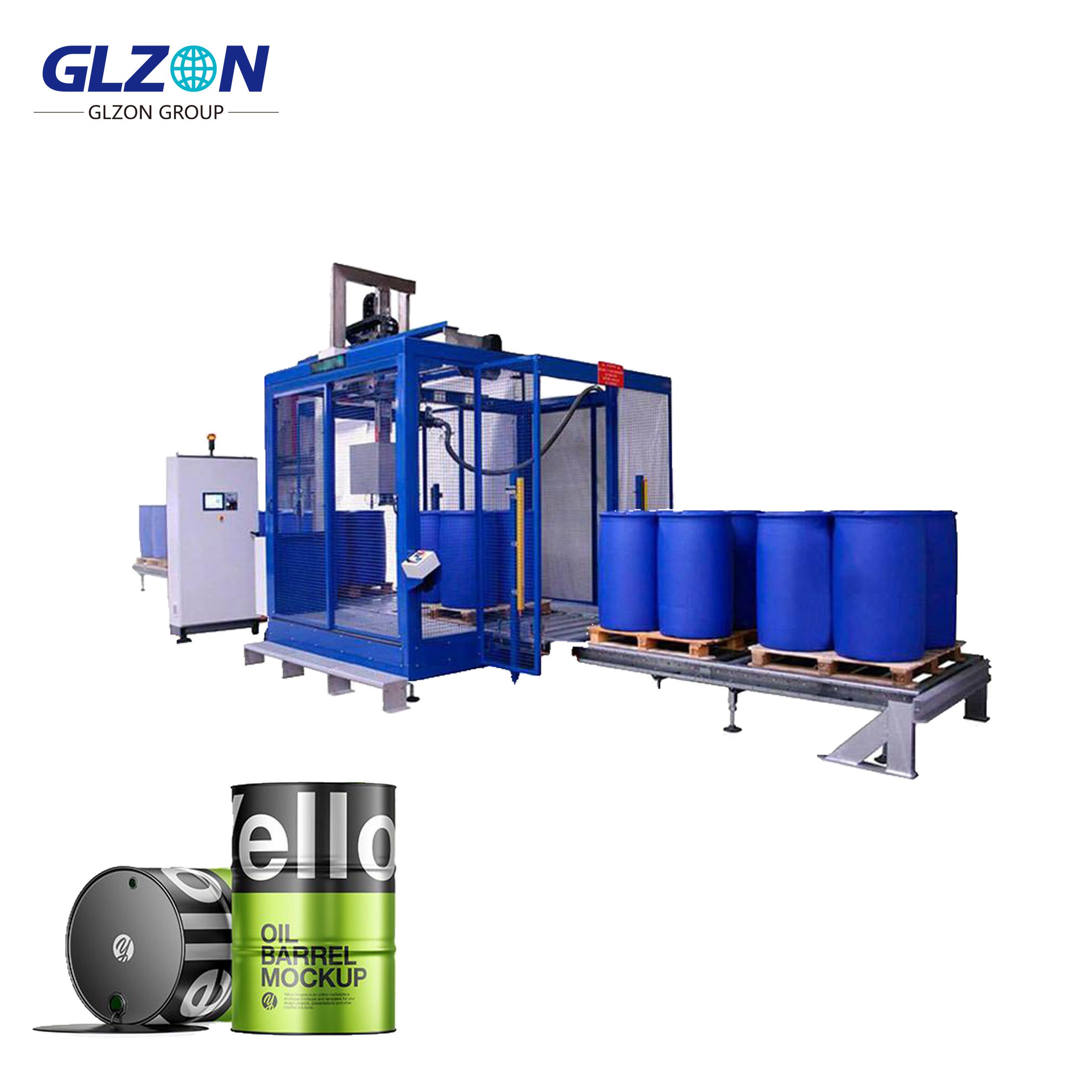

Full Automatic Dual-Nozzle Drum Filling Machine
Double Speed. Dual Precision. Industry 4.0 Ready.
Speed Advantage:
| Metric | Single-Nozzle Systems | TF-8100 | Improvement |
|---|---|---|---|
| Cycle Time | 3.5 min/drum | 1.8 min/drum | ↓49% |
| Hourly Output | 17 drums | 33 drums | ↑94% |
| Daily Capacity | 136 drums (8hr) | 264 drums | ↑94% |
| Energy Consumption | 0.85 kWh/drum | 0.48 kWh/drum | ↓44% |
| Parameter | TF-8100 (Standard) | TF-8200X (ATEX) | TF-8300F (Food Grade) |
|---|---|---|---|
| Capacity | 200L (±0.15%) | 200L (±0.2%) | 200L (±0.1%) |
| Throughput | 33 drums/hour | 30 drums/hour | 28 drums/hour |
| Accuracy | ±0.15% per nozzle | ±0.2% | ±0.1% |
| Sync Precision | ±0.5% between nozzles | ±0.8% | ±0.3% |
| Filling Technology | Dual Coriolis Meters | ATEX Gear Pumps | Peristaltic Pumps |
| Nozzle Distance | 300-800mm adjustable | Same | Same |
| Material Contact | 316L SS + PTFE | Hastelloy C276 | 316L EP + FDA UHMW-PE |
| Changeover Time | <3 min (Auto-Tooling) | <4 min | <3 min |
| Power | 480V/60Hz, 12kW | 24VDC Ex ia | 480V/60Hz, 10kW |
| Air Consumption | 300 L/min @ 0.7MPa | 280 L/min | 250 L/min |
| Footprint (L×W×H) | 4200×2200×3200mm | 4500×2400×3400mm | 4300×2300×3300mm |
| Certifications | CE EN 415 | ATEX Zone 1 | EHEDG EL Class I |
Precision Control Architecture:
| Component | Technology | Function |
|---|---|---|
| Master Controller | Siemens S7-1500 PLC | 1ms synchronization accuracy |
| Flow Sensors | Dual Coriolis (0.05% accuracy) | Real-time mass flow comparison |
| Error Correction | AI Predictive Algorithm | Auto-adjusts flow within 0.3s |
| Data Verification | Blockchain Logging | Immutable batch records |
Chemical Manufacturing
| Feature | Benefit |
|---|---|
| Hazardous Materials | Dual ATEX pumps (Zone 1) |
| High-Value Liquids | ±0.15% accuracy reduces giveaway |
| VOC Control | Integrated vapor hoods (95% capture) |
Paint & Coatings
Color Consistency:
Dual-path identical shear rates
ΔE<0.4 between nozzles
Metallic Control:
| Parameter | Performance |
|---|---|
| Flake Orientation | ±3° variance control |
| Settling Prevention | Pulsed flow synchronization |
Food & Pharma
| Component | Certification |
|---|---|
| Contact Surfaces | FDA 21 CFR 177.2600 |
| Cleanability | 15-min CIP cycle |
| Data Integrity | 21 CFR Part 11 Compliance |
15" HMI with SyncOS?
Industry 4.0 Features:
OEE Dashboard:
| Metric | Real-Time Tracking |
|---|---|
| Synchronization | 99.8% |
| Downtime | <0.5% |
Predictive Maintenance:
| Component | Alert Threshold |
|---|---|
| Pump Vibration | >4mm/s RMS |
| Seal Wear | Leak >0.1ml/min |
BASF Ludwigshafen Plant Report:
*"After converting to TF-8100:
Output: 15 → 33 drums/hour (+120%)
Accuracy: ±0.8% → ±0.12%
Labor Cost: $58,000/year savings
ROI: 4 months"*
? ATEX 2014/34/EU (TF-8200X) ? CE EN 415-7 ? ISO 9001:2015 ? FDA 21 CFR 177.2600 ? SIL-2 Safety Level
1. AGV Drum Loading → 2. Auto-Lid Removal → 3. Dual-Nozzle Alignment → 4. Synchronized Filling → 5. Weight Verification → 6. Vapor Recovery → 7. Robotic Sealing → 8. Palletizing
Cycle Time: 1.8 minutes/drum
