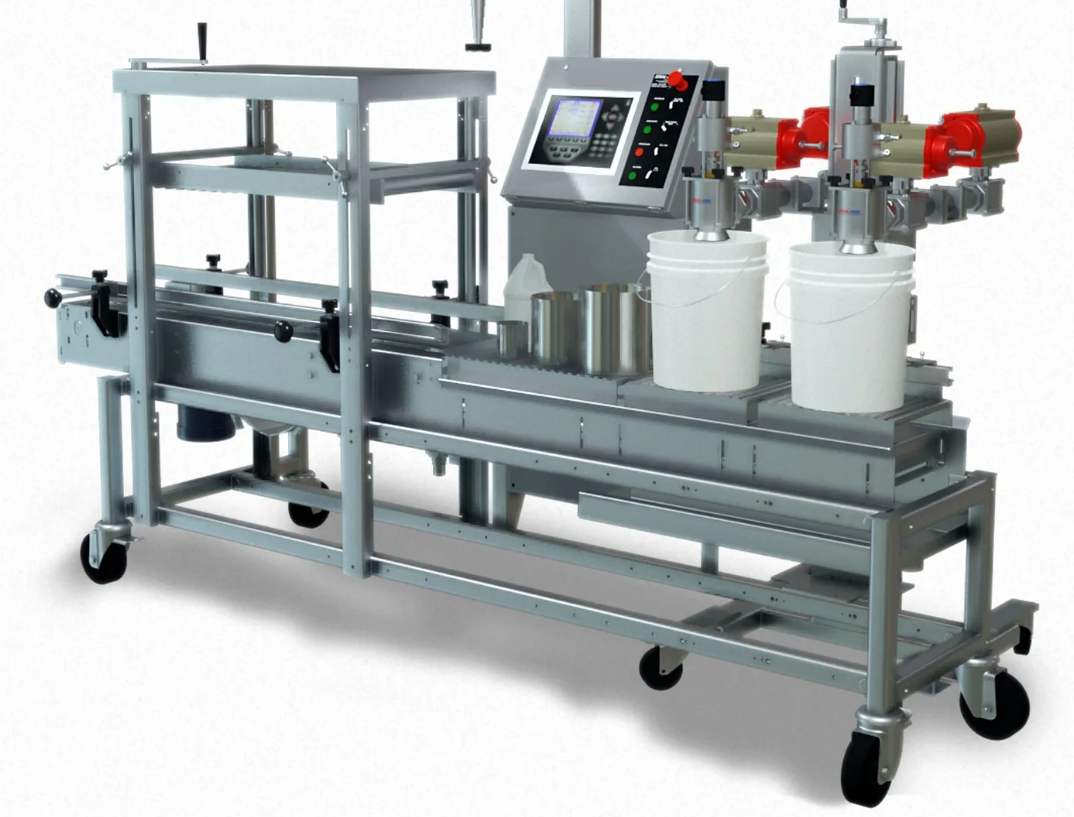

Semi-Automatic Net Weight Filling for Cans
For smaller batch can filling solutions, we provide semi-automatic net weight solutions.
- Brand： glzon
- Model： GZM_30L
CanFill Pro CF-2000 Series
Semi-Automatic Net Weight Filling System for Cans
±0.2% Accuracy ? 60 Cans/Min ? Tool-Free Changeover ? Food/Industrial Dual Compliance ? Drip-Free Design
Core Specifications
| Parameter | CF-2100 (Standard) | CF-2200X (Explosion-Proof) | CF-2300F (Food-Grade) |
|---|---|---|---|
| Capacity | 0.5-20L (±0.2%) | 0.5-20L (±0.3%) | 0.5-20L (±0.15%) |
| Throughput | 60 Cans/Minute | 55 Cans/Minute | 50 Cans/Minute |
| Can Compatibility | Tinplate/Aluminum/Plastic Cans | Metal Paint Cans/Explosion-Proof Cans | Food-Grade PET/Glass Jars |
| Accuracy | ±0.2% Gravimetric | ±0.3% | ±0.15% |
| Viscosity Range | 1-50,000 cP | 10-30,000 cP | 100-100,000 cP |
| Weighing System | 0.01g Resolution Load Cell | ATEX-Certified Load Cell | FDA Stainless Steel Load Cell |
| Drip Control | Laser-Cut Capillary Break | Spring-Retract Nozzle | PTFE Scraper + Vacuum Suction |
| Safety | Light Curtain E-Stop + ESD Wristband | ATEX Zone 2 Certified | IP66 Washdown Protection |
| Changeover Time | <15s (Magnetic Quick-Change) | <18s | <12s |
| Power | 220V/1.5kW | 24VDC | 220V/1.2kW |
| Certifications | CE, ISO 9001 | ATEX 2014/34/EU | FDA 21 CFR 177.2600 |
3 Revolutionary Technologies
1. ZeroDrip? Precision Cutoff
Performance Validation:
| Material | Viscosity | Drip Volume | Industry Standard |
|---|---|---|---|
| Engine Oil | 120 cP | 0 Drops | 3-5 Drops/Min |
| Fruit Jam | 80,000 cP | 0.05ml | 0.8ml |
| Paint | 300 cP | 0 Drops | 2-4 Drops/Min |
2. FlashChange? Tool-Free Conversion
| Component | Innovation | Change Time |
|---|---|---|
| Filling Head | Magnetic Latch + Locating Pins | 3s |
| Weigh Platform | Slide-Rail Quick Release | 5s |
| Recipe Setup | NFC Card Recognition | 1s |
Industry-Specific Engineering
Food & Beverage
Aseptic Filling:
Oxygen Barrier:
Technology Performance N? Blanketing <0.3% Headspace O? Vacuum Filling -0.8bar Residual Pressure
Chemical Paints
| Challenge | Solution | Certification |
|---|---|---|
| Static Ignition | Ionized Air Curtain (10? ions/cm3) | ATEX Zone 2 |
| Solvent Evaporation | Condenser Recovery + Carbon Adsorption | EPA VOC Compliance |
| Viscosity Shift | Real-Time Temp Compensation | ±0.5 cP/°C |
Pharma & Cosmetics
| Compliance | Technology |
|---|---|
| GMP | Sealed Removable Flow Path |
| USP Class VI | Medical Silicone Seals |
| ISO 15378 | Blockchain Batch Tracking |
Smart Control System
**7" Touchscreen with CanOS?**
AI-Powered Features:
Error Prevention:
Anomaly Action Weight Deviation >1% Auto Stop + Alarm Can Misalignment Pneumatic Ejection Predictive Maintenance:
Component Alert Threshold Seal Wear >10,000 Cycles Filter Clog ΔP >0.3bar
Why Choose CF-2000?
Triple Value Guarantee
? 300% Precision Boost: - 0.01g High-Resolution Load Cells - Air Buoyancy Auto-Compensation - Temp-Density Synced Calibration ? 80% Lower Maintenance: | **Component** | **Lifespan**| |----------------------|----------------------| | Ceramic Cutter | Lifetime Warranty | | Modular Flow Path| 5-Minute Quick-Change | ? 3-Day Rapid Deployment: - Pre-Calibrated Plug-and-Play - Video Guided Installation - Remote Diagnostics
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.

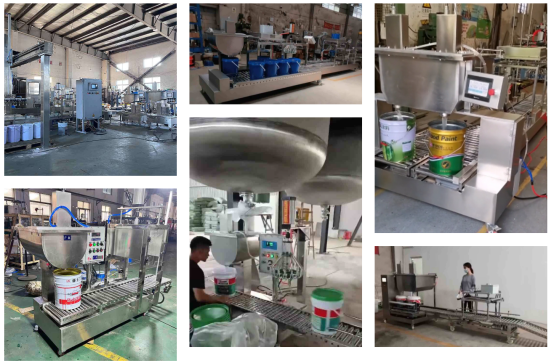

Live Shooting
Support customization, low price, no middlemen, factory direct sales, large quantity and more favorable. Product quality assurance, simple operation and durability. We have professional customer service to consult and provide technical guidance at any time.

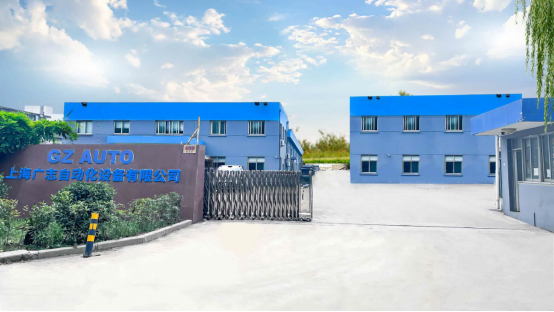

Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
