This machine is suitable for filling large volume barrel oil products, such as machine lubricating oil, lubricating oil, gasoline, engine oil, with high filling efficiency and good effectMain features

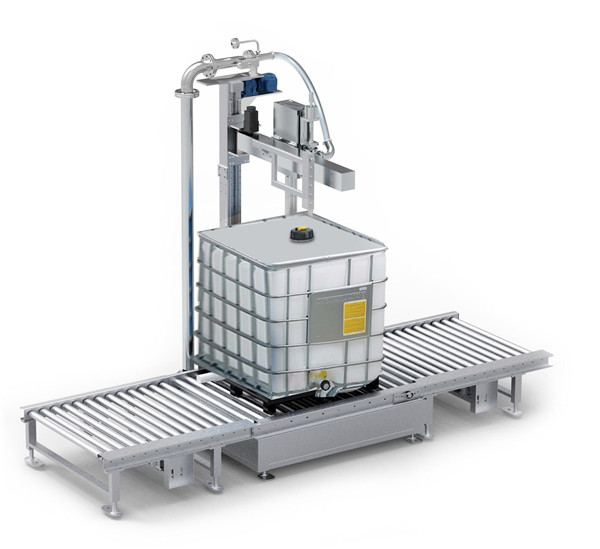

1000L Semi-Automatic Drum Filling System for Industrial Oils
±0.15% Accuracy ? 12 Drums/Hour ? Heavy-Duty Safety ? Zero-Spill Design
| Parameter | MF-1010 (Standard) | MF-1020X (ATEX) | MF-1030H (High-Visc) |
|---|---|---|---|
| Capacity | 800-1200L (±0.15%) | 800-1200L (±0.2%) | 800-1200L (±0.18%) |
| Throughput | 12 Drums/Hour | 10 Drums/Hour | 8 Drums/Hour |
| Accuracy | ±0.15% Gravimetric | ±0.2% | ±0.18% |
| Viscosity Range | 50-500,000 cP | 100-300,000 cP | 5,000-1,000,000 cP |
| Filling Technology | Mass Flow Coriolis Meter | ATEX Gear Pump | Heated Screw Auger |
| Material Contact | 316L SS (Ra<0.8μm) | Hastelloy C276 | Tungsten Carbide Lined Path |
| Flow Rate | 150 L/min | 120 L/min | 100 L/min |
| Drip Control | Air-Knife + Vacuum Suction | Spring-Loaded Retract | Capillary Break Valve |
| Static Protection | <10? Ω + Ionized Air Curtain | <10? Ω (IECEx) | Grounding Alarm (<10Ω) |
| Safety Features | Laser Curtain ? Overfill Sensor | ATEX Pressurized Cabin | SIL-2 Emergency Stop |
| Power | 380V/50Hz, 18kW | 24VDC Ex ia | 380V/50Hz, 22kW |
| N? Inerting | 60 L/min (O?<0.3%) | 80 L/min | 70 L/min |
| Changeover Time | <10 min (Tool-Free) | <12 min | <9 min |
| Certifications | CE, ISO 9001 | ATEX Zone 2 | API 682 |
| Footprint (L×W×H) | 4500×2800×3500mm | 4800×3000×3700mm | 4600×2900×3600mm |
Performance Metrics:
| Oil Type | Flow Rate | Accuracy | Residual |
|---|---|---|---|
| ISO VG 320 | 150 L/min | ±0.12% | <0.1L |
| EP Grease | 90 L/min | ±0.18% | <0.05L |
| Synthetic PAO | 130 L/min | ±0.15% | <0.08L |
| Technology | Function | Performance |
|---|---|---|
| Retractable Nozzle | Spring-Loaded + Vacuum Suction | Zero Drips on Retract |
| Ionized Air Curtain | Static Dissipation (10? ions/cm3) | <5kV Surface Charge |
| Overfill Prevention | Radar Level Sensor | 0.1% Cutoff Accuracy |
Lubricant Transfer
| Feature | Specification |
|---|---|
| Viscosity Compensation | Auto-Temp Adjustment (±0.5 cP/°C) |
| Additive Protection | Low-Shear Flow Path |
| Foam Control | Vacuum Degassing (-0.7 bar) |
Machine Oil Handling
Contamination Defense:
| Component | Specification |
|---|---|
| 100μm In-line Filter | ISO 4406 16/14/11 |
| Magnetic Trap | >95% Ferrous Particle Removal |
Oxidation Prevention:
High-Viscosity Fluids
| Challenge | Solution |
|---|---|
| Cold Flow Issues | Path Heating (80°C) |
| Air Entrapment | Pulsed Vacuum Degassing |
| Wear Resistance | Tungsten Carbide Flow Path (2200 Hv) |
**10" HMI with OilMaster OS?**
IIoT Features:
Predictive Maintenance:
| Component | Alert Threshold |
|---|---|
| Pump Vibration | >4.5mm/s RMS |
| Seal Wear | Friction >12N |
Safety Monitoring:
| Risk | Action |
|---|---|
| Static >3kV | Auto Ionization |
| LEL >5% | Emergency Purge |
1. Drum Loading (Forklift) → 2. Grounding Verification (<10Ω) → 3. N? Purging (O?<0.5%) → 4. Submerged Filling (±0.15%) → 5. Vacuum Suction Retraction → 6. Torque-Lid Sealing (50-150 N·m) → 7. Helium Leak Test (<10?? mbar·L/s) → 8. Weight Certification
Cycle Time: 5 minutes/drum
? ATEX 2014/34/EU (MF-1020X) ? CE EN 60204-1 ? ISO 9001:2015 ? API 682
Industrial-Grade Reliability:
? Precision Metrology: - Coriolis Mass Flow (0.05% baseline accuracy) - Auto-Temp Compensation (±0.3 kg/m3) - 3-Point Weight Calibration ? Safety Architecture: | **Feature**| **Certification** | |----------------------|--------------------------| | Pressurized Cabin| ATEX Zone 2| | Static Control | NFPA 77 Compliance | | Emergency Stop | SIL-2 (IEC 61508)| ? Heavy-Duty Construction: - Hardox 450 Frame (5x life) - 20-ton Hydraulic Lift Assist - IP66 Washdown Protection
| Model | Target Fluid | Key Feature | ROI Period |
|---|---|---|---|
| MF-1010 | Industrial Lubricants | 316L SS Corrosion Resistance | 8 Months |
| MF-1020X | Solvent-Based Oils | ATEX Zone 2 Certification | 10 Months |
| MF-1030H | Gear Greases | 80°C Heated Path | 9 Months |
APPLICABLE BARREL TYPE
