Lube oil, chemical material, industry oil, Detergent, bean oil, paint and other similar products.1. Automatic bottle sensing system and filling2. Filling error is control within 1‰3. Automatic filling

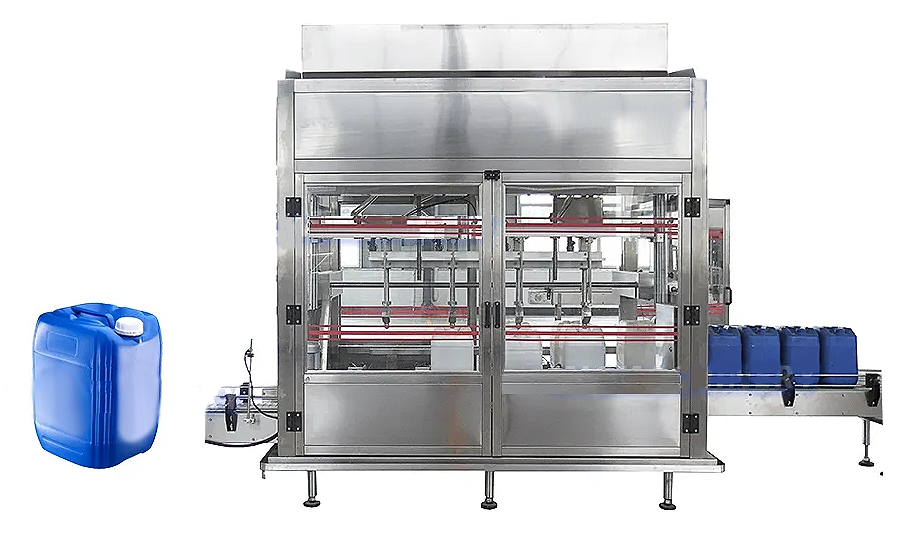

Multi-Formula Disinfectant & Lubricant Weighing Filling System
300 Bottles/Hour ? ±0.15% Accuracy ? Chemical-Resistant ? ATEX/FDA Dual Mode
| Parameter | Disinfectant Mode | Lubricant Mode | Detergent Mode |
|---|---|---|---|
| Capacity | 1-20L (±0.15%) | 1-20L (±0.18%) | 1-20L (±0.16%) |
| Throughput | 300 bottles/hour | 280 bottles/hour | 290 bottles/hour |
| Accuracy | ±0.15% Gravimetric | ±0.18% Gravimetric | ±0.16% Gravimetric |
| Viscosity Range | 1-50,000 cP | 10-500,000 cP | 500-100,000 cP |
| Filling Technology | Coriolis Mass Flow + Load Cell | Servo Piston + Load Cell | Progressive Cavity Pump |
| Material Contact | Hastelloy C276 (Ra<0.8μm) | Same + PTFE Lined | 316L EP (Ra<0.4μm) |
| Foam Control | Vacuum Degassing (-0.7 bar) | N? Blanketing | Ultrasonic Cavitation |
| Corrosion Resistance | CRA Certification | NACE MR0175 Compliant | EHEDG EL Class I |
| Drip-Free System | Laser-Cut Capillary Break | Spring-Loaded Retract | Coanda Adhesion Nozzle |
| Changeover Time | <90s (Auto-Sanitize) | <100s | <85s |
| Power | 380V/50Hz, 7.2kW | 380V/50Hz, 8.5kW | 380V/50Hz, 6.8kW |
| Certifications | EPA/WHO GMP | ATEX Zone 2 | ISO 9001/14001 |
Changeover Protocol:
CIP Flush (Food-Grade Solvent)
N? Purging (3x Volume Exchange)
Surface ATP Test (<5 RLU)
Material Compatibility Verification
| Component | Technology | Performance |
|---|---|---|
| Load Cells | Dual-Redundant Strain Gauges | ±0.05% Repeatability |
| Mass Flow Meter | Coriolis Principle | ±0.1% of Reading |
| Temp Compensation | RTD Sensors (±0.1°C) | ±0.01%/°C Stability |
Disinfectant Formulations
| Chemical | Material Solution |
|---|---|
| Chlorine-Based | Hastelloy C276 + Kalrez Seals |
| Alcohol-Based | 316L SS + EPDM Seals |
| Quaternary Ammonium | PTFE-Lined Path |
Industrial Lubricants
| Feature | Specification |
|---|---|
| Viscosity Compensation | Real-Time Temp Adjustment (±0.8 cP/°C) |
| Static Control | Ionized Air Curtain (10? ions/cm3) |
| Foam Prevention | Submerged Nozzle + N? Blanketing |
Detergents & Cleaners
**10" HMI with ChemOS?**
AI-Driven Features:
Hazard Prevention:
| Risk | Action |
|---|---|
| Chemical Incompatibility | Path Lock + Alarm |
| Flash Point <23°C | ATEX Mode Activation |
Quality Control:
| Parameter | Precision |
|---|---|
| pH Value | ±0.05 pH Units |
| Concentration | ±0.1% Titration |
| Density | ±0.0001 g/cm3 |
1. Bottle UV Sterilization → 2. Path Selection (ChemiSwitch) → 3. Vacuum Degassing (Disinfectants) → 4. Precision Weigh Filling (±0.15%) → 5. Capillary Break → 6. Torque Capping (5-80 N·m) → 7. Labeling with Safety Pictograms → 8. Weight Verification
Cycle Time: 12 seconds/bottle
? ATEX 2014/34/EU Zone 2 (Lubricant Mode) ? FDA 21 CFR 178.2010 (Detergent Mode) ? EPA FIFRA Compliance (Disinfectant Mode) ? ISO 9001:2015 ? GHS Labeling Compliant
Trifecta Protection System:
? Chemical Resistance: | **Material** | **Chemical Resistance**| |-----------------------|---------------------------| | Hastelloy C276 | 70% HNO? @ 50°C| | PTFE Lined| Concentrated H?SO? | | EPDM Seals| Ketones/Alcohols | ? Precision Performance: - 0.01g Resolution @ 20L - Auto-Buoyancy Compensation - 100Hz Real-Time Weighing ? Safety Architecture: 1. Vapor Detection Sensors 2. Emergency Solvent Flush 3. Explosion-Proof Enclosure
| Package | Target Product | Key Feature |
|---|---|---|
| **BioShield?** | Disinfectants | HEPA Filtration + UV Tunnel |
| **LubePro?** | Engine Oils | Viscosity-Adaptive Path |
| **FoamMaster?** | Detergents | Ultrasonic Cavitation System |
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
