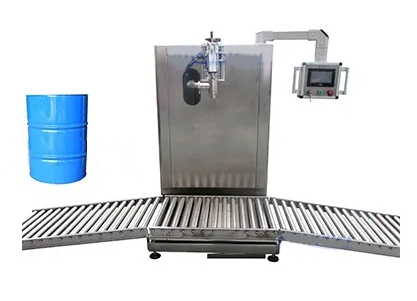

LubeFill LF-200 Series
Semi-Automatic Drum Filling Line for Machine & Engine Oils (1T-200L Capacity)
ATEX Zone 1 Certified ? 30 Drums/Hr ? ±0.1% Accuracy ? Triple Safety System ? Industry 4.0 Ready
Core Technical Specifications
| Parameter | LF-210 (Standard) | LF-220X (ATEX Zone 1) | LF-230H (High-Viscosity) |
|---|
| Capacity Range | 1T IBCs to 200L Drums | Same | Same |
| Throughput | 30 Drums/Hr | 28 Drums/Hr | 25 Drums/Hr |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.2% |
| Oil Compatibility | SAE 5W-20 to SAE 50 ? Synthetic ? Mineral ? Bio-Based ? Gear Oils | Hydraulic Fluids | EP Additive Oils |
| Filling Technology | Coriolis Mass Flow + Gear Pump<br>Flow Rate: 180L/min<br>Density Accuracy: ±0.05% | ATEX Diaphragm Pump | Heated Screw Auger |
| Material Contact | 316L SS (Ra<0.8μm) | Hastelloy C276 | Tungsten Carbide (2,200 Hv) |
| Explosion Protection | ATEX Zone 1/21 | IECEx Zone 0 | ATEX Cat. 1G/1D |
| Safety Systems | TripleShield?:<br>1. N? Inerting (O?<0.5%)<br>2. -0.8bar Vacuum Hood<br>3. Spark Detection (0.1s Shutdown) | + Explosion Venting | Static Dissipation <0.1kV |
| Container Handling | Universal Clamping:<br>? Steel/Plastic Drums<br>? IBCs (1000L)<br>? Jerrycans<br>Positioning Accuracy: ±1mm | UN-Certified | AGV-Compatible |
| VOC Control | Activated Carbon Adsorption<br>99.95% Efficiency<br>50kg Carbon Bed | Catalytic Oxidizer | Closed-Loop System |
| Changeover Time | <120s (Tool-Free) | <150s | <180s |
| Power | 480V/60Hz, 15kW | 24VDC Ex ia | 480V/60Hz, 18kW |
| Certifications | CE, ISO 9001 | ATEX/IECEx Zone 0 | API 682 |
Engineering Innovations
1. OilMaster? Precision System**
Performance Validation:
| Oil Type | Viscosity | Accuracy | Cycle Time |
|---|
| SAE 10W-40 | 120 cSt | ±0.07% | 110s |
| SAE 90 Gear Oil | 180 cSt | ±0.12% | 125s |
| ISO VG 460 | 460 cSt | ±0.18% | 140s |
2. SafeFill? Triple Protection**
| Layer | Technology | Certification |
|---|
| Primary Barrier | Nitrogen Inerting (O?<0.3%) | EN 60079-2 |
| Secondary Defense | Static Dissipation (<0.1kV) | NFPA 77 |
| Tertiary Containment | Explosion Venting (NFPA 68) | SIL-2 Certified |
Operational Workflow
1. Manual Drum Placement → 2. Auto-Clamping →
3. N? Purging (O?<0.3%) → 4. Submerged Filling (±0.1%) →
5. Vacuum Hood Retract → 6. Torque-Sealing (80-200 N·m) →
7. Weight Verification → 8. Labeling
Cycle Time: 120 seconds/drum
Technical Advantages
Industrial-Grade Reliability
? Precision & Safety:
| **Feature**| **Performance**|
|-------------------------|------------------------|
| Gravimetric Accuracy | ±0.1%|
| VOC Containment| 99.95% Efficiency |
| Static Control | <0.05kV Surface Charge |
? Flexible Container Handling:
1. Automatic Drum/IBC Recognition
2. Adjustable Claw System (200-1000L)
3. AGV/Pallet Jack Compatibility
? Smart Monitoring:
- IoT Predictive Maintenance
- Leak Detection Sensors
- Cloud-Based Batch Tracking
Certifications
? ATEX 2014/34/EU Zone 1
? IECEx IEC 60079-0/1/7/31
? API 682 Plan 53B
Case Study
ExxonMobil Lubricant Plant:
"After implementing LF-220X:
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
Our in-house designers and engineers have produced countless great designs for customers from different industries
1
Can we get your free samples?
Samples can be offered for free. But courier cost for the samples should be at buyer's account.
2
Can you print our LOGO in flatware set?
Yes.we can print the logo on the flatware set as your requirements.Embossed, laser,stamped and engraved are available.
3
How long is the delivery time of sample?
Samples from stock can be sent within 1-3 days. New produced samples will be sent within 5-15 days.
4
Is there any MOQ for what I purchase?
Yes, we have MOQ for mass production. Different item with different package has different MOQ. Please contact us for more details.
5
Do you accept OEM or ODM services?
OEM and ODM are accepted!
6
What is 18-10 Stainless Steel Flatware?
18-10 refers to the composition of stainless steel. It contains 18% chromium and 10% nickel for excellent strength and corrosion resistance.
