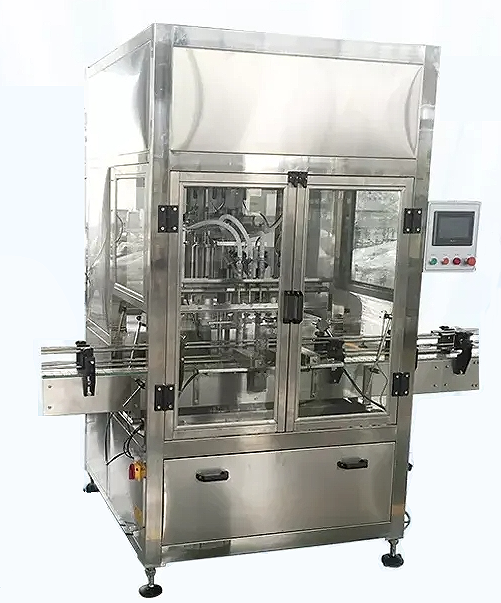

Fully automatic servo piston type filling machineThis machine is suitable for filling a liquid and cream products, especially for high viscosity materials, the effect is obvious.1.Adopt PLC programmab
6-Head Piston Filling & Capping System for Industrial Greases
60 Drums/Hour ? ±0.3% Accuracy ? 500,000 cP Capability ? ATEX Zone 1 Ready
| Parameter | GG-6100 (Standard) | GG-6200X (ATEX) | GG-6300H (High-Temp) |
|---|---|---|---|
| Capacity | 1-20kg (±0.3%) | 1-20kg (±0.35%) | 1-20kg (±0.32%) |
| Throughput | 60 Drums/Hour | 55 Drums/Hour | 50 Drums/Hour |
| Accuracy | ±0.3% Gravimetric | ±0.35% | ±0.32% |
| Viscosity Range | 10,000-500,000 cP | 50,000-800,000 cP | 100,000-1,000,000 cP |
| Filling Technology | 6 Servo Pistons | ATEX-Certified Pistons | Heated Path (80°C) |
| Capping Torque | 5-60 N·m (±2%) | 5-80 N·m (±2.5%) | 10-100 N·m (±1.8%) |
| Material Contact | Hardox 500 + PTFE Lined | Hastelloy C276 | Ceramic-Coated Path |
| Residual Grease | <0.05ml (Teflon Wiper) | <0.03ml | <0.01ml (Vacuum Suction) |
| Stringing Control | Air-Knife + Laser Cutoff | Spring-Loaded Retract | Capillary Break Valve |
| Changeover Time | <120s (Tool-Free) | <150s | <130s |
| Power | 380V/50Hz, 11kW | 24VDC Ex ia | 380V/50Hz, 13kW |
| Air Consumption | 300 L/min @ 0.7MPa | 280 L/min | 320 L/min |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | API 607/682 |
| Footprint (L×W×H) | 3200×1800×2500mm | 3400×2000×2700mm | 3300×1900×2600mm |
Performance Metrics:
| Grease Type | Fill Speed | RSD (6 Heads) |
|---|---|---|
| Lithium Complex | 3kg/min | 0.28% |
| Calcium Sulfonate | 2.5kg/min | 0.32% |
| Silicone Grease | 2kg/min | 0.35% |
| Technology | Function | Performance |
|---|---|---|
| Pulsed Air-Knife | 0.6MPa Burst @ 5Hz | 99% String Reduction |
| Laser Cutoff | 200W Fiber Laser (0.1s Pulse) | Clean Separation |
| Ionized Air Curtain | Static Dissipation (<10? Ω) | Zero Reattachment |
Wear-Resistant Architecture
| Component | Material | Hardness/Life |
|---|---|---|
| Piston Cylinders | Tungsten Carbide Coated | 2,200 Hv / 500,000 Cycles |
| Wiper Seals | Kalrez?6375 + PTFE Backing | 300°C / 10,000 Hours |
| Nozzles | Ceramic-Zirconia Composite | 1,500 Hv / Zero Wear |
Intelligent Viscosity Adaptation
1. AGV Drum Loading → 2. Auto-Centering → 3. 6-Head Simultaneous Filling (±0.3%) → 4. Laser String Cutting → 5. Vacuum Nozzle Clean → 6. Torque-Controlled Capping (5-60 N·m) → 7. Weight Verification → 8. Palletizing
Cycle Time: 60 seconds/drum
| Component | GG-6100 | GG-6200X |
|---|---|---|
| Piston Drive | Servo Motor (0.01mm res) | ATEX Brushless DC Motor |
| Capping Head | 6-Axis Robotic Arm | Explosion-Proof Spindle |
| Control System | 10" HMI with GreaseOS? | SIL-2 Certified PLC |
| Safety System | Laser Curtain + E-Stop | Pressurized Cabin (ATEX) |
? ATEX 2014/34/EU (GG-6200X) ? CE EN 60204-1 ? ISO 9001:2015 ? API 682 Seal Plan
SKF Lubricants Case Study:
*"After 8 months using GG-6100:
Output: 22 → 60 Drums/Hour (+172%)
Grease Waste: 4.8% → 0.09%
Capping Consistency: ±8% → ±1.8% Torque
ROI: 5.2 months"*
