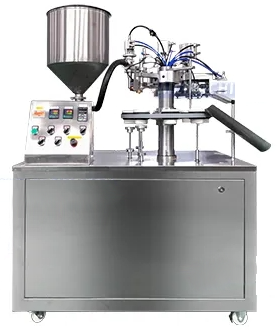

soft tube filling and sealing machine is mainly used for plastic tube filling and sealing. It has been widely used in the fields of pharmacy, cosmetic, food,toothpaste, ointment and chemical etc.This
High-Speed Soft Tube Filling & Sealing System
25 Tubes/Min ? ±0.5% Accuracy ? cGMP/ISO 15378 Certified ? Zero Residual
| Parameter | TM-8100 (Cosmetics) | TM-8200P (Pharma) | TM-8300H (High-Visc) |
|---|---|---|---|
| Tube Type | Laminated Plastic ? Aluminum ? Co-extruded | Same + Barrier Tubes | Same + Metallized Tubes |
| Capacity | 5-150ml (±0.5%) | 5-150ml (±0.3%) | 10-200ml (±0.4%) |
| Throughput | 25 tubes/min | 22 tubes/min | 20 tubes/min |
| Accuracy | ±0.5% gravimetric | ±0.3% | ±0.4% |
| Viscosity Range | 1,000-500,000 cP | 500-300,000 cP | 50,000-2,000,000 cP |
| Filling Technology | Servo Piston + Mass Flow | Peristaltic Pump (FDA) | Twin-Screw Auger |
| Sealing Method | Ultrasonic + Induction Seal | Laser Sealing | Hot Air Crimping |
| Material Contact | 316L EP (Ra<0.4μm) | 316L EP (Ra<0.2μm) | Ceramic-Coated Path |
| Residual Control | <0.05ml (Vacuum Suction) | <0.03ml | <0.01ml (Teflon Scraper) |
| O? Barrier | <0.01 cc/pkg/day | <0.005 cc/pkg/day | <0.02 cc/pkg/day |
| Changeover Time | <90s (Tool-Free) | <100s | <85s |
| Vision Inspection | Fill Height ±0.3mm ? Seal Integrity ? Print Alignment | Same + Particulate Scan | Same + Metal Detection |
| Power | 380V/50Hz, 5.5kW | 380V/50Hz, 4.8kW | 380V/50Hz, 7.2kW |
| Clean Time | CIP 15-min Cycle | SIP/CIP 20-min Cycle | Steam Sterilization |
| Certifications | ISO 22716 | FDA cGMP/ISO 15378 | EHEDG EL Class I |
Performance Metrics:
| Tube Type | Seal Success Rate | Conventional |
|---|---|---|
| Laminate Tubes | 99.9% | 95-97% |
| Aluminum Tubes | 99.7% | 92-95% |
| Squeeze Tubes | 99.5% | 85-90% |
| Technology | Function | Performance |
|---|---|---|
| Vacuum Suction | -0.8 bar Reverse Flow | Residual <0.03ml |
| Teflon Scraper | 360° Wall Contact | Product Recovery >99.9% |
| Capillary Break | Air-Knife Cutoff | Zero Stringing |
Cosmetics & Toothpaste
| Feature | Specification |
|---|---|
| Pearlescent Protection | Low-Shear Flow Path |
| Flavor Lock | N? Headspace Purging (O?<0.3%) |
| Print Registration | ±0.3mm Alignment (Vision System) |
Pharmaceuticals
Aseptic Filling:
| Component | Certification |
|---|---|
| ISO Class 5 | ISO 14644-1 |
| VHP Sterilization | Log6 Bioburden Reduction |
Potent Compound Safety:
Industrial Adhesives
| Challenge | Solution |
|---|---|
| Stringing | Laser Cutoff + Vacuum Suction |
| Settling | In-line Dynamic Mixer |
| Skin Formation | N? Blanketing (O?<0.5%) |
10" HMI with TubeOS?
AI-Driven Features:
Seal Defect Prediction:
| Parameter | Action |
|---|---|
| Seal Temp Variation >5°C | Auto-Calibration |
| Pressure Drop >10% | Seal Head Replacement Alert |
OEE Dashboard:
| Metric | Real-Time Tracking |
|---|---|
| Uptime | 99.4% |
| Reject Rate | <0.05% |
? FDA 21 CFR 210/211 (TM-8200P) ? ISO 15378 Primary Packaging ? CE EN ISO 13485 ? EHEDG EL Class I
1. Tube Feeding → 2. 3D Vision Positioning → 3. N? Purging (O?<0.5%) → 4. Precision Filling (±0.5%) → 5. Vacuum Suction Retraction → 6. Ultrasonic Sealing (20kHz) → 7. Cooling & Crimping → 8. 100% Seal Inspection → 9. Batch Coding
Cycle Time: 2.4 seconds/tube
L'Oréal Case Study:
*"After 8 months using TM-8100:
Output: 15 → 25 tubes/min (+67%)
Product Waste: 3.5% → 0.08%
Seal Failure Rate: 1.2% → 0.03%
ROI: 5 months"*
