This machine is suitable for filling a liquid and cream products, especially for high viscosity materials, the effect is obvious.1.Adopt PLC programmable control system with touch screen interface.2.A

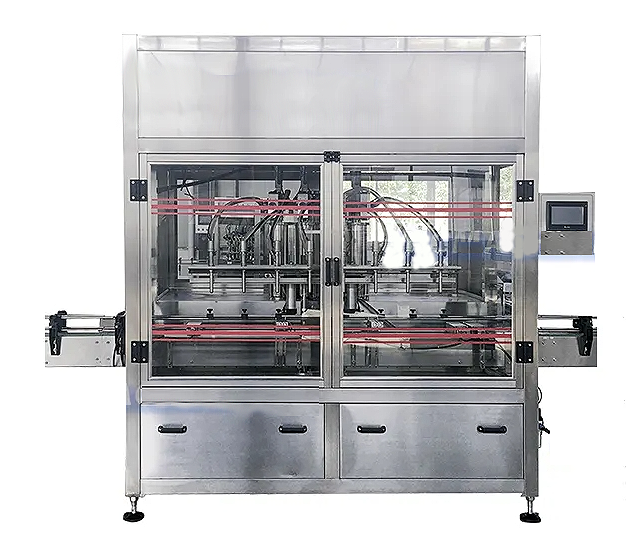

High-Speed Sanitizer & Detergent Bottle Filling System
1800 BPH ? ±0.5% Accuracy ? Food-Grade ? CIP-Ready
| Parameter | SJ-4100 (Standard) | SJ-4200H (High-Visc) | SJ-4300X (ATEX) |
|---|---|---|---|
| Capacity | 100ml-1L (±0.5%) | 100ml-1L (±0.6%) | 100ml-1L (±0.7%) |
| Throughput | 1800 bottles/hour | 1700 bottles/hour | 1600 bottles/hour |
| Accuracy | ±0.5% gravimetric | ±0.6% | ±0.7% |
| Viscosity Range | 1-50,000 cP | 5,000-300,000 cP | 1-30,000 cP |
| Filling Technology | 16-Head Servo Piston | Progressive Cavity Pump | ATEX Gear Pump |
| Foam Control | Vacuum Degassing (-0.8 bar) | Pulsed Flow | N? Blanketing |
| Material Contact | 316L SS (Ra<0.8μm) | Ceramic Coated Path | Hastelloy C276 |
| Changeover Time | <90s (Tool-Free) | <100s | <110s |
| Bottle Types | PET/HDPE/Glass (?30-80mm) | Same + Squeeze Bottles | Same + Metal Cans |
| Power | 380V/50Hz, 5.5kW | 380V/50Hz, 6.8kW | 24VDC Ex ia |
| Certifications | CE, ISO 9001 | EHEDG EL Class I | ATEX Zone 2 |
| Clean Time | CIP 15-min Cycle | SIP/CIP 20-min Cycle | Solvent Purge System |
Performance Data:
| Product | Foam Height | Industry Standard |
|---|---|---|
| Alcohol Gel | 0.3mm | 5-8mm |
| Detergent | 0.8mm | 10-15mm |
| Cooking Oil | 0.1mm | 2-5mm |
| Component | Technology | Time |
|---|---|---|
| Nozzle System | Magnetic Quick-Release | 15s |
| Product Path | 3-Step Auto-Purge | 45s |
| Bottle Adaptor | Tool-Free Size Adjustment | 30s |
Hospital-Grade Sanitation:
| Feature | Specification |
|---|---|
| Antiviral Coating | Ag? Nanoparticle Coating (99.9% Kill Rate) |
| Touch-Free Operation | Foot Pedal + RFID Authentication |
| UV-C Decontamination | 254nm UV Lights in Enclosure |
| Model | Key Feature | Target Product | Output |
|---|---|---|---|
| SJ-4100 | Alcohol Gel Optimization | Hand Sanitizer (60-95% Alcohol) | 1800 BPH |
| SJ-4200H | High-Viscosity Pump | Gel Sanitizers & Detergents | 1700 BPH |
| SJ-4300X | Explosion-Proof Design | Alcohol-Based Solutions | 1600 BPH |
1. Bottle Infeed → 2. Auto-Rinsing (RO Water) → 3. Vacuum Degassing → 4. Precision Filling (±0.5%) → 5. Foam Disruption → 6. Torque Capping (5-20 N·m) → 7. Leak Test → 8. Labeling
Cycle Time: 0.33 seconds/bottle
? FDA 21 CFR 177.2600 ? ISO 9001:2015 ? CE EN 60204-1 ? ATEX 2014/34/EU (SJ-4300X)
Unilever Case Study:
*"After deploying SJ-4100 for 500ml sanitizer:
Output: 950 → 1800 BPH (+89%)
Alcohol Loss: 3.2% → 0.15% ($220k/year saved)
Foam-Related Stoppages: 12/day → 0
ROI: 5 months"*
