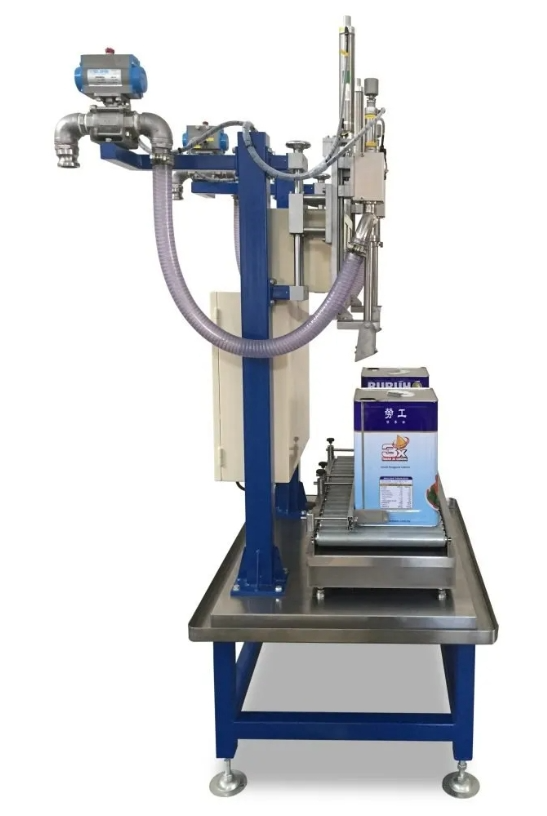

SEMI AUTO TIN CAN WEIGHT FILLING MACHINE

Simple & Easy to operate filling machine, simply place the empty tins on the weighing platform, and it will automatically fill by itself. No mechanical setting on machine when changing container s

Brand：

Model：

Semi-Auto Gravimetric Can Filler GF-300 Series

Precision Filling Where Automation Meets Flexibility

Core Innovation: Human-Guided Accuracy

Shanghai Guangzhi GF-300 achieves ±0.1% gravimetric accuracy in semi-automatic operation – combining OIML Class 0.5 load cells, adaptive flow control, and food-grade construction to solve critical challenges:
? ±0.1% dosing for oils/syrups/chemicals
? <90s changeover between can sizes
? 50% cost savings vs full automation
? Eliminates manual filling errors (±3%)

Technology Highlights

1. Three-Stage Precision Filling

Performance Specifications:

Weighing System:

OIML R60 Class 0.5 load cells (±0.05% linearity)

Flow Control:
Phase Flow Rate Accuracy
Bulk Fill 8 L/min ±0.5%
Transition 3 L/min ±0.2%
Dribble Fill 0.8 L/min ±0.05%

Phase	Flow Rate	Accuracy
Bulk Fill	8 L/min	±0.5%
Transition	3 L/min	±0.2%
Dribble Fill	0.8 L/min	±0.05%

2. Safety & Ergonomics

Dual Control Modes:
Mode Application Safety Certification
Foot Pedal Hands-free operation ISO 13849 PLc
Two-Hand Buttons Fixed can positioning Dual-channel safety relay
Spill Prevention:

Mode	Application	Safety Certification
Foot Pedal	Hands-free operation	ISO 13849 PLc
Two-Hand Buttons	Fixed can positioning	Dual-channel safety relay

Tapered anti-splash nozzles (residual ≤0.1ml)
Grounding kit (<10? Ω for static dissipation)

Technical Specifications

Model	GF-310 (Standard)	GF-320F (Food Grade)	GF-330X (ATEX)
Capacity	0.5-10kg	0.2-5kg	1-15kg
Accuracy	±0.1%	±0.1%	±0.2%
Speed	20-40 cans/hour	15-35 cans/hour	15-30 cans/hour
Can Size	?70-150mm × H50-250mm	Same	Same
Material Contact	304 SS + EPDM	316L SS + FDA UHMW-PE	316L + ATEX polymers
Power	220V/50Hz, 0.6kW	220V/50Hz, 0.7kW	24VDC Ex ia
Changeover Time	<90s	<120s	<100s
Compliance	CE EN 60204-1	EHEDG + NSF/3-A	ATEX Cat. 3G

Industry-Specific Solutions

Application	Challenge	GF-300 Solution	Benefit
Edible Oils	Overfill losses ($0.5M/yr)	±0.1% accuracy + batch traceability	↓98% giveaway costs
Maple Syrup	Stickiness causes drips	PTFE-coated nozzles + air knife	Residual ↓ to 0.05g/can
Industrial Solvents	Static ignition risk	ATEX version + grounding kit	Surface resistivity <10? Ω
Pharma Lubricants	Cross-contamination	Quick-change nozzles + CIP ports	Cleaning time ↓70%

Operational Economics

Food Oil Producer Case:
Manual Process:
? ±2.5% variance → $120k/year material waste
? 35 cans/hour max
GF-310 Implementation:
? ±0.1% accuracy
? Operator focus: can placement only
Results:
? $110k annual savings
? Throughput ↑ to 40 cans/hour
? ROI: 5.2 months

Why Semi-Auto?

Parameter	Manual Filling	GF-300 Semi-Auto	Full Auto Line
Accuracy	±3%	±0.1%	±0.05%
Speed	20-30 cans/hour	30-40 cans/hour	100+ cans/hour
Changeover	Immediate	<90s	>30 min
Investment	$1k	$15 k ?$ 25k	>$150k
Flexibility	High	Extreme	Low

Certifications & Support

Global Compliance:

OIML R60 Class 0.5
FDA 21 CFR 177.2600 (food contact)
EHEDG Doc. 8 (hygienic design)
ATEX 2014/34/EU (GF-330X)

Premium Service:

2-Hour Remote Support: AR-guided troubleshooting
Critical Spares:
Component Delivery
Load cells ≤48h global
Nozzle kits ≤24h domestic
Lifetime Calibration:

Component	Delivery
Load cells	≤48h global
Nozzle kits	≤24h domestic

Annual NIST-traceable certification
| Accuracy Shift | Action |
|--------------------|--------------------------|
| >0.05% | Free sensor replacement |

Precision Without Compromise
Shanghai Guangzhi GF-300: Where operator expertise meets metrological excellence – filling high-value products with confidence. ??
