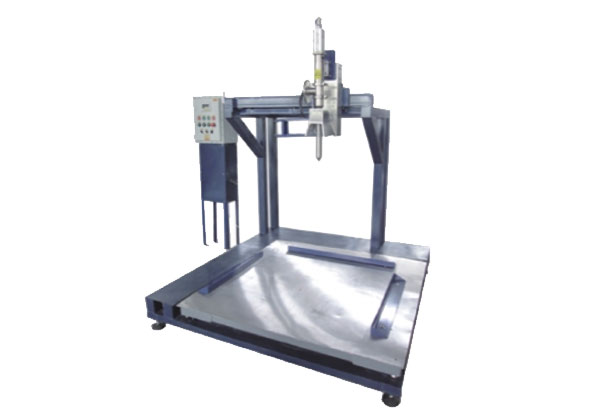

The swing arm filling gun adopts large rotary bearings and linear tracks, which can move left and right, front and back, and is fully suitable for filling 200L * four-way and IBC ton barrels;The pneum
Dedicated IBC Lubricants Filling System
High-Precision ? Foam-Free ? API/MIL Compliance
| Parameter | LT-8100 (Standard) | LT-8200H (High-Visc) | LT-8300X (ATEX) |
|---|---|---|---|
| Capacity | 500-1000L (±0.1%) | 500-1000L (±0.15%) | 500-1000L (±0.2%) |
| Throughput | 22 IBCs/hour | 18 IBCs/hour | 20 IBCs/hour |
| Accuracy | ±0.1% mass flow | ±0.15% | ±0.2% |
| Viscosity Range | ISO VG 32-1500 | ISO VG 220-3200 | ISO VG 46-1000 |
| Flow Rate | 300 L/min | 180 L/min | 250 L/min |
| Foam Control | Vacuum Degassing (-0.8 bar) | Pulsed Flow + Defoamer | Ultrasonic Cavitation |
| Additive Dosing | 8-Port System (±0.3%) | 12-Port System (±0.2%) | 6-Port ATEX System (±0.5%) |
| Material Contact | 316L SS + PTFE Lined | Hardox 500 + Ceramic Coating | Hastelloy C276 |
| Temp Control | 20-80°C (±0.5°C) | 40-120°C (±0.3°C) | 15-70°C (±1°C) |
| Power | 480V/60Hz, 18kW | 480V/60Hz, 22kW | 24VDC Ex ia, 15kW |
| N? Blanketing | 50 L/min (O?<0.3%) | 60 L/min | 55 L/min |
| Footprint (L×W) | 4.5m × 3.8m | 5.0m × 4.2m | 4.8m × 4.0m |
| Certifications | API 607/682 | MIL-PRF-2105E | ATEX Zone 1 |
Performance Metrics:
| Lube Type | Flow Rate | Foam Level | Accuracy |
|---|---|---|---|
| Gear Oil (ISO 320) | 180 L/min | <0.5% Volume | ±0.12% |
| Grease (NLGI 2) | 75 kg/min | Zero Entrainment | ±0.18% |
| ATF Fluid | 250 L/min | <0.3% | ±0.08% |
| Additive Type | Dosing Tech | Precision | Compatibility |
|---|---|---|---|
| Viscosity Modifiers | Micro-Screw Feeder | ±0.15% | OCPs/SSPIs |
| Anti-Wear Agents | Coriolis Micro-Flow | ±0.08% | ZDDP/MoDTC |
| Detergents | Pulsed Diaphragm Pump | ±0.2% | Sulfonates/Phenates |
Mining & Heavy Equipment
| Feature | Specification |
|---|---|
| Extreme Pressure | Auto-dosing of S-P additives |
| Water Contamination | <50ppm H?O detection |
| Abrasion Resistance | Tungsten Carbide Wear Parts |
Aerospace & Defense
MIL-PRF-23699 Compliance Package:
Traceable additive logs
Helium leak testing ports
SIL-3 safety interlocks
Cleanliness Standards:
| Standard | Level |
|---|---|
| ISO 4406 | 14/12/9 |
| NAS 1638 | Class 6 |
Wind Turbine Fluids
| Challenge | Solution |
|---|---|
| Biodegradability | Dedicated fluid path (no cross-contamination) |
| Low-Temp Flow | 40°C Path Heating |
| Oxidation Control | N? Blanketing (O?<0.1%) |
12" HMI with LubeOS?
Predictive Features:
Foam Risk AI:
| Parameter | Preventive Action |
|---|---|
| Air Entrainment >0.5% | Vacuum Degassing Boost |
| Viscosity Drop >5% | Flow Rate Reduction |
Maintenance Alerts:
| Component | Replacement Threshold |
|---|---|
| Pump Wear | Efficiency <92% |
| Seal Degradation | Leak Rate >0.1ml/min |
? API 607/682 (Fire Safe Valves) ? ATEX 2014/34/EU Zone 1 (LT-8300X) ? MIL-PRF-2105E / 23699 ? ISO 12922 (Biodegradable Fluids) ? FDA 21 CFR 178.3570
1. AGV Tote Positioning → 2. Grounding Verification (<10Ω) → 3. N? Purging (O?<0.3%) → 4. Vacuum Degassing (-0.8 bar) → 5. Mass Flow Filling (±0.1%) → 6. Additive Injection → 7. Ultrasonic Homogenization → 8. Seal Integrity Test
Cycle Time: 2.7 min/IBC
ExxonMobil Singapore Refinery:
*"After 12 months using LT-8100:
Output: 15 → 22 IBCs/hour (+47%)
Additive Accuracy: ±0.8% → ±0.12%
Foam Reduction: 4.2% → <0.3%
VOC Emissions: ↓99% (EPA Method 25A)"*
