Product features:● Parameter settings - Store weight settings for up to 10 different materials, making it easy to switch between various barrel specifications when fillingData statistics - including d

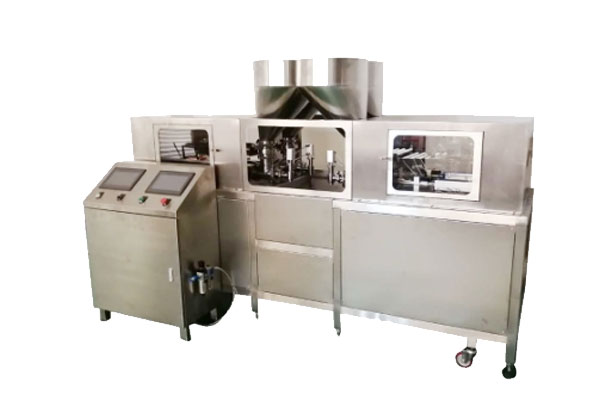

Automated Chemical Liquid Can Filling System
±0.1% Accuracy ? ATEX Certified ? Multi-Chemical Compatibility
| Parameter | CF-2100 (Standard) | CF-2200X (ATEX) | CF-2300F (Food Grade) |
|---|---|---|---|
| Capacity Range | 1-20L (±0.1%) | 1-20L (±0.15%) | 1-20L (±0.08%) |
| Throughput | 45 cans/hour | 40 cans/hour | 42 cans/hour |
| Accuracy | ±0.1% gravimetric | ±0.15% | ±0.08% |
| Viscosity Range | 1-500,000 cP | 5-300,000 cP | 1-50,000 cP |
| Filling Technology | Servo Piston + PTFE Seal | ATEX Gear Pump | Peristaltic Pump |
| Chemical Compatibility | Acids/Alkalis/Solvents | Flammable Liquids | Food-Grade Chemicals |
| Material Contact | 316L SS + PTFE | Hastelloy C276 | 316L EP (Ra<0.4μm) |
| Drip Control | Air-Knife + Vacuum Suction | Spring-Loaded Nozzle | Capillary Break Valve |
| Changeover Time | <90s (Tool-Free) | <100s | <80s |
| Power | 220V/50Hz, 1.8kW | 24VDC Ex ia | 220V/50Hz, 1.5kW |
| Leakage Rate | <0.01 ml/fill | <0.005 ml/fill | <0.001 ml/fill |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | FDA 21 CFR 177.2600 |
| Footprint (L×W×H) | 1800×1200×2200mm | 2000×1400×2400mm | 1900×1300×2300mm |
Safety Features:
| Risk | Technology | Performance |
|---|---|---|
| Static Ignition | Conductive Paths (<10? Ω) | NFPA 77 Compliance |
| Chemical Splash | Retractable Nozzle + Splash Guard | Operator Protection Level D |
| Vapor Exposure | Activated Carbon Hood (95% capture) | OSHA PEL Compliance |
| Chemical Type | Filling Mode | Flow Rate | Precision |
|---|---|---|---|
| Thin Solvents | Gravity Jet (0.5s pulse) | 1.2L/sec | ±0.05% |
| Viscous Resins | Pulsed Piston | 0.8L/sec | ±0.1% |
| Abrasive Slurries | Ceramic-Lined Auger | 0.3L/sec | ±0.15% |
Industrial Chemicals
| Feature | Specification |
|---|---|
| Acid Resistance | PTFE-Lined Path (pH 0-14) |
| Solvent Compatibility | Kalrez?6375 Seals |
| Batch Traceability | RFID Tagging (ISO 9001) |
Electronics Cleaning
Ultra-Pure Filling:
| Parameter | Performance |
|---|---|
| Particles | ISO Class 3 (≥0.5μm) |
| Metals | <1 ppb (Fe, Na, K) |
| Moisture | <10 ppm (Karl Fischer) |
Adhesives & Sealants
| Challenge | Solution |
|---|---|
| Stringing | Air-Knife Cutoff + Reverse Suction |
| Bubble Entrapment | Vacuum Degassing (-0.8 bar) |
| Settling | Ultrasonic Agitation |
7" HMI with ChemiOS?
AI-Driven Features:
Corrosion Prediction:
| Parameter | Action |
|---|---|
| pH <2 or >12 | Auto Flush Protocol |
| Chloride >500ppm | Material Upgrade Alert |
Predictive Maintenance:
| Component | Alert Threshold |
|---|---|
| Seal Wear | Friction >6N |
| Valve Cycles | >500,000 |
| Metric | Manual Filling | CF-2100 | Improvement |
|---|---|---|---|
| Accuracy | ±3-8% | ±0.1% | 30-80x better |
| Chemical Waste | 5-15% | <0.2% | ↓97% |
| Operator Safety | High Risk | Barrier Protection | 0 Exposure |
| Output | 15 cans/hour | 45 cans/hour | 200% Increase |
? ATEX 2014/34/EU (CF-2200X) ? FDA 21 CFR 177.2600 ? ISO 9001:2015 ? CE EN 60204-1
1. AGV Can Loading → 2. Barcode Scanning → 3. Auto-Nozzle Alignment → 4. N? Purging (O?<0.5%) → 5. Precision Filling (±0.1%) → 6. Cap Sealing → 7. Weight Verification → 8. Labeling
Cycle Time: 80 seconds/can
APPLICABLE BARREL TYPE
