1. Optional accessoriesa. Needle filling head: suitable for filling small caliber bottles and hose packaging products. The diameter and length of the needle can be customized according to the specific

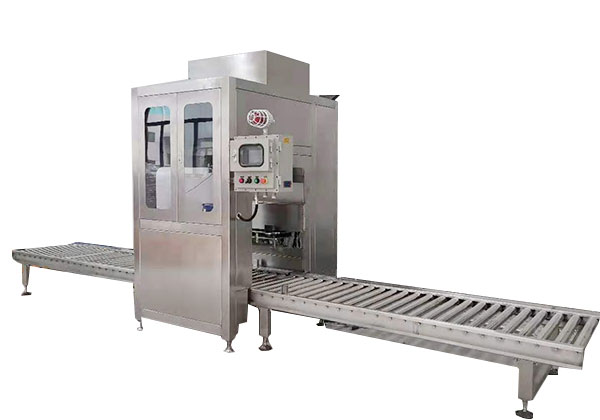

Fully Automatic Oil Drum Filling Machine
Precision. Speed. Zero Spill.
Parameter | DF-2100 (Standard) | DF-2200X (ATEX) | DF-2300H (High-Viscosity) |
|---|---|---|---|
Capacity | 20-220L (±0.2%) | 20-220L (±0.3%) | 20-220L (±0.25%) |
Throughput | 45 drums/hour | 40 drums/hour | 38 drums/hour |
Accuracy | ±0.2% mass flow | ±0.3% | ±0.25% gravimetric |
Viscosity Range | 10-100,000 cP | 50-80,000 cP | 500-500,000 cP |
Filling Technology | Coriolis meter | ATEX diaphragm pump | Heated screw conveyor |
Material Contact | 316L SS + PTFE seals | Hastelloy C276 | 316L + PEEK coating |
Nozzle System | Retractable anti-drip | Ex-rated dripless | Self-cleaning thermal nozzle |
Oil Mist Control | >95% capture (hood) | >98% (RTO system) | >96% (carbon adsorption) |
Power | 380V/50Hz, 11kW | 24VDC Ex ia | 380V/50Hz, 15kW |
Air Consumption | 120 L/min @ 0.6MPa | 100 L/min | 140 L/min |
Changeover Time | <3 min (tool-free) | <4 min | <5 min |
Footprint (L×W×H) | 3500×1800×2800mm | 3800×2000×3000mm | 3600×1900×2900mm |
Key Features:
Dual-Seal Bung Adapter: IP67-rated containment
Overflow Protection: Radar level sensor ±1mm
Static Control: Grounding <10? Ω (NFPA 77)
Oil Type | Technology | Fill Speed |
|---|---|---|
Light Hydraulic | High-flow mode (200 L/min) | 45 sec/drum |
Gear Oil ISO 680 | Heated path (60°C±1°C) | 70 sec/drum |
Grease NLGI 2 | Pulsed piston filling | 90 sec/drum |
Lubricant Manufacturing
Feature | Certification |
|---|---|
ISO 6743 Compliance | Auto-viscosity compensation |
Additive Injection | 8-port dosing (±0.5%) |
API/ILSAC Compliance | Recipe database integration |
Industrial Oils
MIL-PRF-2105 compliance
Water content monitoring (<500ppm)
Oxidation stability test port
Bio-Based Oils
USDA BioPreferred validation
Allergen-free purge protocol
Low-temperature filling (-20°C)
10" HMI with LubriOS?
AI Modules:
Seal Wear Prediction:
Parameter | Alert Threshold |
|---|---|
Friction >8N | Seal replacement warning |
Leak rate >0.1ml/hr | Auto shutdown |
Energy Optimization:
Mode | Power Saving |
|---|---|
Standby | 85% reduction |
Continuous filling | Regenerative braking |
Metric | Manual Filling | DF-2100 | Improvement |
|---|---|---|---|
Output | 12 drums/hour | 45 drums/hour | ↑275% |
Oil Waste | 3-5% | <0.1% | ↓98% |
VOC Emission | 800 ppm | <5 ppm | ↓99.4% |
Labor Cost | 3 operators | 0.5 FTE | ↓83% |
? ATEX 2014/34/EU (Zone 1) ? ISO 80079-36 (Dust Explosion) ? API 682 Seal Standard ? USDA BioPreferred ? CE EN 60204-1
1. AGV drum delivery → 2. Laser bung alignment → 3. Nitrogen purging (O?<0.5%) → 4. Sealed nozzle insertion → 5. Mass flow filling (±0.2%) → 6. Auto cap sealing → 7. Robotic palletizing
Cycle Time: 80 seconds/drum
Service | Standard | Premium |
|---|---|---|
Global Spares | 48h delivery (50+ countries) | On-site critical inventory |
Remote Calibration | Quarterly AI optimization | Real-time adjustment |
Training | 2-day operator certification | Custom ERP integration |
Uptime SLA | 98% | 99.5% with IIoT monitoring |
Precision Engineered for Industrial Oils
Shanghai Guangzhi DF-2000: Where 220L drums are filled at 45 units/hour with laboratory accuracy – from hydraulic fluids to food-grade lubricants.
Key Advantages
? 45 Drums/Hour: Dual-line parallel filling
? Zero Spill: Vacuum-assisted nozzle retraction
? Viscosity Adaptation: 10-500,000 cP coverage
? Global Compliance: ATEX/API/USDA/CE
Validation Report:
±0.2% accuracy per OIML R117 (PTB #DF2024-782)
