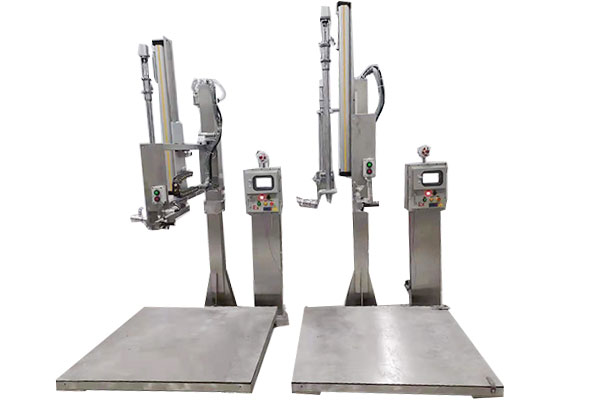

Oil Paint Drum Filling Machine
Explosion-Safe Precision for Industrial Coatings
Parameter | OM-3100 (Standard) | OM-3200X (ATEX) | OM-3300H (High-Viscosity) |
|---|---|---|---|
Capacity | 20-220L (±0.2%) | 20-220L (±0.3%) | 20-220L (±0.25%) |
Throughput | 35 drums/hour | 30 drums/hour | 28 drums/hour |
Accuracy | ±0.2% mass flow | ±0.3% | ±0.25% gravimetric |
Viscosity Range | 100-100,000 cP | 200-80,000 cP | 500-500,000 cP |
Filling Technology | Coriolis Meter | Ex-rated Gear Pump | Heated Screw Conveyor |
Material Contact | 316L SS + PTFE | Hastelloy C276 | Hardox 500 + PEEK Coating |
Explosion Protection | N/A | ATEX Zone 1 (IIB T4) | N/A |
VOC Control | Carbon Adsorption >99% | Thermal Oxidizer >99.5% | Carbon + Condensation |
Anti-Skinning | N? Blanketing (O?<0.5%) | Same + Ultrasonic Agitation | Pulse Filling |
Power | 380V/50Hz, 5.5kW | 24VDC Ex ia | 380V/50Hz, 7.2kW |
Clean Time | <15 min (Solvent CIP) | <20 min | <25 min (Heated Purge) |
Footprint (L×W×H) | 3200×1800×2500mm | 3500×2000×2700mm | 3300×1900×2600mm |
Certifications:
ATEX 2014/34/EU (Category 1G)
NFPA 77 Static Control
IECEx IEC 60079 Series
Paint Type | Technology | Performance |
|---|---|---|
Alkyd Enamels | 40°C Heated Path (±1°C) | Viscosity stability ±3% |
Epoxy Primers | Pulsed Flow Anti-Settling | Pigment suspension >98% |
Metallic Paints | Low-Shear Pump + Agitation | Flake orientation ±5° |
Automotive Refinish
Feature | Specification |
|---|---|
Color Matching | ΔE<0.5 (Pantone? calibrated) |
Fast Drying | IR Pre-Heating Option (60°C) |
VOC Compliance | <340g/L mode (EPA Method 24) |
Industrial Maintenance
MIL-PRF-23236C compliant filling
Abrasion-resistant additive dosing
Salt spray test validation port
Marine & Protective Coatings
Challenge | Solution |
|---|---|
High-Build Epoxy | Anti-Sag Pulsed Filling |
Zinc-Rich Primers | Conductive Grounding (<10? Ω) |
Salt Fog Exposure | 316L SS + Fluorocarbon Coating |
10" HMI with CoatOS?
AI-Driven Features:
Skin Prevention AI:
Risk Factor | Action |
|---|---|
O? >0.8% for >1min | Auto N? Boost |
Temp drop >5°C | Preheat Circuit Activation |
Predictive Maintenance:
Component | Alert Threshold |
|---|---|
Pump Wear | Vibration >4.5mm/s |
Seal Degradation | Leak Rate >0.1ml/min |
PPG Coatings Plant Case:
*"After 8 months using OM-3100:
Output: 12 → 35 drums/hour (+192%)
Paint Waste: 3.8% → 0.15%
VOC Emissions: 850 ppm → <5 ppm
ROI: 7 months"*
? ATEX 2014/34/EU (OM-3200X) ? ISO 12944 C5-M Corrosion Rating ? FDA 21 CFR 175.300 (Indirect Food Contact) ? CE EN 60204-1
1. AGV Drum Loading → 2. N? Purging (O?<0.5%) → 3. Viscosity Scan → 4. Precision Filling (±0.2%) → 5. Auto Lid Sealing → 6. VOC Capture Hood → 7. Robotic Palletizing
Cycle Time: 1.7 minutes/drum
.
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
