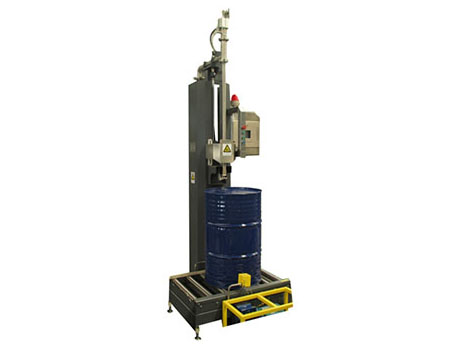

Suitable for the filling needs of containers ranging from 15L to 1000L. The automatic filling, measurement, opening, closing, and capping of products are assisted by manual labor. The same equipment i
Semi-Automatic Glues Filling Machine
Precision Adhesive Dispensing | Zero Stringing | Universal Viscosity
Parameter | GP-210 (Standard) | GP-220H (High-Visc) | GP-230X (Solvent-Resistant) |
|---|---|---|---|
Capacity Range | 100ml-20L (±0.5%) | 500ml-30L (±0.8%) | 100ml-20L (±0.6%) |
Throughput | 30 containers/hour | 25 containers/hour | 28 containers/hour |
Accuracy | ±0.5% | ±0.8% | ±0.6% |
Viscosity Range | 10-500,000 cP | 50,000-2,000,000 cP | 10-300,000 cP |
Dispensing Technology | Servo Piston + Teflon? Coated | Auger Screw + Heated Barrel | PTFE-Free Ceramic Piston |
Stringing Control | Air-Knife Cutoff | Reverse Suction | Anti-Static Ionizer |
Material Contact | 304 SS + PTFE | Hard Chrome Plated Steel | 316L SS + Kalrez? |
Nozzle Options | 8 sizes (1-20mm) | 6 sizes (3-25mm) | 10 sizes (0.5-15mm) |
Power | 220V/50Hz, 0.9kW | 220V/50Hz, 1.5kW | 110V/60Hz, 1.2kW |
Air Pressure | 0.6MPa (85 psi) | 0.8MPa (115 psi) | 0.6MPa |
Footprint (L×W×H) | 800×600×1400mm | 900×700×1500mm | 850×650×1450mm |
Performance Metrics:
Glue Type | String Length | Solution |
|---|---|---|
Silicone Sealant | >30cm (conventional) | <1cm (Air-Knife) |
Epoxy Resin | >20cm | 0cm (Reverse Suction) |
Hot Melt Adhesive | >15cm | <0.5cm (Heated Nozzle) |
Accessory | Viscosity Range | Key Feature |
|---|---|---|
Standard Piston | 10-50,000 cP | Quick-Change Cylinder |
Heated Barrel | 50,000-500,000 cP | 80°C ±2°C PID Control |
Auger Screw | 500k-2M cP | Anti-Caking Pulsed Rotation |
Pressure Pot | 10-5,000 cP | Bubble-Free Dispensing |
Woodworking & Furniture
Adhesive | Nozzle Type | Cycle Time |
|---|---|---|
PVA Glue | Flat Fan 15mm | 8s/L |
PU Foam Adhesive | Self-Cleaning 8mm | 12s/L |
Packaging & Labeling
Hot Melt Glue:
180°C Melt Temperature
5s Heat-Up Time
Pressure Sensitive Adhesives:
Parameter | Performance |
|---|---|
Set Time | <0.5s (Auto Shutoff) |
Accuracy | ±0.3ml @ 5ml dispense |
Electronics Assembly
Conductive Epoxy Dispensing:
Resistivity Control ±5%
Static-Safe Nozzle (<10? Ω)
UV-Cure Adhesives:
Amber UV-Blocking Cover
Dark Room Mode
7" Touchscreen with GlueOS?
Memory Functions:
50+ Recipe Slots: Save viscosity/volume/speed profiles
Auto Purge Sequence: 3-step nozzle cleaning (saves 15s/changeover)
Error Diagnostics:
Alarm | Resolution |
|---|---|
Clog Detection | Auto backflush |
Air Inclusion | Vacuum degas prompt |
Solvent Adhesive Package (GP-230X):
? ATEX Zone 2 Certified (II 3G Ex nA IIC T4) ? VOC Capture Hood (85% efficiency) ? Grounded Conductive Path (<10? Ω) ? NFPA 77 Static Control
Food/Pharma Grade Option:
FDA 21 CFR 175.105 Compliant
EHEDG-R1 Cleanability
USP Class VI Seals
Metric | Manual Dispensing | GP-210 | Savings |
|---|---|---|---|
Adhesive Waste | 5-8% | <0.3% | ↓94% |
Output Consistency | ±15% | ±0.5% | 30x better |
Operator Fatigue | High | Low | 70% reduction |
Changeover Time | 15-20 min | <2 min | ↓87% |
Model | Base Price | Popular Bundle | Bundle Price |
|---|---|---|---|
GP-210 | $7,200 | Standard + 5 Nozzles | $7,800 |
GP-220H | $9,500 | High-Visc + Heated Barrel | $10,300 |
GP-230X | $11,800 | Solvent-Safe + VOC Hood | $13,200 |
Value-Added Services:
Free: 2-Hour Video Training
Optional: On-Site Setup ($850)
