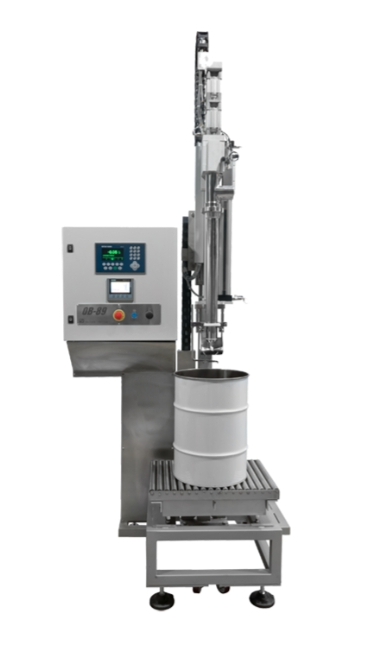

This filling unit is capable of filling any kind of liquids -even foaming liquids, into containers, drums and tanks with wide and narrow openings. For cans from 4 to 60, Kgs.Easily disassembled head ,
Gravimetric Varnish Filling Systems
±0.1% Accuracy ? Anti-Skinning ? Color Consistency Mastery
| Parameter | VG-7100 (Standard) | VG-7200X (ATEX) | VG-7300P (Pharma Grade) |
|---|---|---|---|
| Capacity | 1-20L (±0.1%) | 1-20L (±0.15%) | 1-20L (±0.08%) |
| Throughput | 50 cans/hour | 45 cans/hour | 42 cans/hour |
| Accuracy | ±0.1% gravimetric | ±0.15% | ±0.08% |
| Viscosity Range | 50-500,000 cP | 100-300,000 cP | 5-50,000 cP |
| Filling Technology | Coriolis Mass Flow | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Skin Prevention | N? Blanketing (O?<0.3%) | Ultrasonic Agitation | Pulsed Flow + O? Scavenger |
| Bubble Control | Vacuum Degassing (-0.8 bar) | Laminar Flow Design | Ultrasonic Cavitation |
| Color Consistency | ΔE<0.4 (In-line Spectro) | Same | ΔE<0.3 (Lab-grade) |
| Material Contact | 316L SS + PTFE Lined | Hastelloy C276 | 316L EP (Ra<0.4μm) |
| Residual Oxygen | <0.5% | <0.3% | <0.1% |
| Power | 220V/50Hz, 2.2kW | 24VDC Ex ia | 220V/50Hz, 1.8kW |
| N? Consumption | 30 L/min | 35 L/min | 25 L/min |
| Certifications | CE, ISO 9001 | ATEX Zone 2 | FDA 21 CFR 175.300 |
Performance Metrics:
| Varnish Type | Skin Reduction | Technology |
|---|---|---|
| Polyurethane | 98.7% | Micro-Environment Control |
| Alkyd Resin | 97.5% | O? Scavenger Injection |
| Water-Based | 99.1% | Argon Blanketing |
| Technology | Function | Performance |
|---|---|---|
| Vacuum Degassing | -0.8 bar @ 40°C | <0.05% Air Entrainment |
| Coanda Nozzle | Adhesion Flow Path | Zero Turbulence |
| Pressure Cycling | Microbubble Collapse | 99.8% Bubble Elimination |
Furniture & Wood Coatings
| Feature | Specification |
|---|---|
| Gloss Retention | ΔGU<1.5 (ISO 2813) |
| Ambering Prevention | UV-Filtered Path (385nm cutoff) |
| Grain Enhancement | Low-Shear Flow |
Automotive Clearcoats
Metamerism Control:
D65/D50 Light Simulation
ΔE<0.4 Color Consistency
Fast-Cure Compatibility:
| Parameter | Performance |
|---|---|
| IR Curing Support | Path Heating to 60°C |
| VOC Compliance | Carbon Adsorption (95%) |
Marine & Yacht Finishes
| Challenge | Solution |
|---|---|
| Blushing Prevention | Dehumidified Air Curtain (RH<35%) |
| Salt Spray Resistance | 316L SS Construction |
| Flow-Leveling | Self-Healing Nozzle Design |
10" HMI with VarnishOS?
AI-Driven Features:
Skin Risk Prediction:
| Parameter | Action |
|---|---|
| Temp Drop >2°C | Preheat Activation |
| Humidity >75% | Dehumidifier Boost |
Color Shift Alert:
| Anomaly | Resolution |
|---|---|
| ΔE>0.5 | Auto Flow Adjustment |
| Pigment Settling | Ultrasonic Agitation |
? ATEX 2014/34/EU (VG-7200X) ? FDA 21 CFR 175.300 ? CE EN 60204-1 ? ISO 9001:2015
| Metric | Conventional Filler | VG-7100 | Improvement |
|---|---|---|---|
| Accuracy | ±1.5-3% | ±0.1% | 15-30x better |
| Skin Formation | 5-12% after 24hr | <0.1% | ↓99% |
| Color Variance | ΔE 1.2-2.5 | ΔE<0.4 | ↓67-84% |
| Output | 25 cans/hour | 50 cans/hour | 100% increase |
APPLICABLE BARREL TYPE
